33 17 008 Replacing rear left or right rubber mount for cross brace

Special tools required:

33 0 191
33 0 195
33 0 196
33 0 192
33 0 193
33 0 194

Necessary preliminary work:

Remove CROSS MEMBER .

Withdrawing rubber mount:

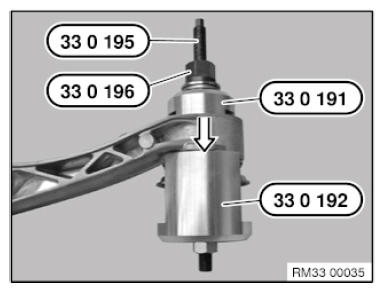

Place special tool 33 0 191 into the recesses on the rubber mount. Pull the rubber mount together with special tools 33 0 195 , 33 0 196 , 33 0 192 out toward the bottom.

Fig 1: Placing Special Tool (33 0 191) Into Recesses On Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rubber mount:

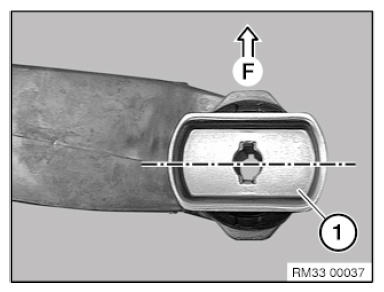

IMPORTANT: Align the rubber mount according to the metal plate (1), perpendicular to the longitudinal direction of the vehicle.

Fig 2: Aligning Rubber Mount According To Metal Plate

Courtesy of BMW OF NORTH AMERICA, INC.

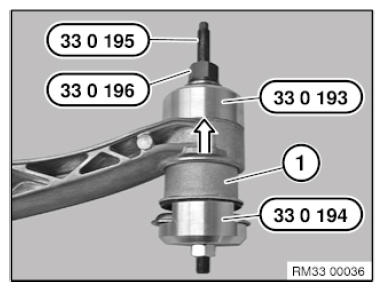

Pull the rubber mount (1) into the cross brace using special tools 33 0 193 , 33 0 194 , 33 0 195 , 33 0 196 toward the top.

Fig 3: Pulling Rubber Mount Into Cross Brace Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
