33 31 012 Removing and installing/replacing rear cross member

Special tools required:

• 33 5 200

Necessary preliminary tasks:

• Remove EXHAUST SYSTEM .

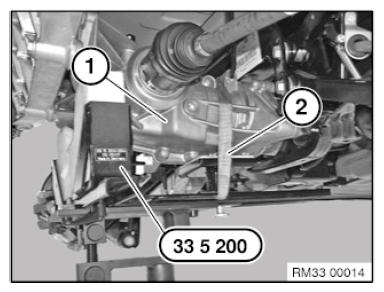

Support rear axle final drive (1) with workshop jack and special tool 33 5 200 .

Secure rear axle final drive against falling out with tensioning strap (2).

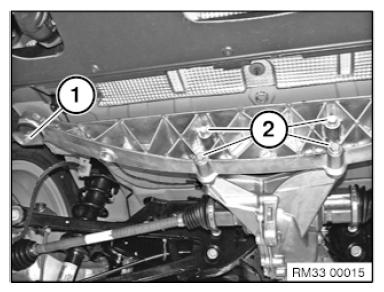

Release screw (1). (right-hand side is identical).

Tightening torque 33 31 2AZ .

Unfasten screws (2).

Tightening torque 33 31 3AZ .

Remove cross member.

Replacement:

• Convert vibration absorber and replace if necessary. (N47T only)
