41 35 101 Replacing rear left side panel

Read contents of SAFETY INFORMATION  and BODY, GENERAL .

STRIP DOWN VEHICLE

Procedure OBSERVE  repair stage 2.

Following new body parts are required:

Following CONSUMABLE  are required:

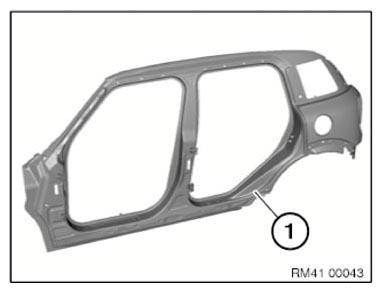

Fig 1: Identifying Outer Side Frame
G11008050Courtesy of BMW OF NORTH AMERICA, INC.
Material Quantity
Adhesive K5b 1
Adhesive K5a 1
Blind rivets N3 6
Punch rivets N4 35
Punch rivets N5 10
EMC screws 3
Cleaning agent R1 1
Cavity sealing wax remover 1
Sealant D1

Removing side panel

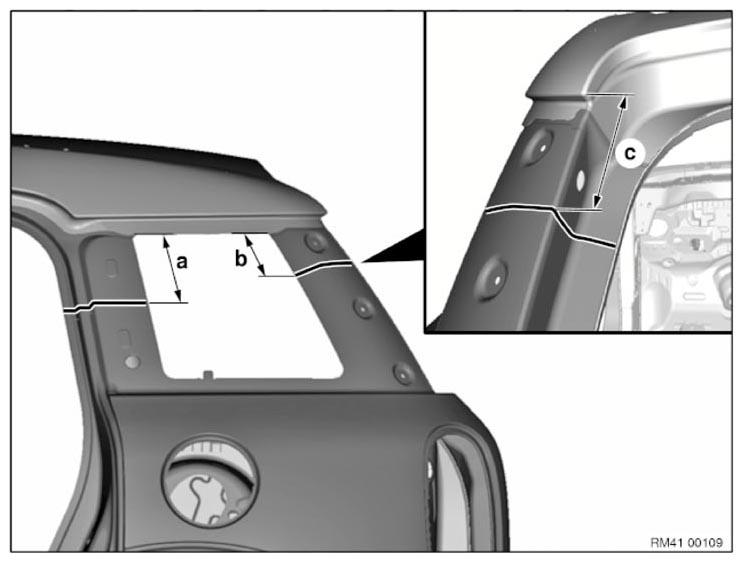

Fig 2: Identifying Roof Skin Component Edge Dimensions
G11008272Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only.

Compare position of severance cuts with REINFORCEMENT PLATES .

Dimension "a" = approx. 135 mm from component edge of roof skin.

Dimension "b" = approx. 115 mm from component edge of roof skin.

Dimension "c" = approx. 125 mm from corner of roof outer skin.

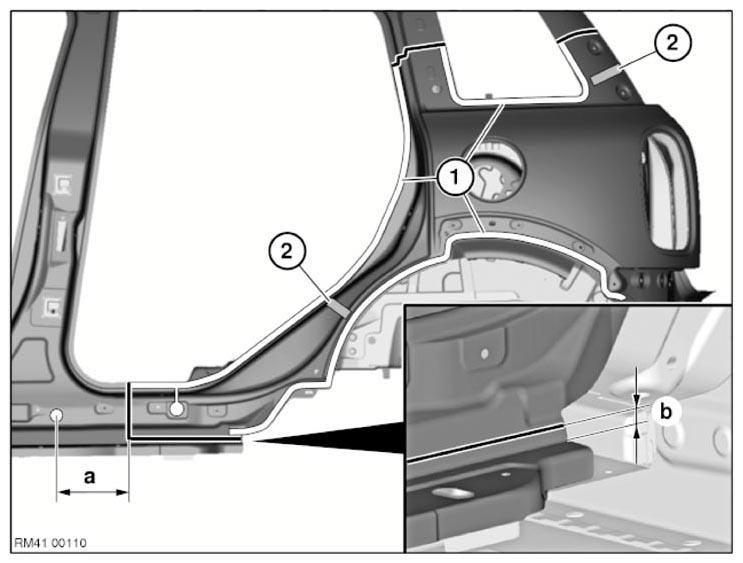

Fig 3: Identifying Sill Outer Edge And Hole Center Point Dimensions
G11008273Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only.

Compare position of severance cuts with reinforcement plates.

Dimension "a" = approx. 185 mm from center point of 20 x 25 mm diameter hole.

Dimension "b" = approx. 20 mm from outer edge of sill.

Open welded connections in areas (1).

Release side wall from cavity sealing (2).

Open welded connections in areas (1) and (2).

IMPORTANT: Detach welding spots from side wall.

Take off side panel.

Fig 4: Identifying Side Wall Welded Connection Areas
G11008274Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Cut new part on sill outer edge (1).

Mark severance cut (2) and the other severance cuts according to vehicle and cut.

Open weld joint in area (3).

Prepare REINFORCEMENT PLATES  (bonded) at all severance cuts.

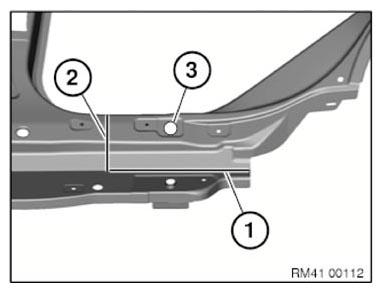

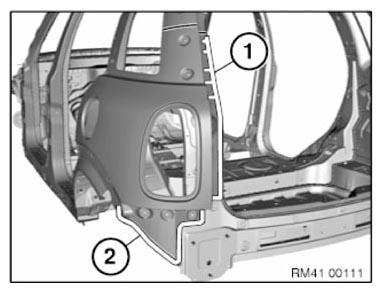

Fig 5: Identifying Sill Outer Edge, Severance Cut, And Welded Joint
G11008275Courtesy of BMW OF NORTH AMERICA, INC.

View of D-pillar:

(1) Reinforcement plate, D-pillar

(2) Reinforcement plate, universal

Adjust universal reinforcement plate (2) in area of water channel.

In the universal reinforcement plate, introduce a recess (3) of approx. Ø 20 mm.

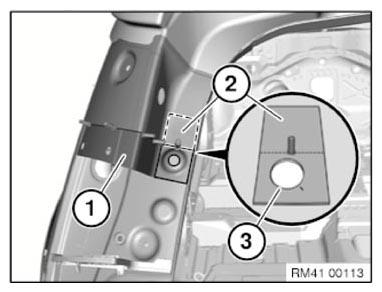

Fig 6: Identifying Recess In Universal Reinforcement Plate
G11008276Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new part to fit and secure.

Set three 4.2 mm dia. holes for blind rivets in area (1).

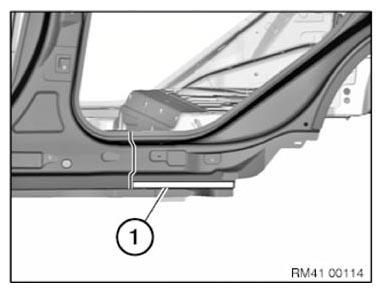

Fig 7: Identifying Area For Setting Blind Rivet Bore Holes
G11008277Courtesy of BMW OF NORTH AMERICA, INC.

Set three 4.2 mm dia. holes for blind rivets in area (1).

Remove new part again and deburr bore holes.

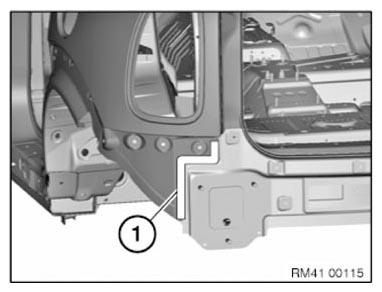

Fig 8: Identifying Area For Setting Blind Rivet Bore Holes
G11008278Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not grind/sand new part in area of bonding surfaces.

Installing side wall

Clean all  bonding surfaces on vehicle, on the new part and on the reinforcement plates with cleaning agent R1.

Apply adhesive to reinforcement plates. Install reinforcement plates.

NOTE: When installing reinforcement plates, make sure there is sufficient adhesive on bonding surfaces.

Apply adhesive in area (1).

Apply sealant to CAVITY ACOUSTIC BAFFLES  in areas (2).

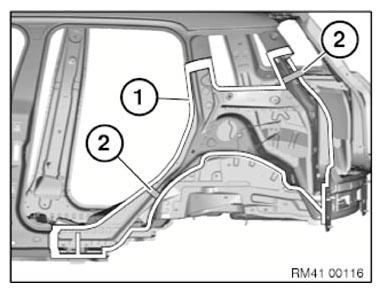

Fig 9: Identifying Adhesive Application Area And Sealant Application Areas
G11008279Courtesy of BMW OF NORTH AMERICA, INC.

Install side panel with a second person helping.

NOTE: When installing side panel, make sure there is sufficient adhesive on bonding surfaces.

After adjusting side wall to fit, tighten nuts of reinforcement plates.

Secure side wall in area of reinforcement plates with gripping pliers.

Rivet side panel with blind rivets N3.

Use N5  punch rivets in areas (1) and (6).

Use N4  punch rivets in areas (2) to (5).

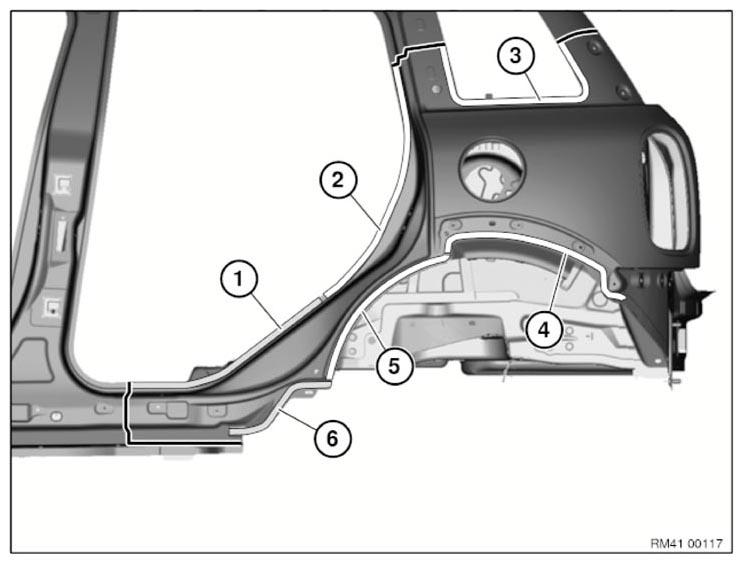

Fig 10: Identifying Punch Rivet Areas
G11008280Courtesy of BMW OF NORTH AMERICA, INC.
Area Number Remarks
1 6 Punch rivet N5
2 8 Punch rivet N4
3 8 Punch rivet N4
4 6 Punch rivet N4
5 3 Punch rivet N4
6 4 Punch rivet N5
IMPORTANT: Risk of damage.

In area "a", the rivet tool may only be used in the interior of the vehicle.

Dimension "a" = approx. 350 mm.

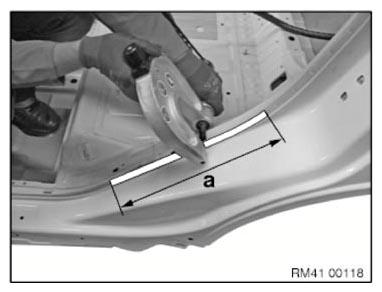

Fig 11: Identifying Rivet Tool Area
G11008281Courtesy of BMW OF NORTH AMERICA, INC.

Use 7 N4 punch rivets in area (1).

Use 3 N4 punch rivets in area (2).

IMPORTANT: In area (1), the punch rivets must be set from the side wall.

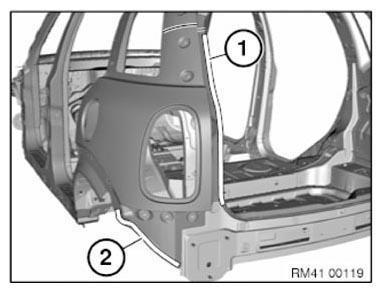

Fig 12: Identifying Punch Rivet Areas
G11008282Courtesy of BMW OF NORTH AMERICA, INC.

Remove excess adhesive.

IMPORTANT: Do not use any cleaning agents containing solvents.

After hardening of the adhesive, install two EMC SCREWS  in the areas (1).

Additionally, install one EMC screw in sill area (2).

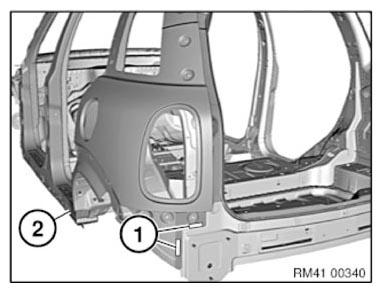

Fig 13: Identifying Installation Area For EMC Screw
G11008283Courtesy of BMW OF NORTH AMERICA, INC.
