41 12 535 Replacing luggage compartment floor and both side members (tail panel removed)

Read contents of SAFETY INFORMATION  and BODY, GENERAL .

Strip down vehicle. See STRIPPING OPERATIONS  or STRIPPING OPERATIONS (ALL-WHEEL DRIVE VEHICLE) .

Spot-weld bonding is used on this vehicle.

Observe specific procedure: See SPOT-WELD BONDING STEEL COMPONENTS  or OPENING BONDED CONNECTIONS .

Place vehicle on straightening bench.

Observe procedure for (REPAIR STAGE 3) .

Following new body parts are required:

Following CONSUMABLE  are required:

Fig 1: Identifying Rear Luggage Compartment Floor
G11008090Courtesy of BMW OF NORTH AMERICA, INC.
Material Quantity
Adhesive K5a 2
Blind rivets N6 16
EMC screws 4
Cleaning agent R1 1
Sealant D1

Removal of luggage compartment floor and both side members

Most of operation is described on the left side. Right side identical.

View from below.

Open spot-welded adhesive joints in area (1)

Remove the luggage compartment floor.

Fig 2: Identifying Luggage Compartment Floor Holes Boring Area
G11008091Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) as pictured and cut.

IMPORTANT: Cut outer panel only.

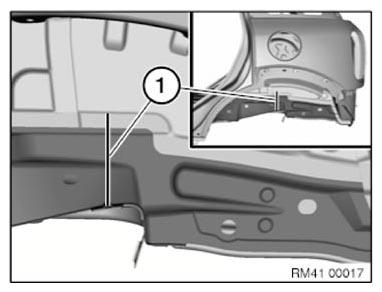

Fig 3: Identifying Severance Cut On Outer Panel
G11008092Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Open spot-welded adhesive joints in area (2)

Installation note:

Weld new components in area (3) additionally.

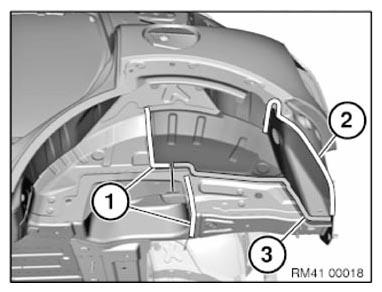

Fig 4: Identifying Side Members Welded Connection Areas
G11008093Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1) and (2).

Remove side member and wheel arch.

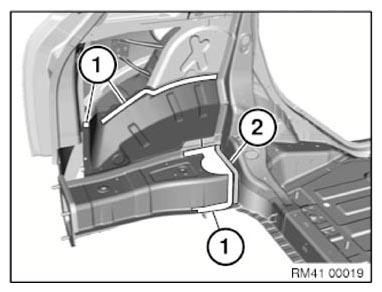

Fig 5: Identifying Side Member And Wheel Arch Welded Connection Areas
G11008094Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Mark severance cut (1) in accordance with vehicle and cut.

IMPORTANT: Cut outer panel only.

Open welded connections in areas (2).

Fig 6: Identifying Severance Cut On Outer Panel
G11008083Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Remove components not needed.

Fig 7: Identifying Outer Panel Welded Connection Areas
G11008084Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove components not needed.

Adjust new parts to fit with alignment bracket or universal mount and secure.

Fig 8: Identifying Alignment Bracket Welded Connection Area
G11008085Courtesy of BMW OF NORTH AMERICA, INC.

Fit luggage compartment floor from underneath and adjust in conjunction with tail panel and secure.

Set 16 4.2 mm dia. bore holes for blind rivets in area (1).

Remove new part and deburr holes.

Fig 9: Identifying Luggage Compartment Floor Holes Boring Area
G11008091Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Do not grind new parts and body in area of bonding surfaces.

Installation of side members, inner wheel arch halves

Install new parts with alignment bracket or universal mount and weld.

Installation of luggage compartment floor:

Clean all  bonding surfaces with CLEANING AGENT R1 .

Apply adhesive to bonding surfaces.

Install new part and rivet with blind rivets

After hardening of the adhesive, install 4 EMC SCREWS  in the areas (1).

Fig 10: Identifying Luggage Compartment Floor Screws Installation Areas
G09947735Courtesy of BMW OF NORTH AMERICA, INC.
