51 34 195 Removing and installing/replacing door window glass in clubdoor

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Remove side trim panel on clubdoor .

IMPORTANT: Secure door window glass (3) against falling out.

Release nuts (1 and 2).

Tightening torque 51 34 1AZ.

Feed out door window glass (3) towards rear and remove.

Fig 1: Identifying Door Window Glass With Nuts

G05517033

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note: Make sure seal (1) is correctly seated on clubdoor. Sealing surface must be clean and free of grease. Replace damaged seal

Fig 2: Identifying Seal

G05517034

Courtesy of BMW OF NORTH AMERICA, INC.

Door window adjustment (overview)

Door Window Adjustment

GAP DIMENSIONS	Distance / Protrusion
x	Distance door window to side window (rear)
y	Protrusion door window to side window (rear)
z	Distance door window to lower roof edge

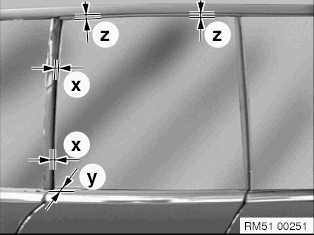

Fig 3: Identifying Gap Dimensions

G00532684

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly loosen nuts (1).

Tightening torque 51 34 1AZ.

Adjust gap dimensions x and z of door window by sliding in the recess (2).

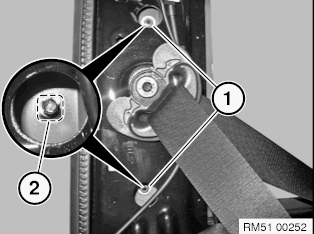

Fig 4: Adjusting Gap Dimensions

G00532685

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not perform this operation until the gap dimensions x and z have been adjusted correctly.

Loosen and adjust nuts (2) until the protrusion y on the door window (1) has been adjusted correctly.

Tightening torque 51 34 1AZ.

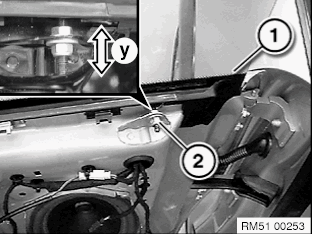

Fig 5: Adjusting Nuts Until Protrusion On Door Window Is Adjusted Correctly

G00532686

Courtesy of BMW OF NORTH AMERICA, INC.
