41 52 022 Adjusting Clubdoor

WARNING: This page is about a different variant/trim than selected.

CAUTION: Do not damage adjoining body parts.
Minor corrections (realignment work) are permitted if the existing adjustment options are not sufficient.
More extensive additional work may result in damage to the door outer surface or cause wind noises.

Observe GAP DIMENSIONS .

Refer to relevant service information in BODY, GENERAL .

The door must be provided with all attachment parts for correct adjustment.

Adjust screwed body parts from rear to front.

When door is closed, lock strikers must not make contact with or brush against door locks. Look out for scratches.

Slacken lock strikers, remove if necessary.

Slacken nuts until door can still just be moved.

Tightening torque 41 52 2AZ

Fig 1: Slacken Nuts Until Door Can Still Just Be Moved

Courtesy of BMW OF NORTH AMERICA, INC.

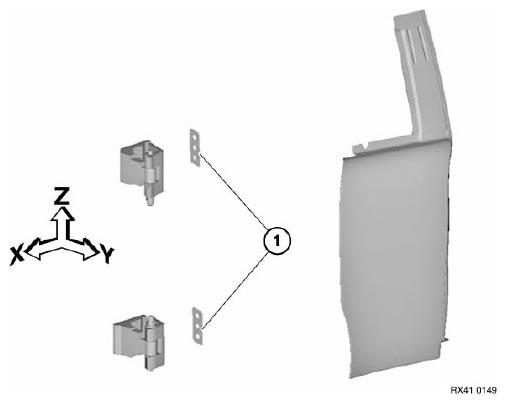

Adjust door in longitudinal direction (X) by fitting shims (1).

Fig 2: Adjusting Door In Longitudinal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust door in transition to side panel laterally (Y) and vertically (Z).

Installation:

To preset new part, carry over number of shims from damaged door.

Check that adjoining body parts are flush in terms of height and correct if necessary.

Fig 3: Locating Adjoining Body Parts

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Adjustment in lateral direction (Y) in front area of door is effected by means of upper and lower door detents (strikers). See TOP CLUBDOOR DETENT (STRIKER) and BOTTOM CLUBDOOR DETENT (STRIKER) .

After installation:

Tighten all screws and nuts to specified torque.
Touch up unpainted surfaces in the appropriate color.
If necessary, ADJUST FRONT DOOR .
