65 12 050 Removing and installing/replacing left or right central bass speaker (under front seat)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) or 52 17 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (COMFORT) .
Remove panel for door pillar. Refer to 51 43 150 REMOVING AND INSTALLING OR REPLACING TRIM FOR LEFT OR RIGHT DOOR PILLAR (BOTTOM) .

Release screws (1).

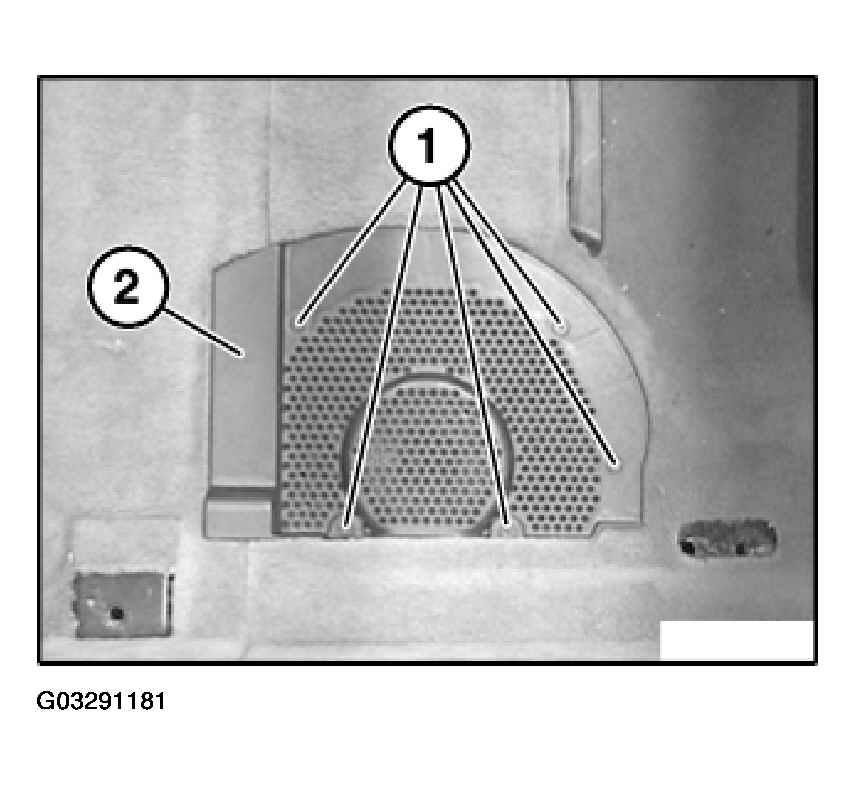

Fig 1: Removing Central Bass Speaker Trim

G03291181

Courtesy of BMW OF NORTH AMERICA, INC.

Remove central bass speaker trim (2).

Fold back floor trims.

Remove clips (1).

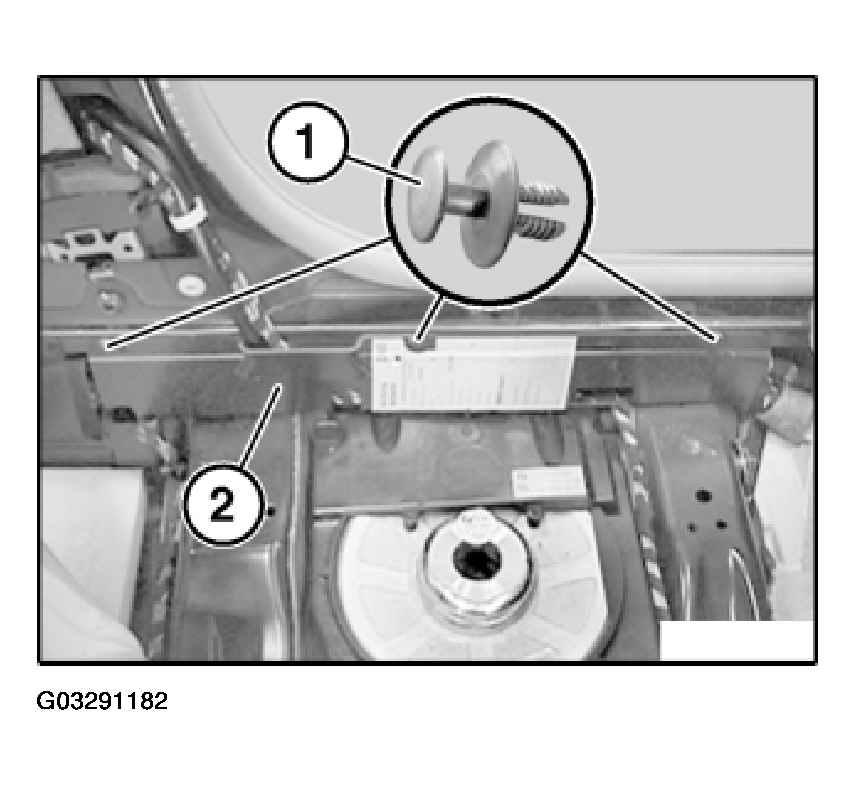

Fig 2: Removing Cable Cover

G03291182

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cable cover (2).

Remove clip (1).

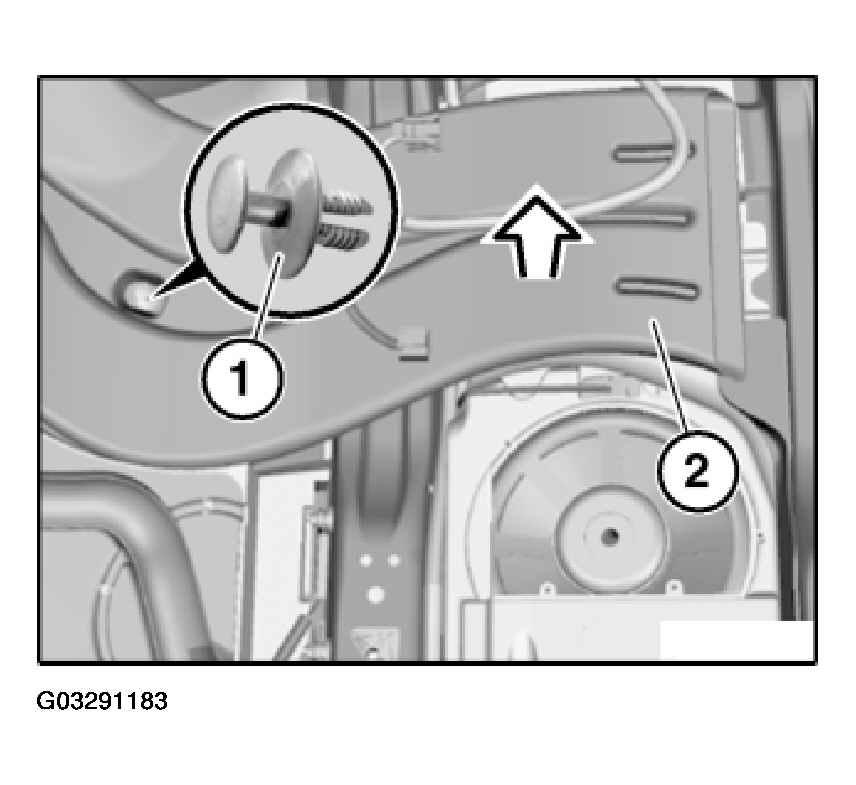

Fig 3: Raising Rear Compartment Heating Duct

G03291183

Courtesy of BMW OF NORTH AMERICA, INC.

Raise rear compartment heating duct (2) slightly in order to remove bass speaker.

NOTE: Rear compartment heating duct shown removed for purposes of clarity.

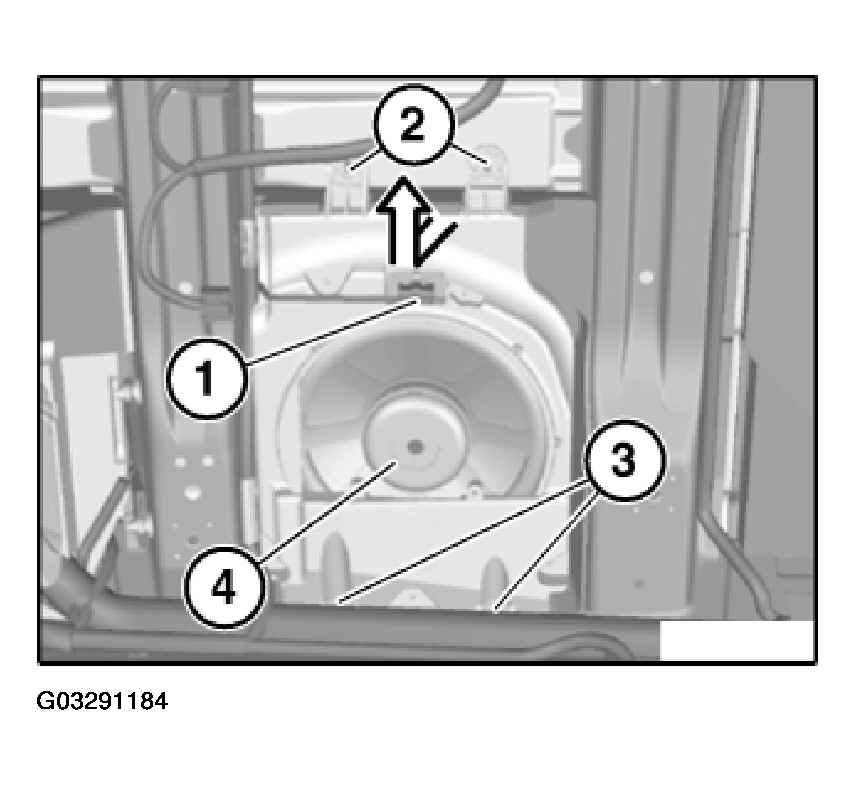

Fig 4: Removing Central Bass Speaker

G03291184

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Release nuts (2) and screws (3).

Feed out central bass speaker (4) in direction of arrow and remove.
