52 14 000 Removing and installing left or right front seat (normal/electric)

Necessary preliminary tasks:

• Remove front head restraint, refer to 52 14 390 REMOVING AND INSTALLING OR REPLACING FRONT LEFT OR RIGHT HEAD RESTRAINTS (NORMAL/ELECTRIC)
• Remove outer cover on front seat, refer to 52 14 040 REMOVING AND INSTALLING/REPLACING OUTER COVER ON FRONT LEFT OR RIGHT SEAT (NORMAL/ELECTRIC)

Switch off ignition!

Adjust front seat as far forward and upward as possible.

Unfasten screws.

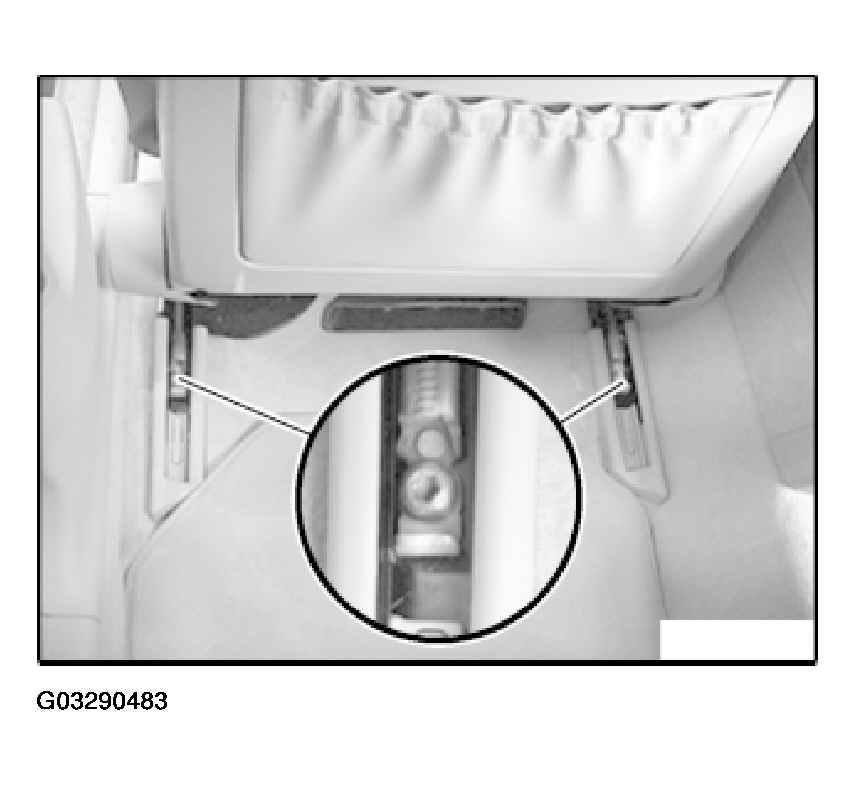

Fig 1: Unfastening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 52 10 1AZ. Refer to SEATS - TIGHTENING TORQUES .

Release screw (1) for belt mounting.

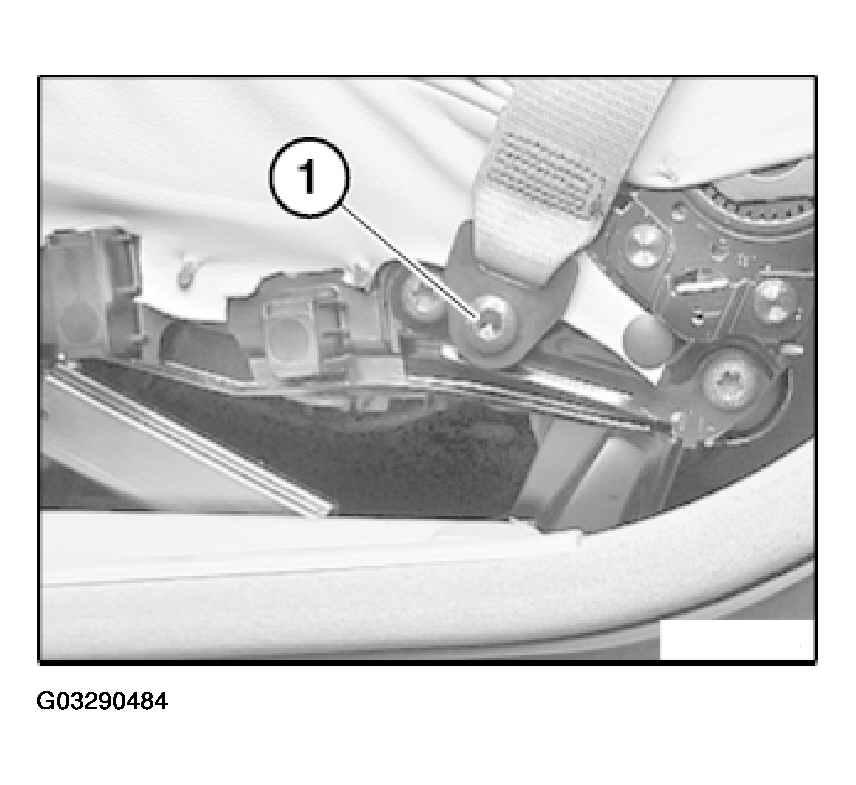

Fig 2: Removing Screw For Belt Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 45 Nm.

Move front seat as far back as possible.

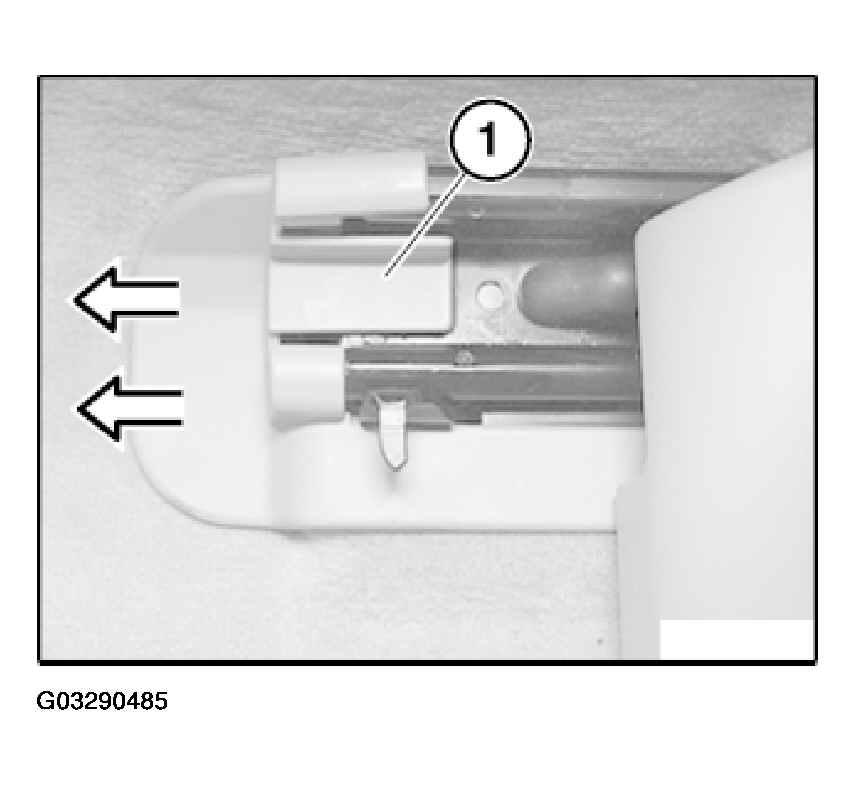

Fig 3: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Raise bridge (1) on front right seat rail cover slightly and unlock.

Pull cover forwards to remove.

Press rocker switch (1) on front left seat rail cover and unlock.

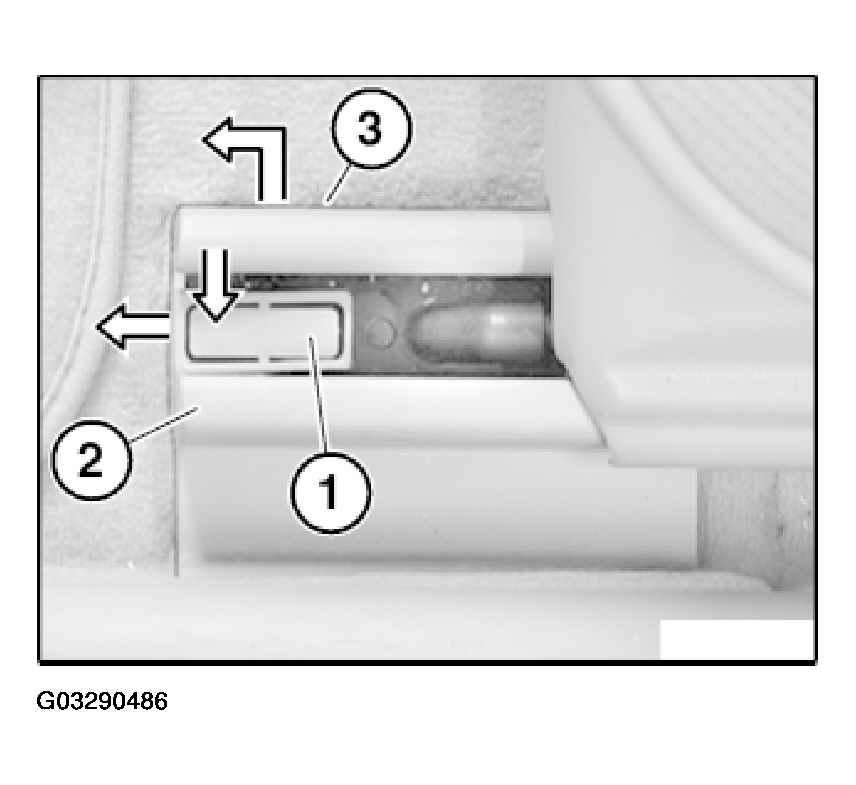

Fig 4: Pressing Rocker Switch On Front Left Seat Rail Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Gently slide cover (2) towards front.

Carefully unlock inside edge (3) from inside.

Pull cover forwards to remove.

Release front screws on left and right seat rails.

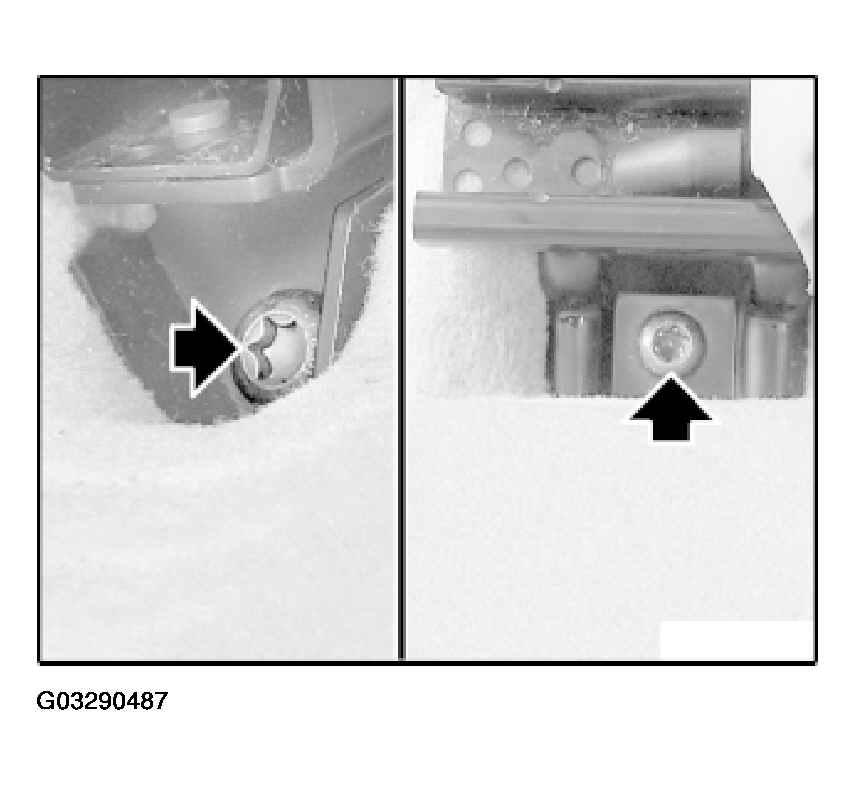

Fig 5: Removing Front Screws On Left And Right Seat Rails

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torques 52 10 1AZ. Refer to SEATS - TIGHTENING TORQUES .

Installation:

Floor carpet must not project between seat rail and floor board in area of screw-down points (grinding noises).

Carefully tip seat towards rear.

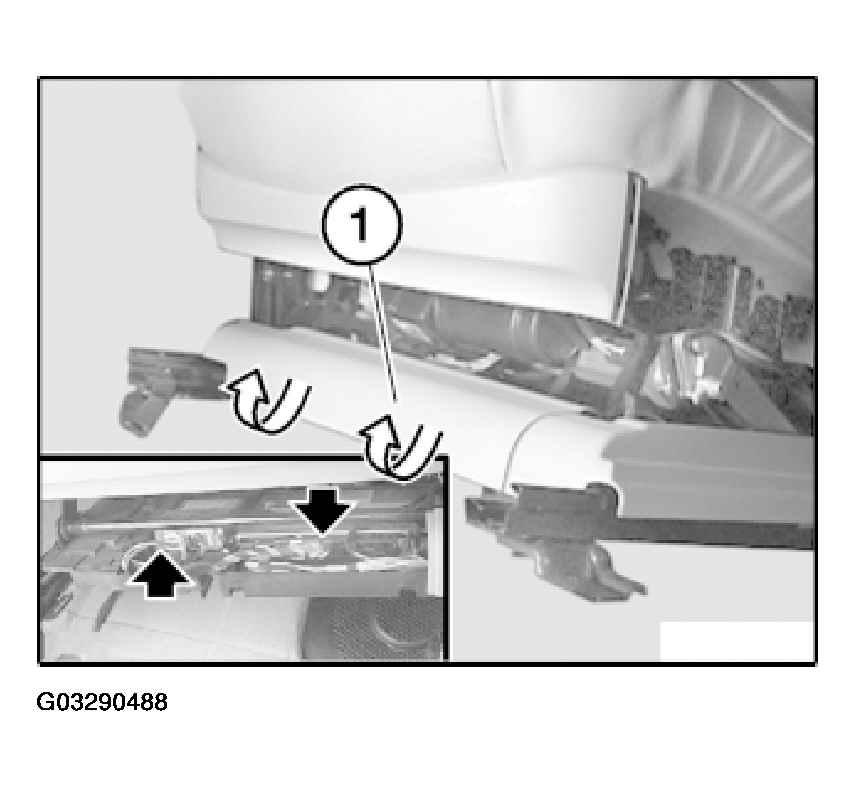

Fig 6: Removing Seat

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip cover (1) towards front.

Disconnect plug connections (yellow and black) on seat modules.

Lift out front seat.
