51 43 150 Removing and installing or replacing trim for left or right door pillar (bottom)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front entrance cover strip, refer to 51 47 000 REMOVING AND INSTALLING / REPLACING ENTRANCE COVER STRIP, FRONT (INSIDE) LEFT OR RIGHT

Release screw (1).

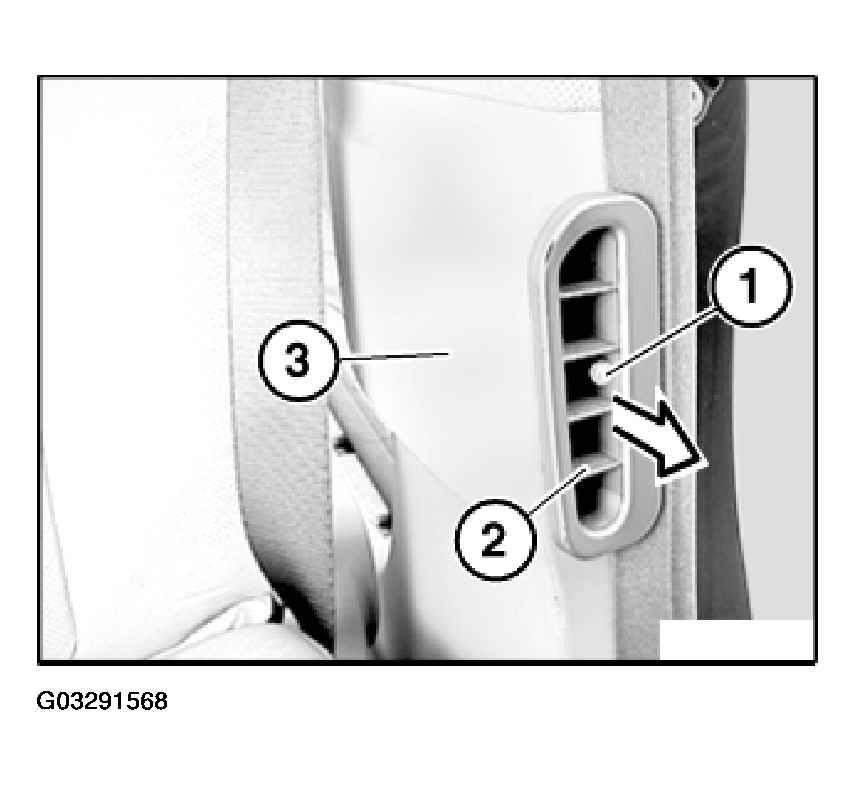

Fig 1: Removing Nozzle

G03291568

Courtesy of BMW OF NORTH AMERICA, INC.

Remove nozzle (2) in direction of arrow from trim (3).

Release screws (1).

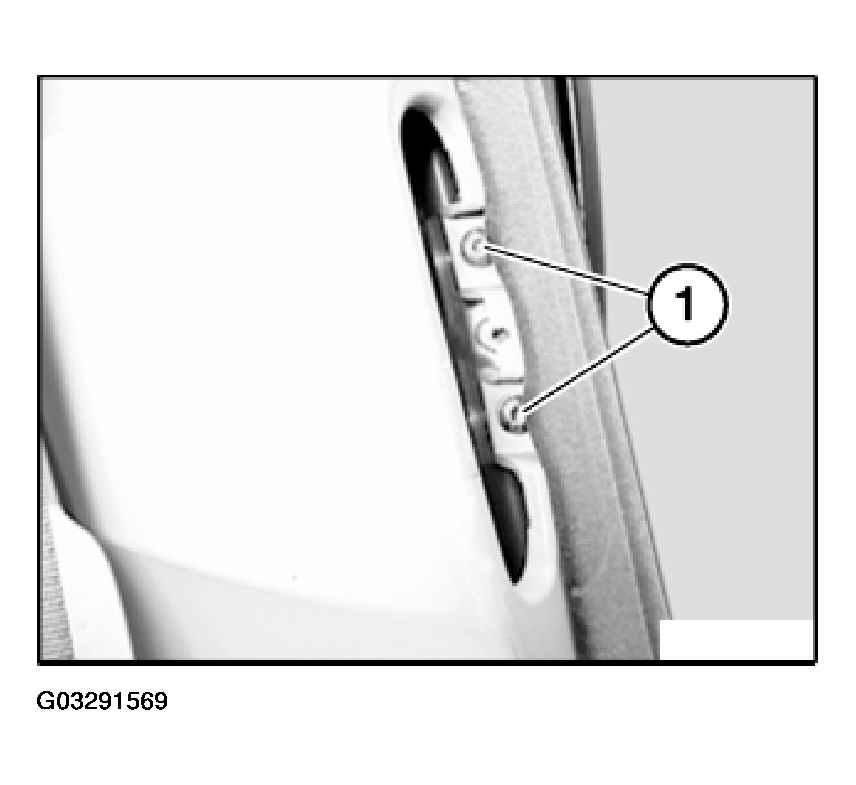

Fig 2: Releasing Screws

G03291569

Courtesy of BMW OF NORTH AMERICA, INC.

Partially detach mucket in area of B-pillar panel.

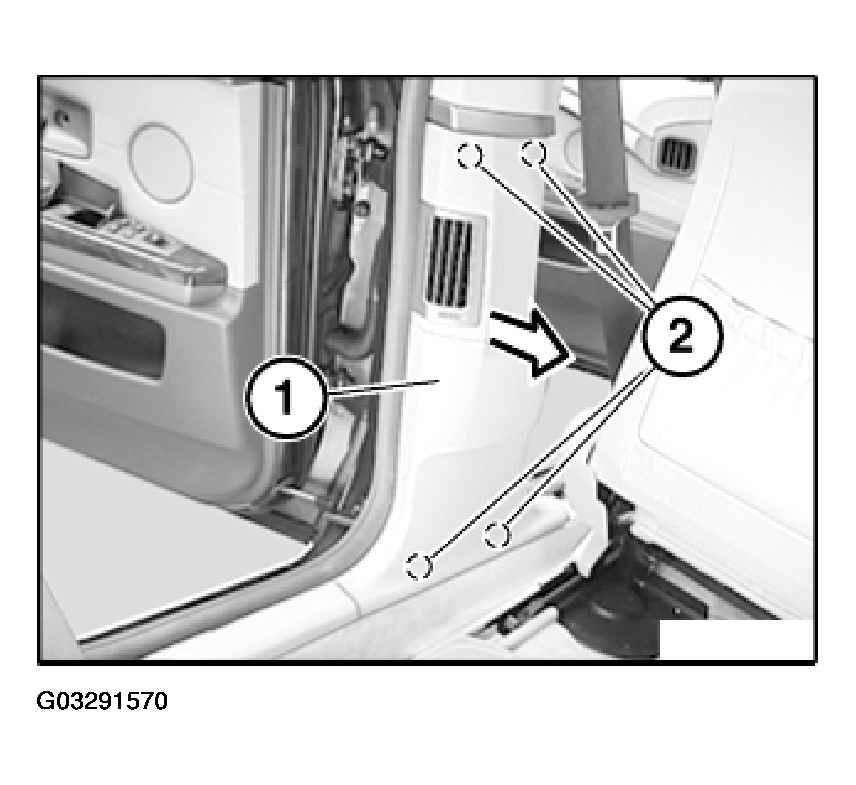

Fig 3: Unclipping Panel

G03291570

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip panel (1) in direction of arrow from B-pillar.

If necessary, lever clips (2) out of grommets in B-pillar.

Installation:

If necessary, replace defective grommets (1).

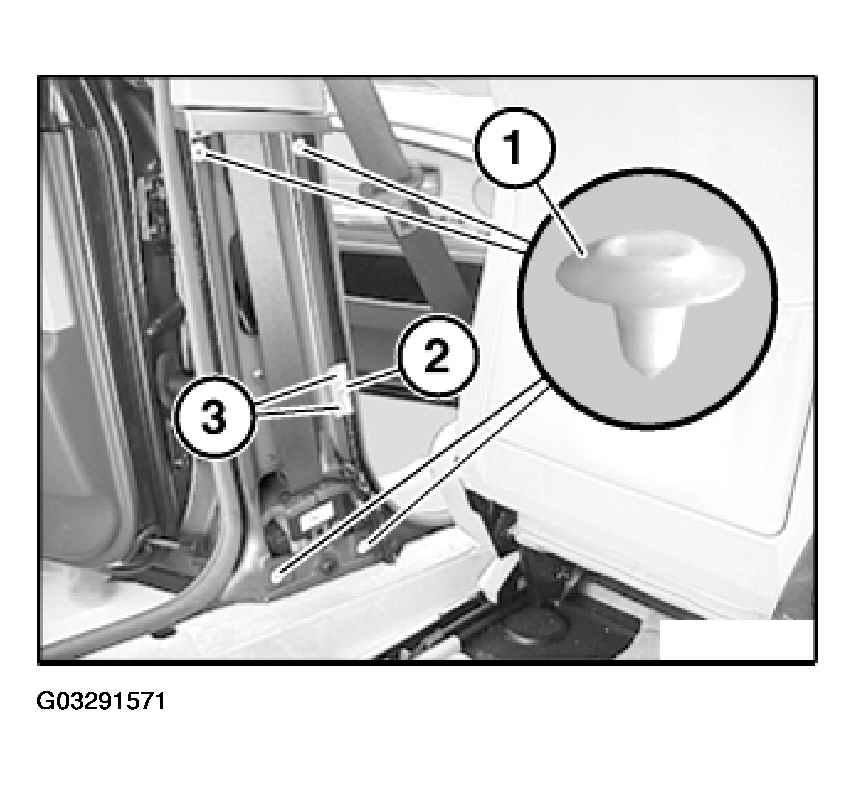

Fig 4: Removing Holder

G03291571

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, release screws (3) and remove holder (2).

Installation:

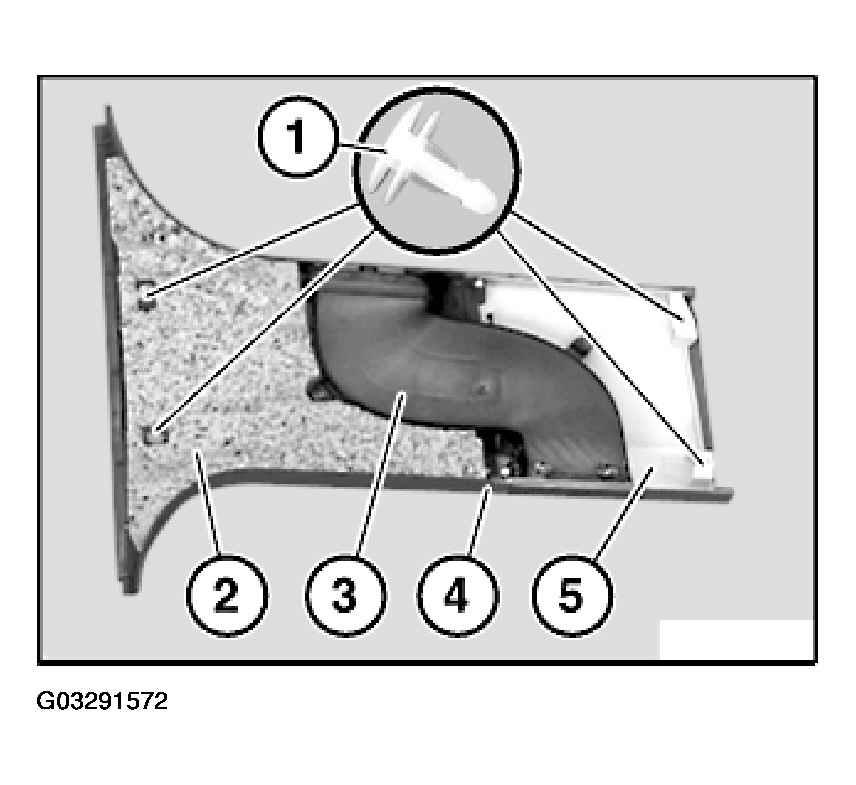

Following parts of panel for door trim (5) must not be damaged or missing:

Clips
Sound insulation
Air duct
Plate

Fig 5: Installing Door Trim
Courtesy of BMW OF NORTH AMERICA, INC.
