52 25 380 Removing and installing/replacing left or right rear head restraint mount

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear head restraint. Refer to 52 25 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT .
Remove trim for armrest at rear. Refer to 52 25 030 REMOVING AND INSTALLING COMPLETE ARMREST FOR REAR SEAT BACKREST .
Remove rear panel on rear seat backrest. Refer to 52 25... REMOVING AND INSTALLING/REPLACING REAR PANEL ON REAR SEAT BACKREST .
If necessary, remove backrest cover for rear seat. Refer to 52 25 410 REPLACING BACKREST COVER FOR LEFT OR RIGHT REAR SEAT .

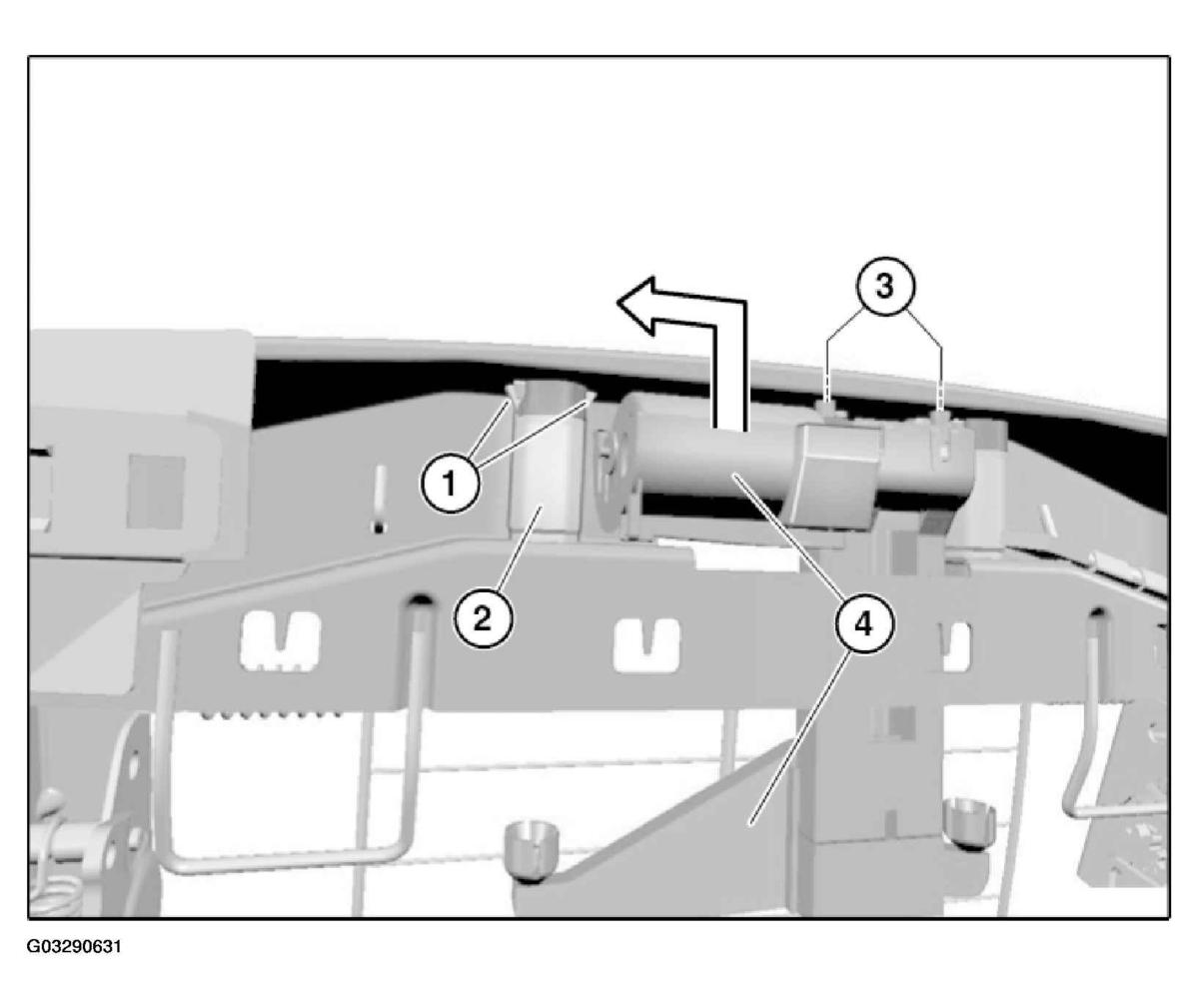

Fig 1: Removing Head Restraint Mount

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Move head restraint fully downwards (otherwise removal of head restraint guide is not possible!).

Disconnect plug connection.

Unlock catches (1) and remove guide (2) on left and right towards top.

Release screws (3).

Tilt head restraint mount (4) in direction of arrow and feed out towards top.
