52 25 410 Replacing backrest cover for left or right rear seat

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317
52 0 050

Necessary preliminary tasks:

Remove rear seat. Refer to 52 25 010 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT REAR SEAT .
Remove rear panel on rear seat backrest. Refer to 52 25... REMOVING AND INSTALLING/REPLACING REAR PANEL ON REAR SEAT BACKREST .

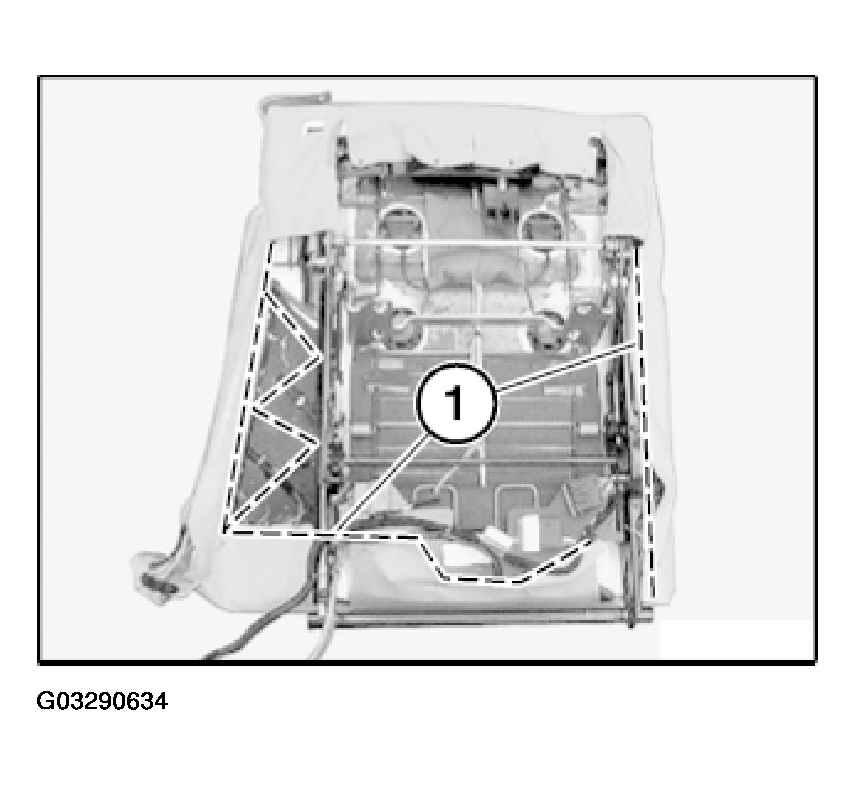

Detach retainers in areas (1).

Fig 1: Removing Retainers From Backrest Cover And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Remove remnants of retainers from backrest cover and/or padding.

Installation:

Bend new retainers closed with pliers 52 0 050.

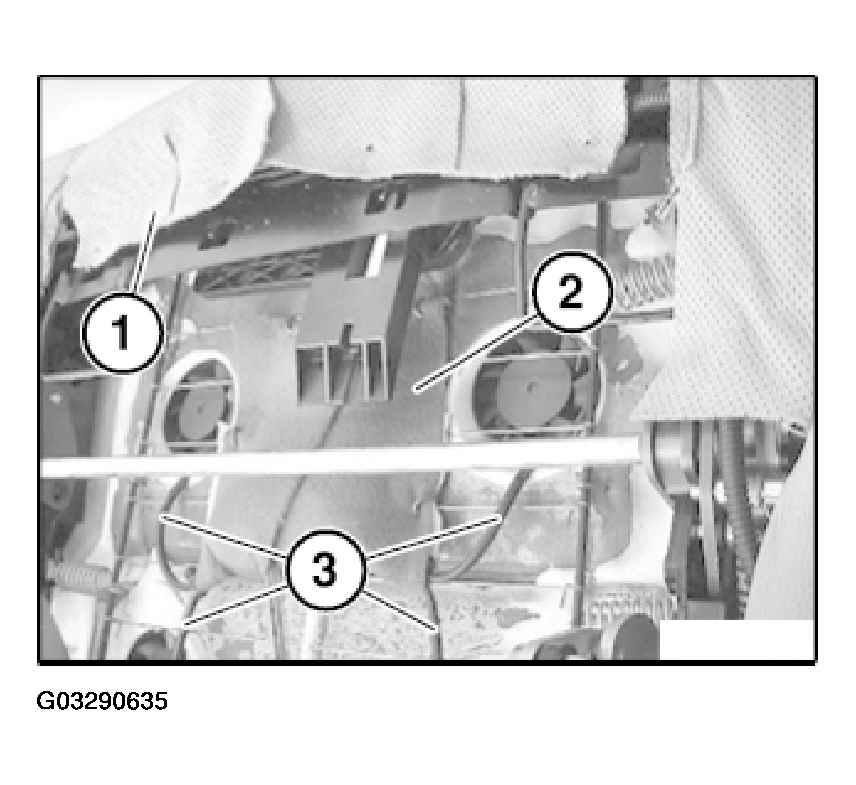

Unhook backrest cover (1) at top.

Fig 2: Removing Cover And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Release retainers on cover (2).

Remove cover (2).

Disconnect plug connections (3).

Remove backrest cover (1) complete with padding.

Remove lumbar cushion.

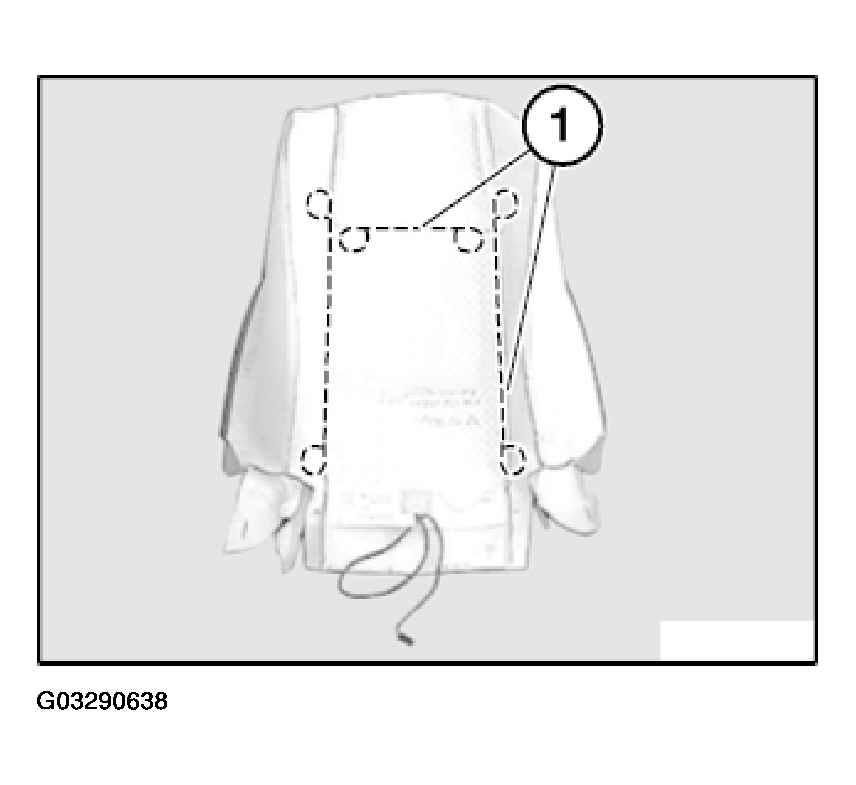

Release retainers in area (1).

Fig 3: Releasing Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Remove backrest cover from padding.

Remove remnants of retainers from backrest cover and/or padding.

Installation:

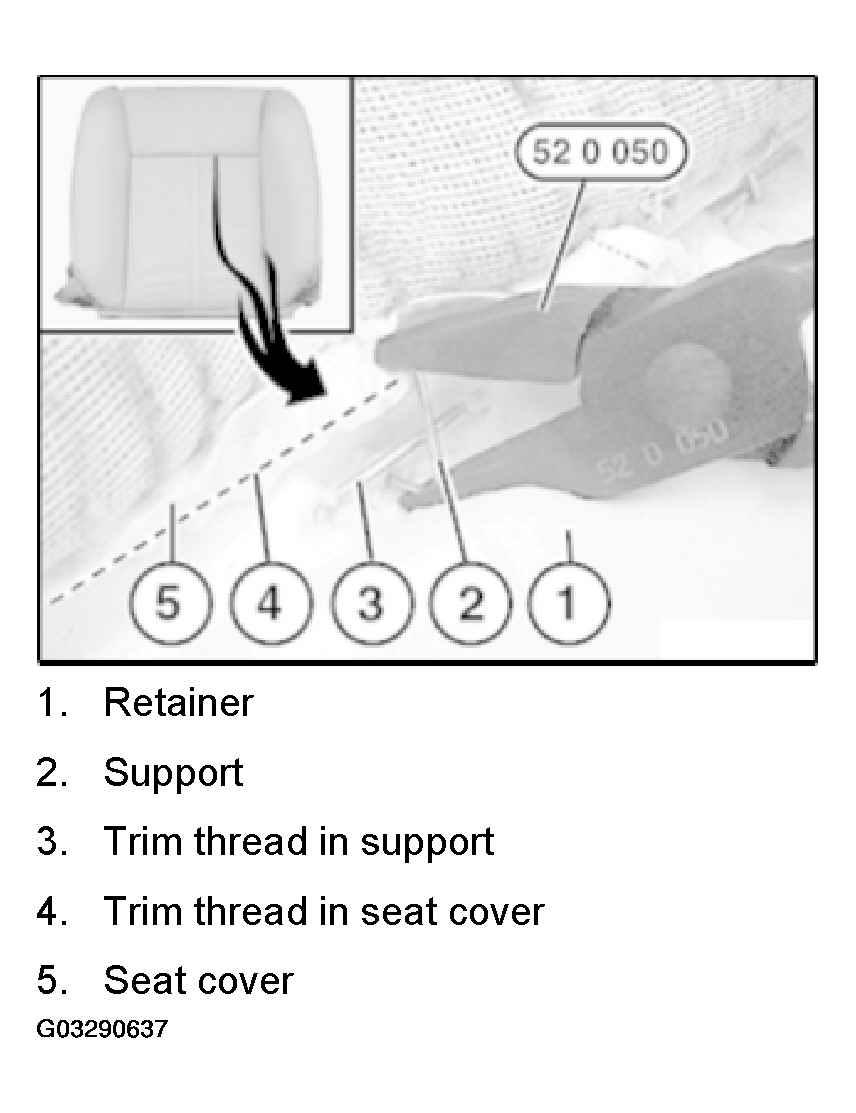

Bend new retainer (2) closed with pliers 52 0 050.

Fig 4: Installing Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

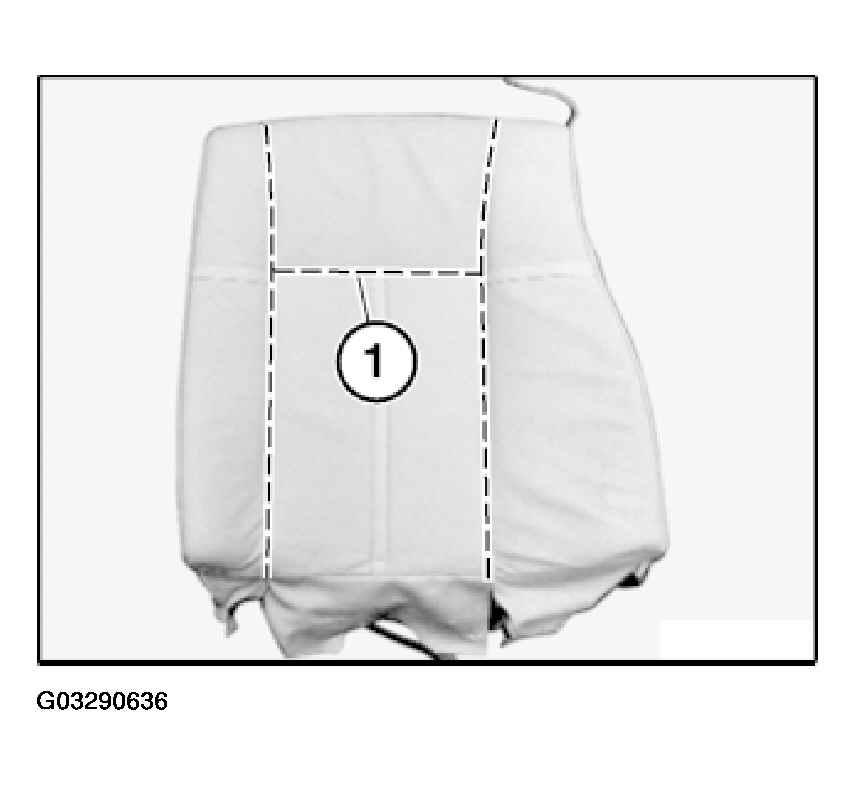

Pull trim threads (1) out of seat cover.

Fig 5: Pulling Trim Threads Out Of Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide trim threads (1) into new seat cover. If necessary, cut mounting for trim threads.

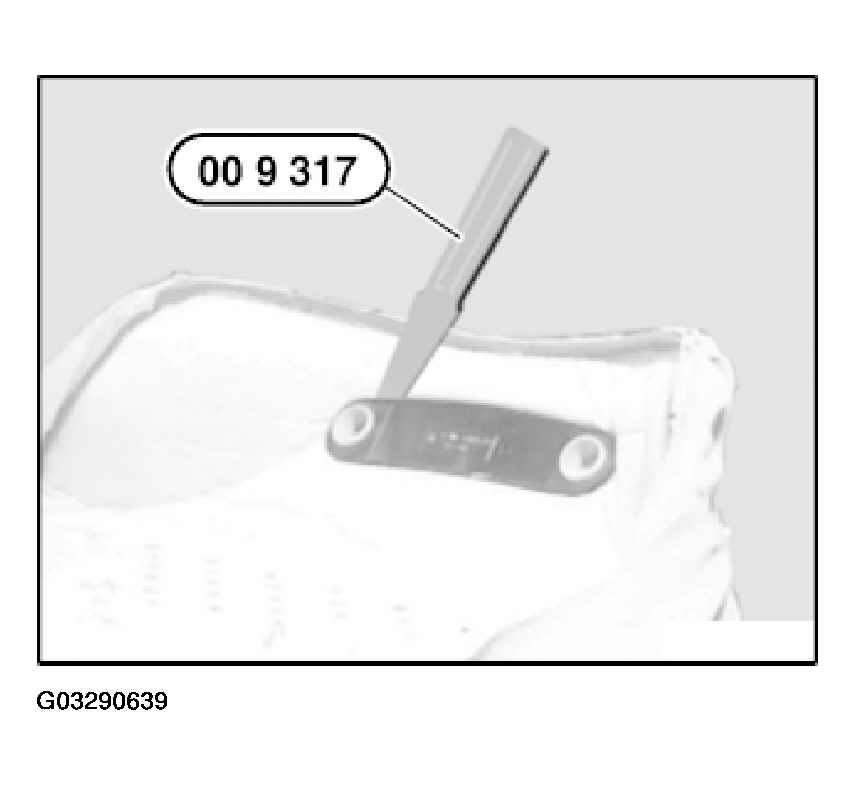

Lever out locking strip of head restraint guide with trim panel wedge 00 9 317.

Fig 6: Removing Locking Strip Of Head Restraint Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount straight front face of head restraint guide towards front.
