52 24 380 Removing and installing/replacing rear left or right head restraint mount (normal)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear seat backrest. Refer to 52 24 015 REMOVING AND INSTALLING/REPLACING BACKREST FOR LEFT OR RIGHT REAR SEAT (NORMAL) .
Remove rear head restraint. Refer to 52 25 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT .
Remove backrest cover for rear seat. Refer to 52 24 410 REPLACING BACKREST COVER (NORMAL) FOR LEFT OR RIGHT REAR SEAT .

Release screws (1) and feed out head restraint mounting (2) towards bottom.

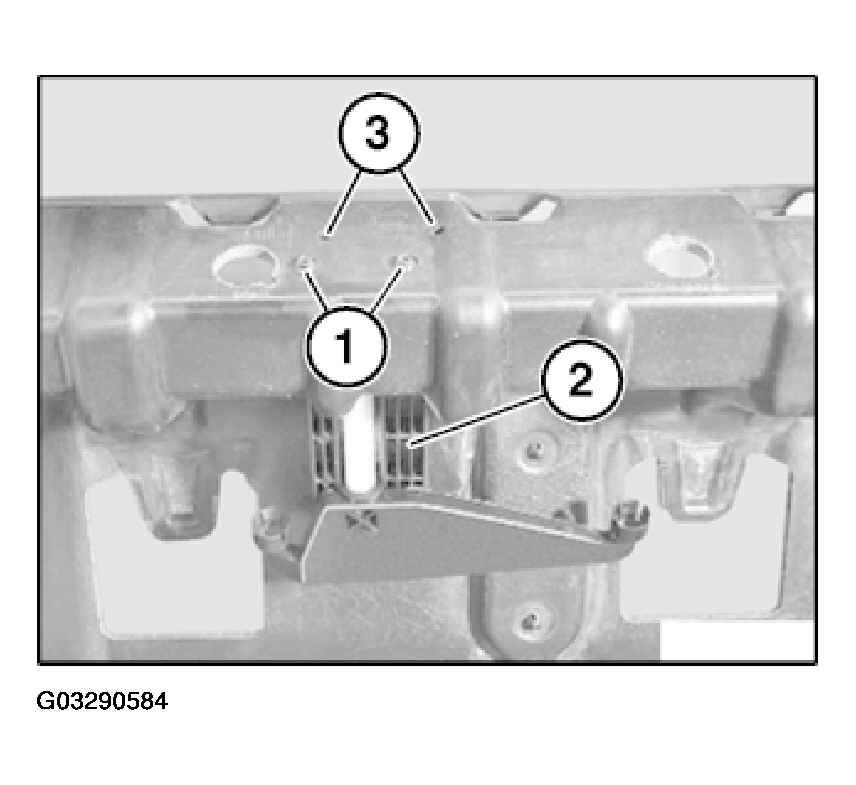

Fig 1: Removing Head Restraint Mounting

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Guide pins of head restraint mount must engage in openings (3) in backrest frame.
