52 24 410 Replacing backrest cover (normal) for left or right rear seat

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

52 0 050

Necessary preliminary tasks:

Remove rear seat. Refer to 52 24 005 REMOVING AND INSTALLING/REPLACING REAR SEAT (NORMAL) .
Remove rear seat backrest. Refer to 52 24 015 REMOVING AND INSTALLING/REPLACING BACKREST FOR LEFT OR RIGHT REAR SEAT (NORMAL) .
Remove rear head restraint. Refer to 52 25 390 REMOVING AND INSTALLING OR REPLACING LEFT OR RIGHT REAR HEAD RESTRAINT .

Unhook backrest cover in areas (1).

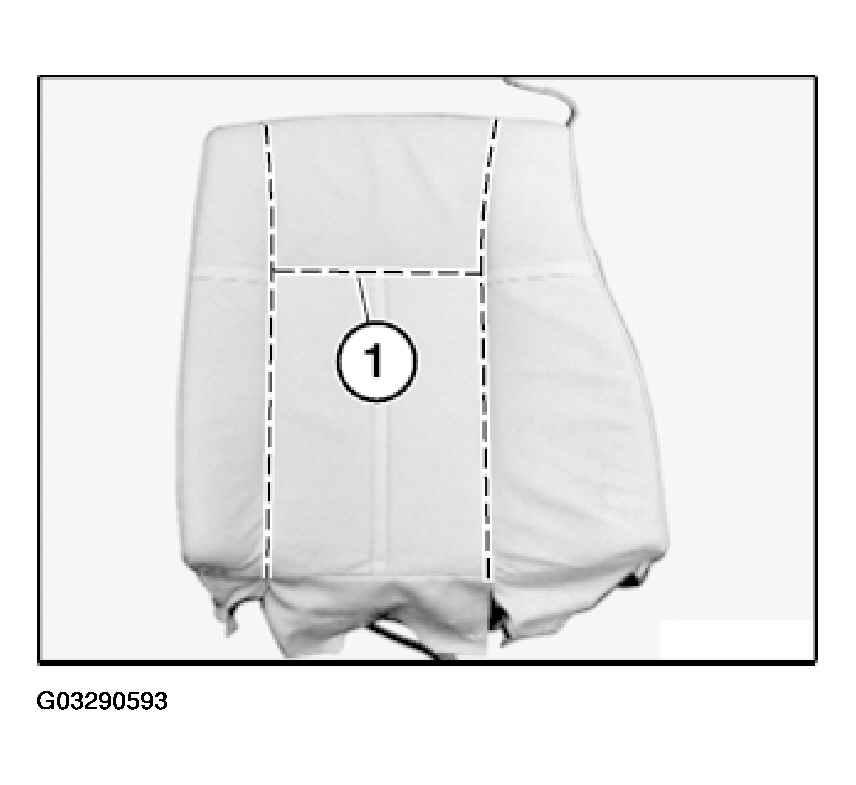

Fig 1: Unhooking Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach retainers in areas (2).

Remove remnants of retainers from backrest cover and/or backrest frame.

Installation:

Bend new retainers closed with pliers 52 0 050.

Unlock catch (1) on rear side of backrest on left and right.

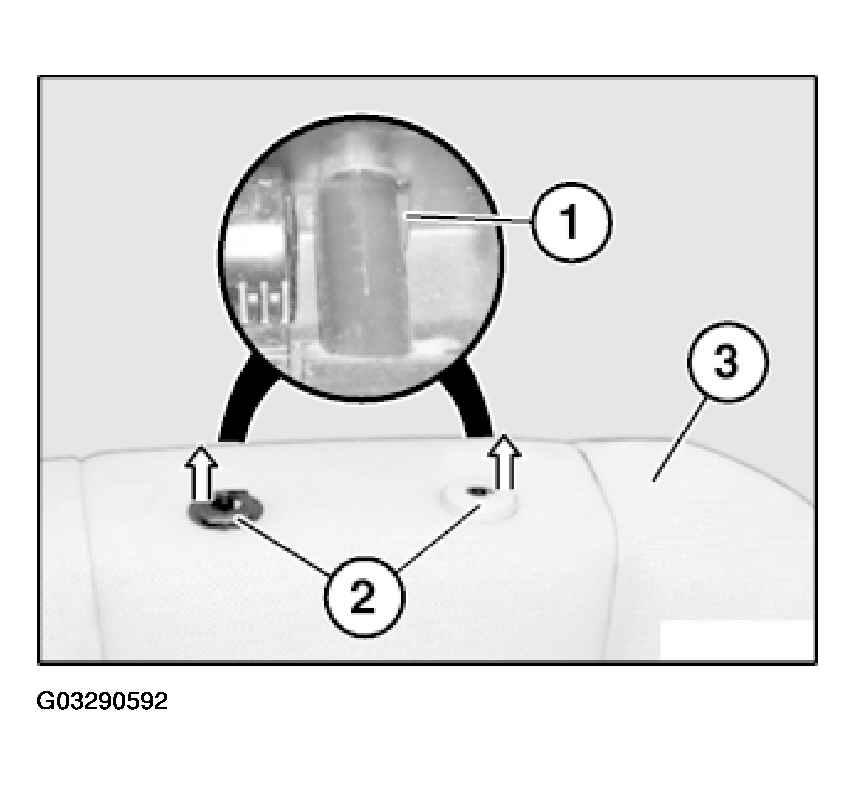

Fig 2: Removing Head Restraint Guides And Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove head restraint guides (2) towards top.

Remove backrest cover (3).

Release retainers in area (1).

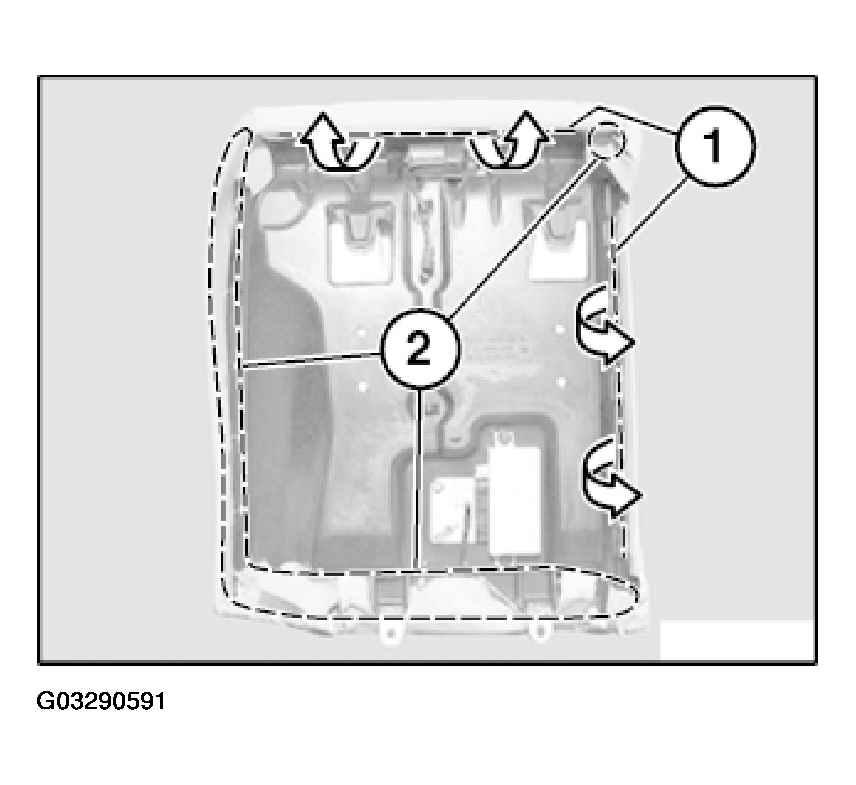

Fig 3: Removing Backrest Cover From Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Remove backrest cover from padding.

Remove remnants of retainers from backrest cover and/or padding.

Installation:

Bend new retainer (2) closed with pliers 52 0 050.

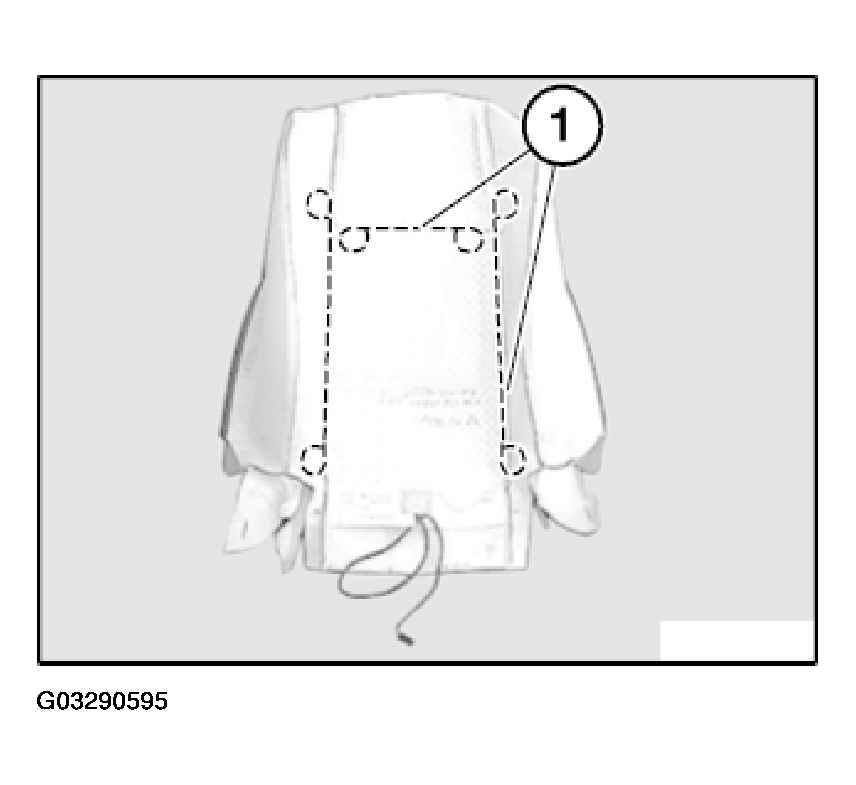

Fig 4: Installing Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Pull trim threads (1) out of seat cover.

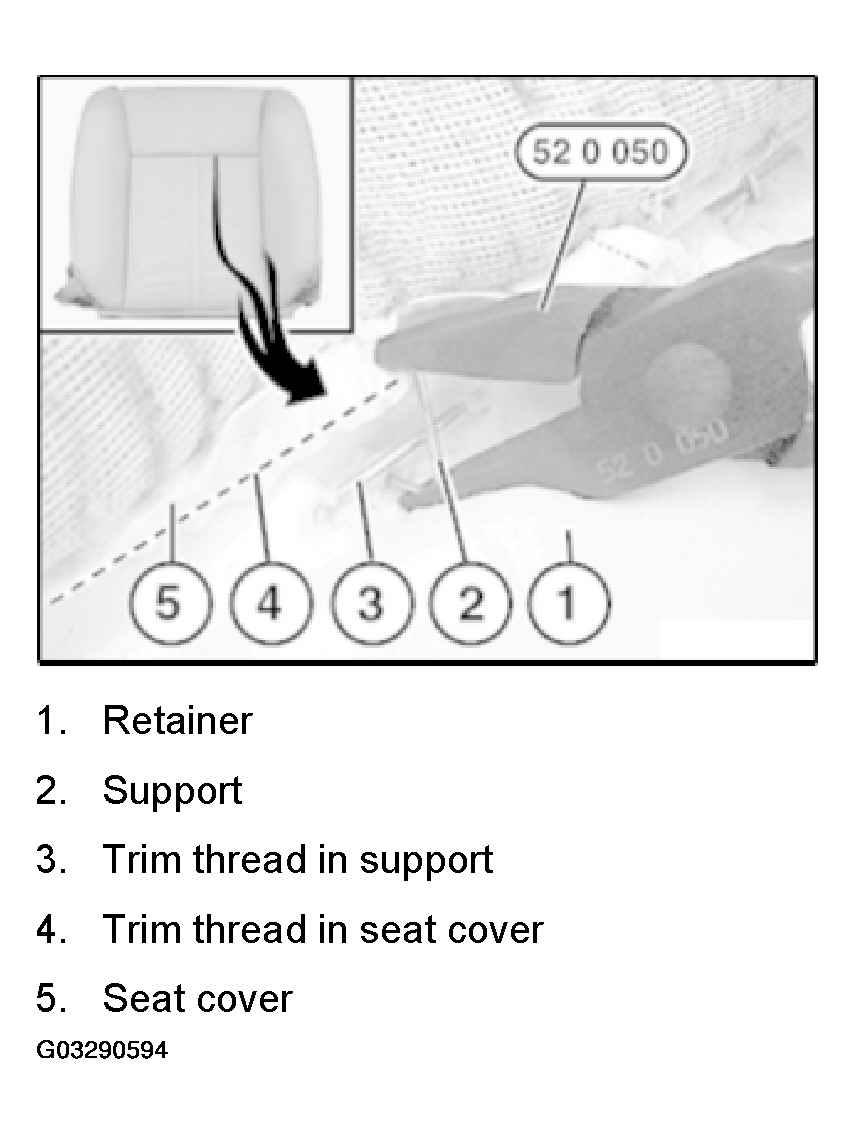

Fig 5: Pulling Trim Threads Out Of Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide trim threads (1) into new seat cover. If necessary, cut mounting for trim threads.
