52 14 405 Replacing backrest cover for front left or right seat (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317
52 0 050

Necessary preliminary tasks:

Remove front seat, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)
Remove rear panel on front seat backrest, refer to 52 14 198 REMOVING AND INSTALLING / REPLACING REAR PANEL ON LEFT OR RIGHT FRONT SEAT BACKREST (NORMAL / ELECTRIC)
Remove inner cover on front seat, refer to 52 14 041 REMOVING AND INSTALLING INNER COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)

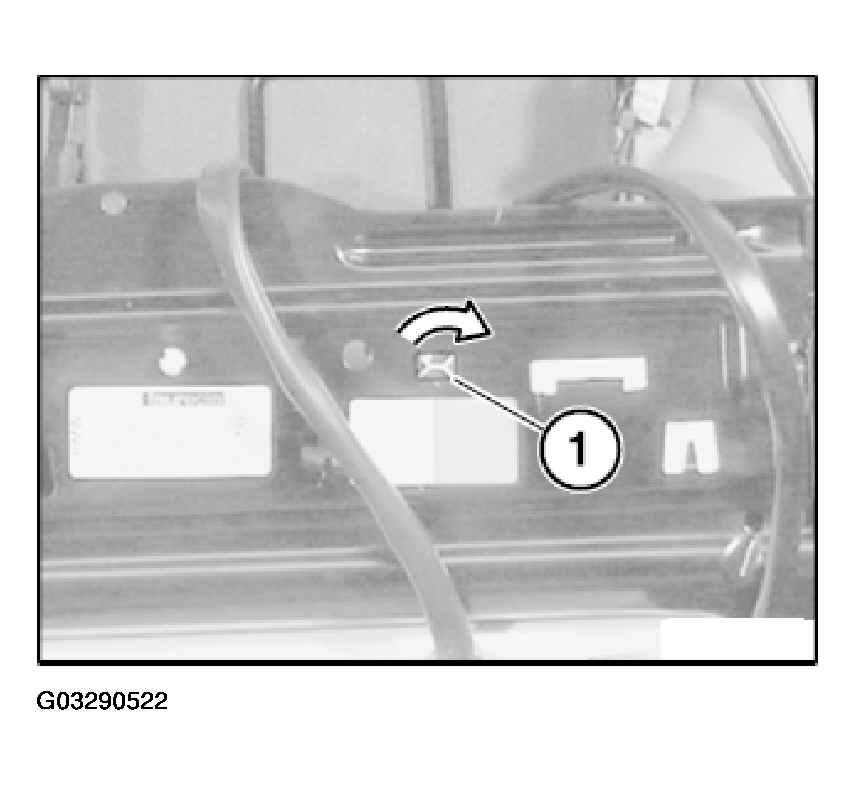

Detach plug connection (1) by twisting from backrest frame.

Fig 1: Disconnecting Plug-In Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug-in connection.

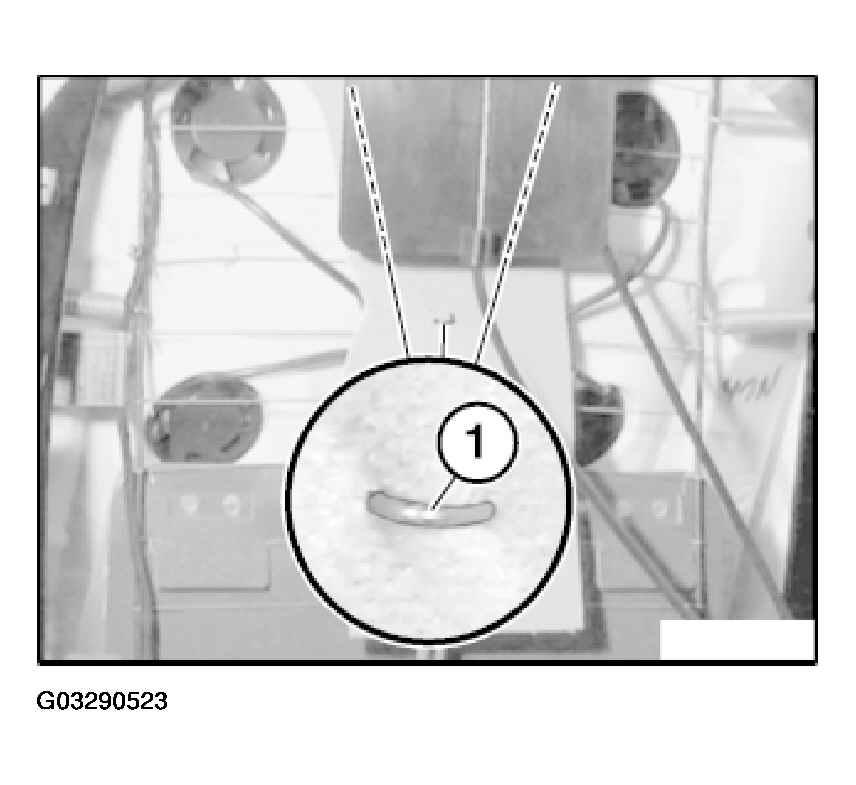

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release all retainers (1) on cover.

Remove cover.

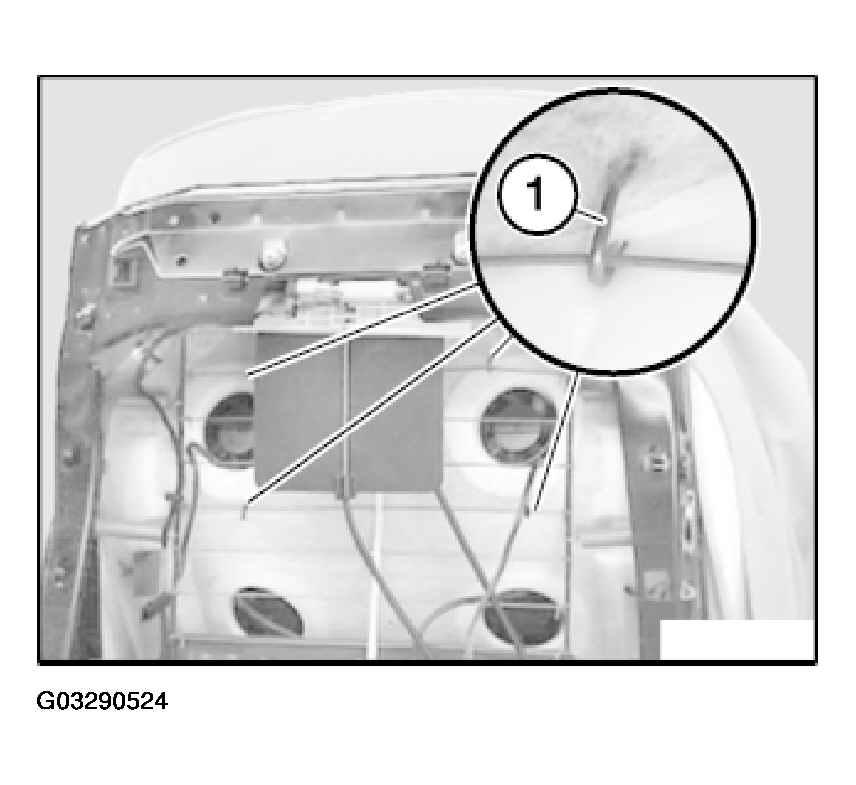

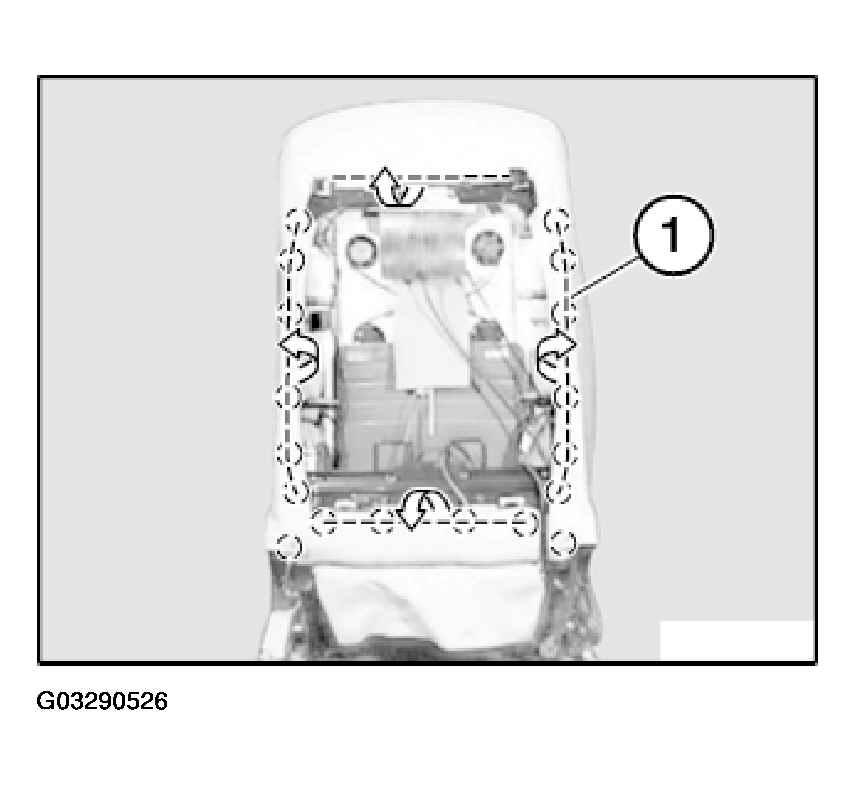

Release all retainers (1).

Fig 3: Removing Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cable tie (1) and wiring harness for fan.

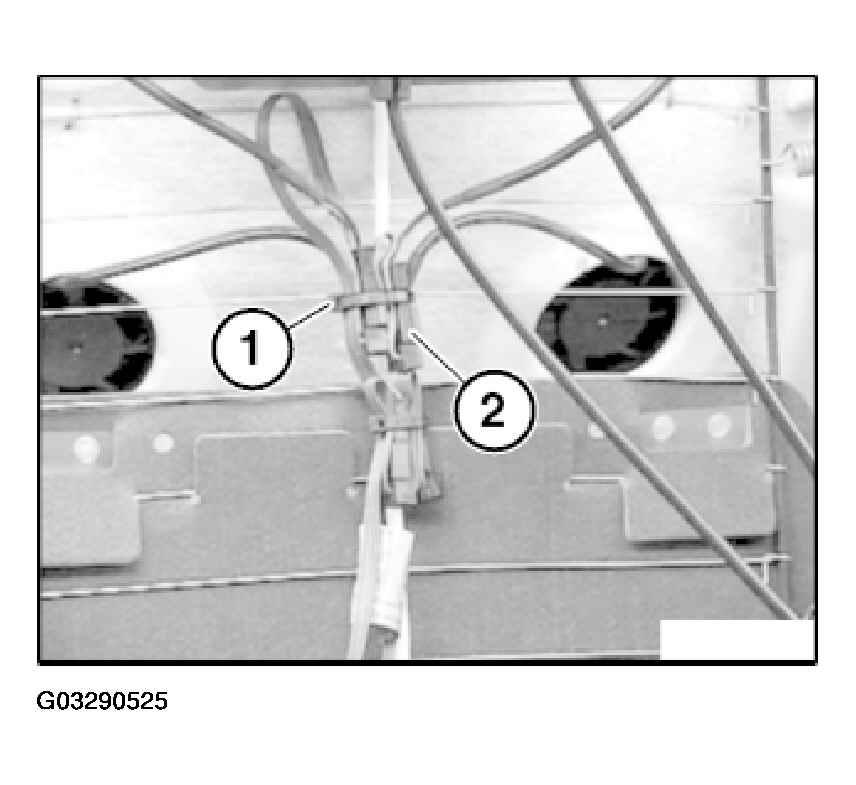

Fig 4: Disconnecting Cable Tie And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (2).

Unhook backrest cover at retaining points in area (1).

Fig 5: Removing Backrest Cover At Retaining Points

Courtesy of BMW OF NORTH AMERICA, INC.

Remove backrest cover with padding from backrest frame towards front.

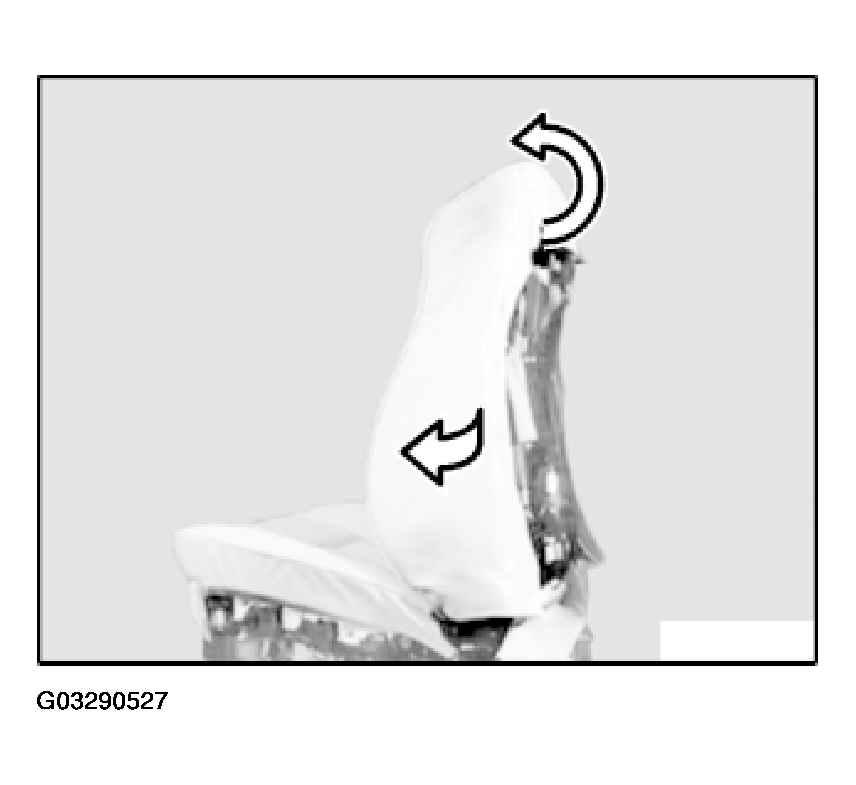

Fig 6: Removing Backrest Cover From Backrest Frame

Courtesy of BMW OF NORTH AMERICA, INC.

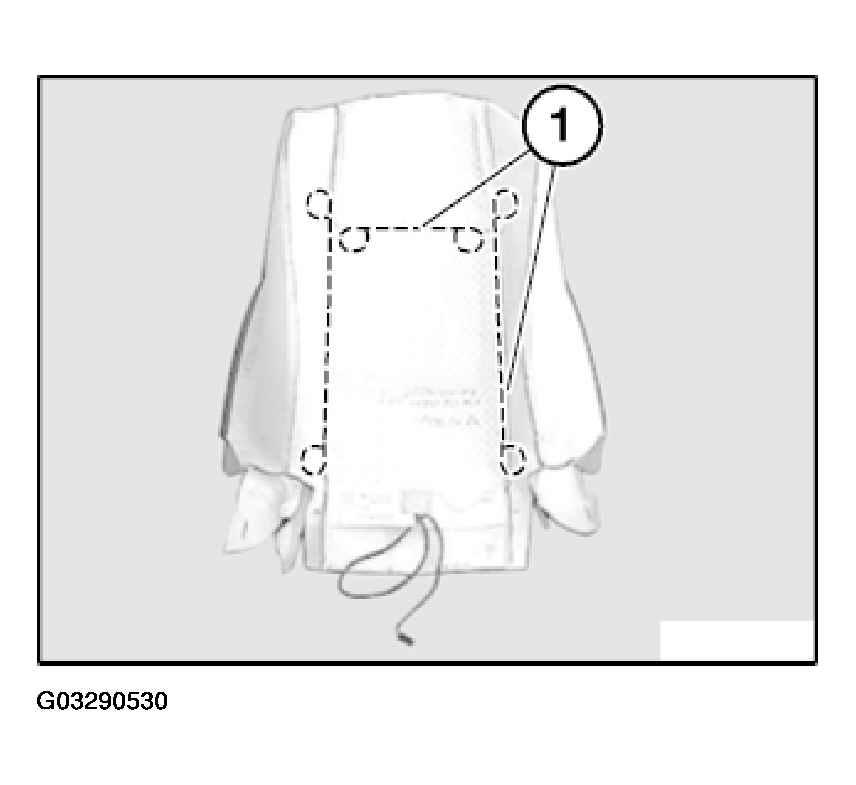

Release all retainers.

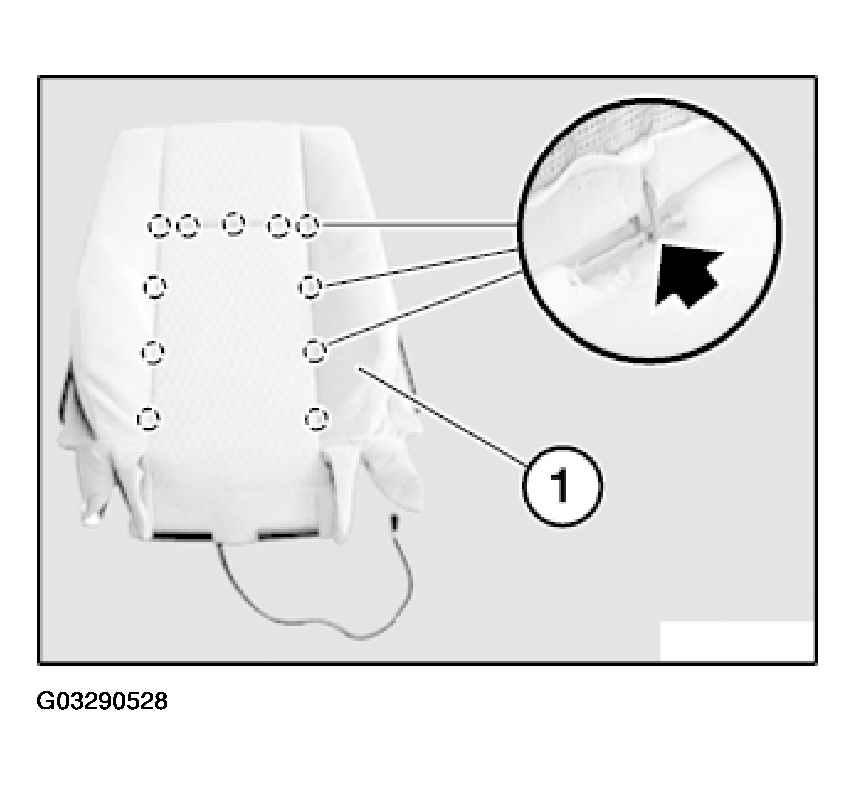

Fig 7: Removing Backrest Cover And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Remove backrest cover (1) from padding.

Remove all remnants of clips from backrest cover (1) and padding.

Installation:

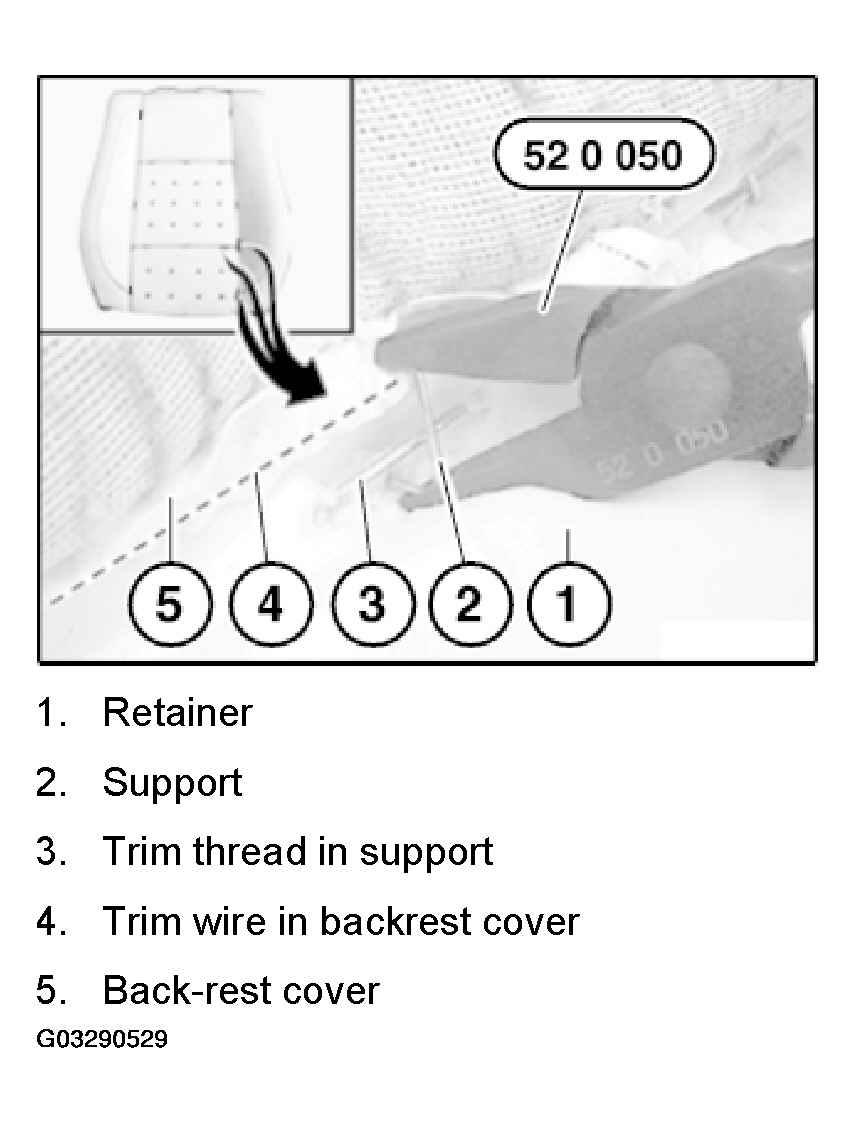

Bend new retainer (2) closed with pliers 52 0 050.

Fig 8: Installing New Retainer

Courtesy of BMW OF NORTH AMERICA, INC.

Pull trim threads (1) out of backrest cover.

Fig 9: Removing Trim Threads Of Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide trim threads (1) into new backrest cover; if necessary, cut new part.

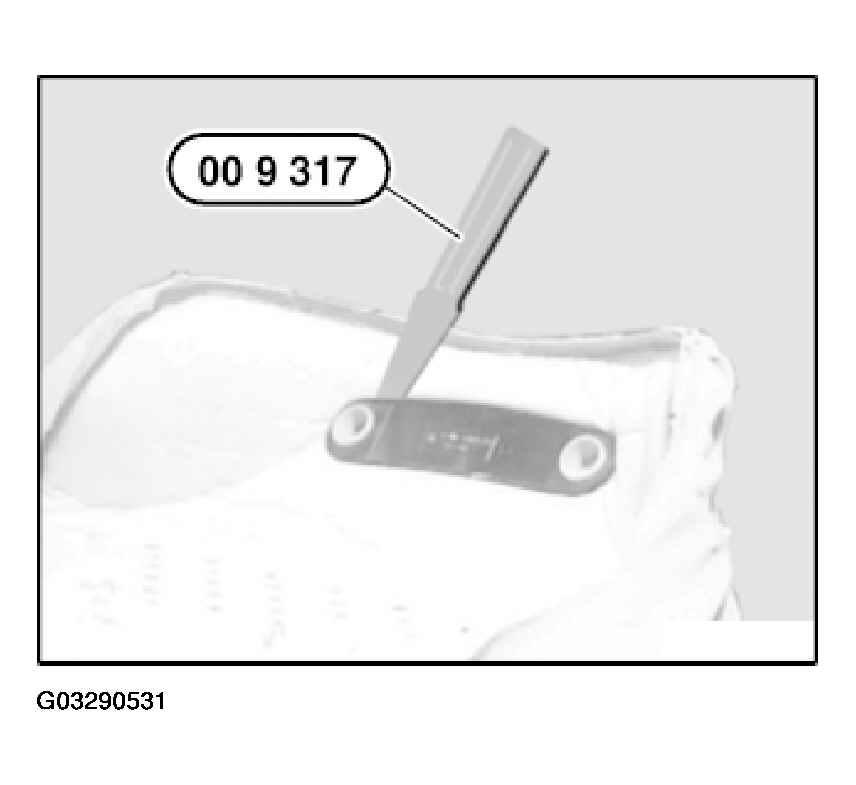

Lever out locking strip of head restraint guide with trim panel wedge 00 9 317.

Installation:

Mount straight front face of head restraint guide towards front.
