52 14 041 Removing and installing inner cover on left or right front seat (normal/electric)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front seat, refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC)

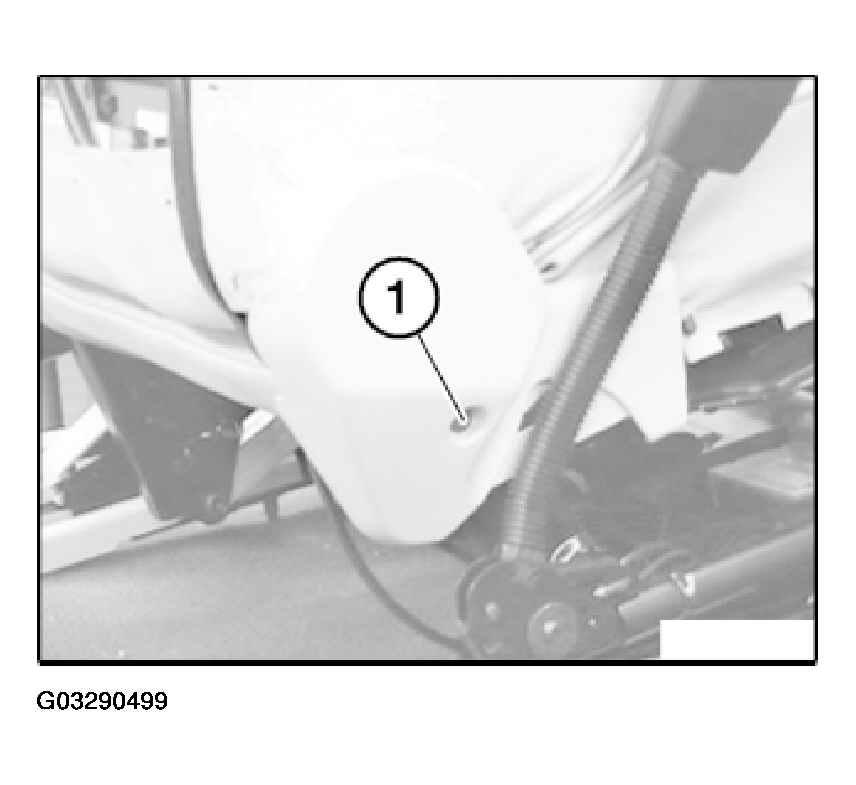

Unscrew bolt (1).

Fig 1: Removing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

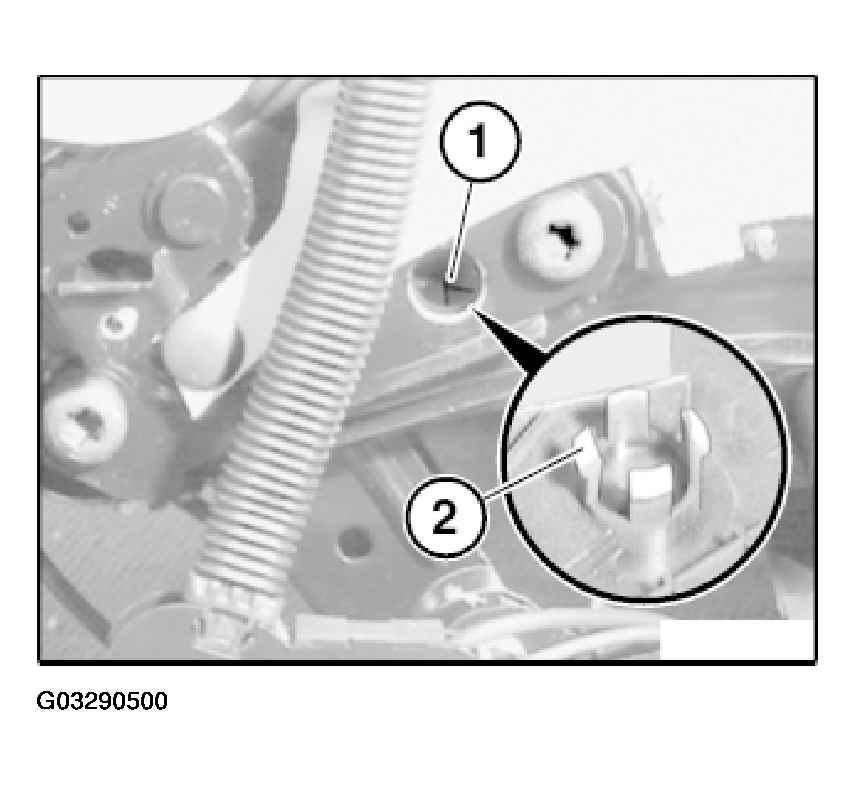

Cover is secured by guide (2) in hole (1).

Fig 2: Locating Guide In Hole

Courtesy of BMW OF NORTH AMERICA, INC.
