52 17 405 Replacing backrest cover for left or right front seat (comfort)

WARNING: This page is about a different car, the 2005 BMW 745i, 2004 BMW 745i, 2003 BMW 745i, and 2002 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317
52 0 050

Necessary preliminary tasks:

Remove front seat. Refer to 52 14 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .
Remove both rear panels on front seat backrest. Refer to 52 17 205 REMOVING AND INSTALLING/REPLACING BOTH REAR PANELS ON LEFT OR RIGHT FRONT SEAT BACKREST (COMFORT) .
Remove inner cover on front seat. Refer to 52 14 041 REMOVING AND INSTALLING INNER COVER ON LEFT OR RIGHT FRONT SEAT (NORMAL/ELECTRIC) .

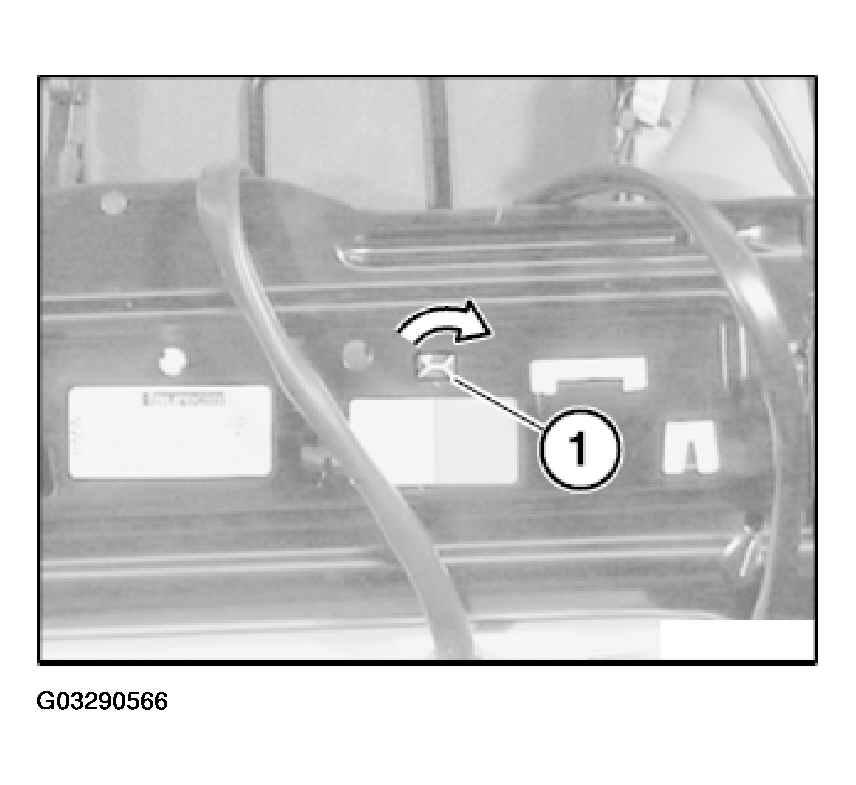

Detach plug connection (1) by twisting from backrest frame.

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

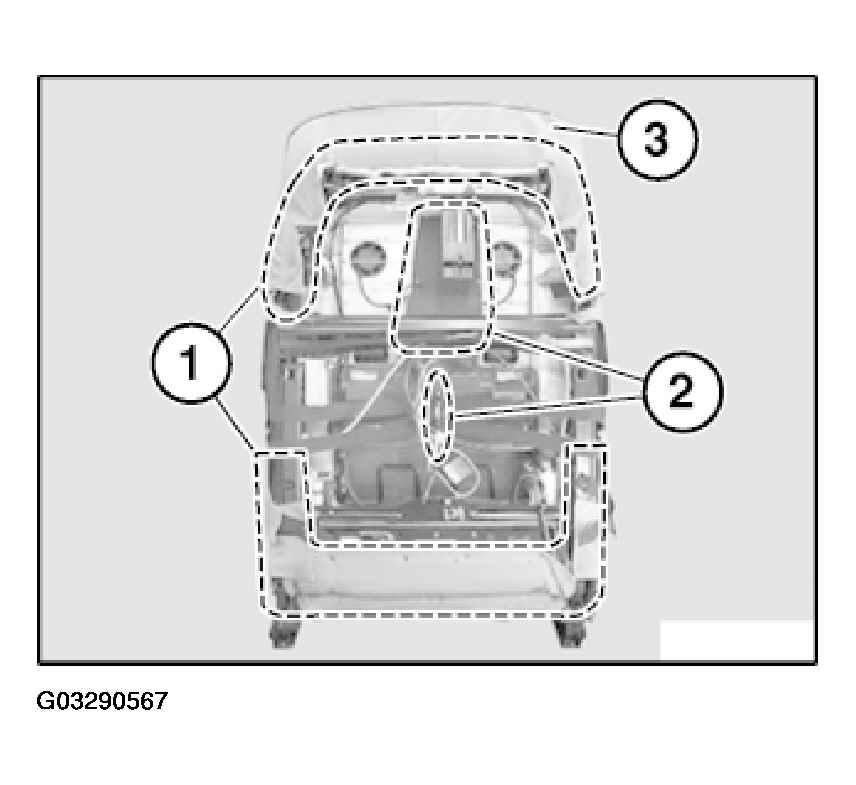

Unhook backrest cover (3) in areas (1).

Fig 2: Unhooking Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Detach all retainers in areas (2).

Installation:

Bend new retainers closed with pliers 52 0 050.

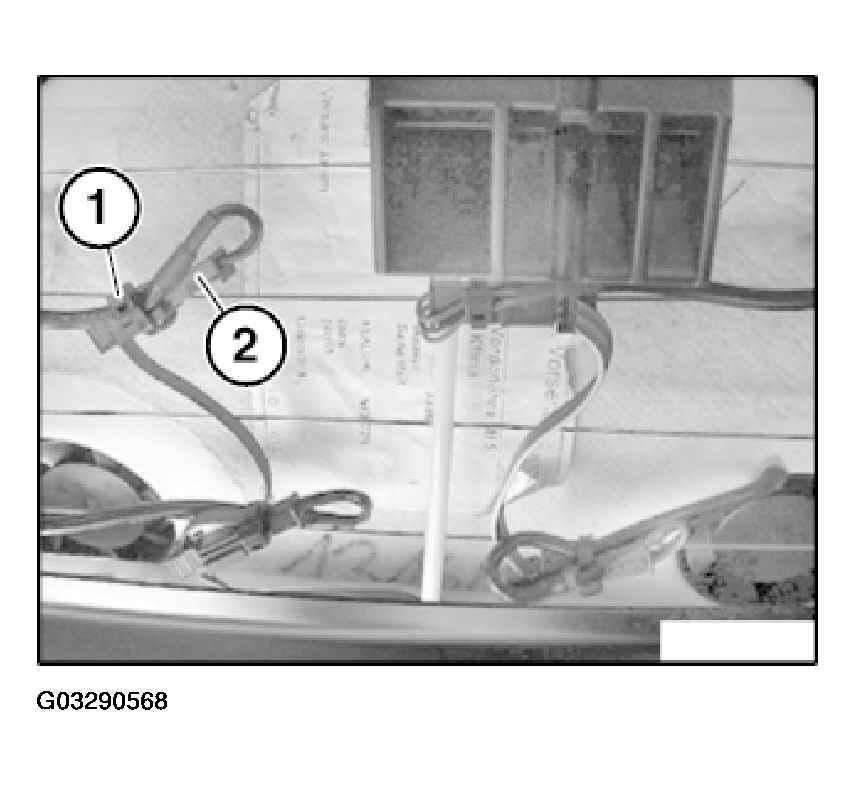

Release all cables ties (1).

Fig 3: Removing Cables Ties And Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect all plug connections (2).

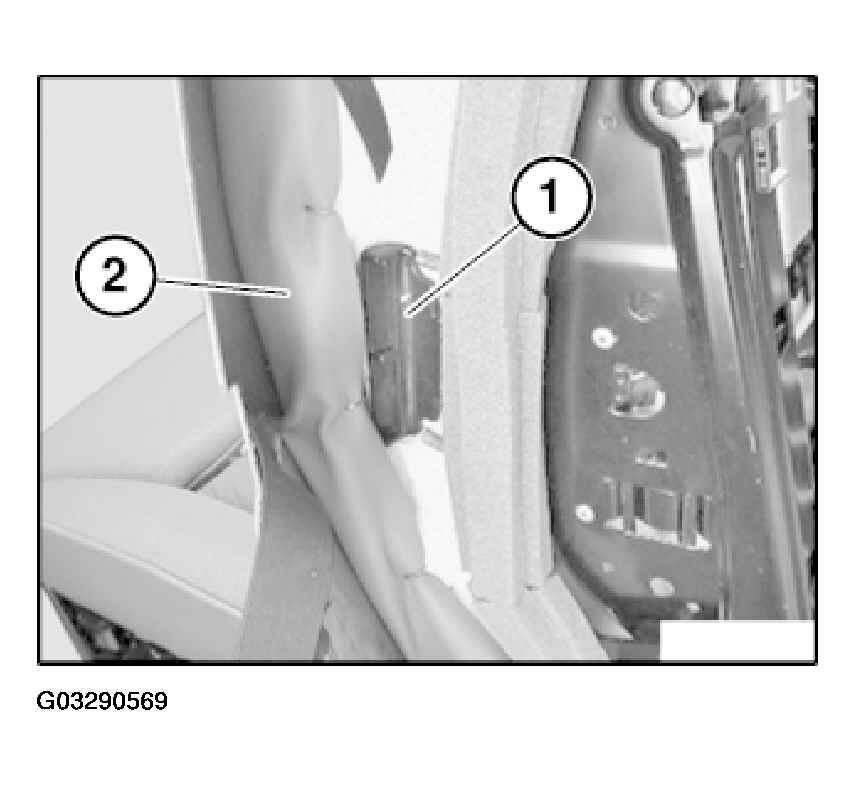

Remove backrest cover (2) complete with padding towards front.

Fig 4: Removing Backrest Cover With Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjusting unit (1) must be secured on left and right in opening of padding.

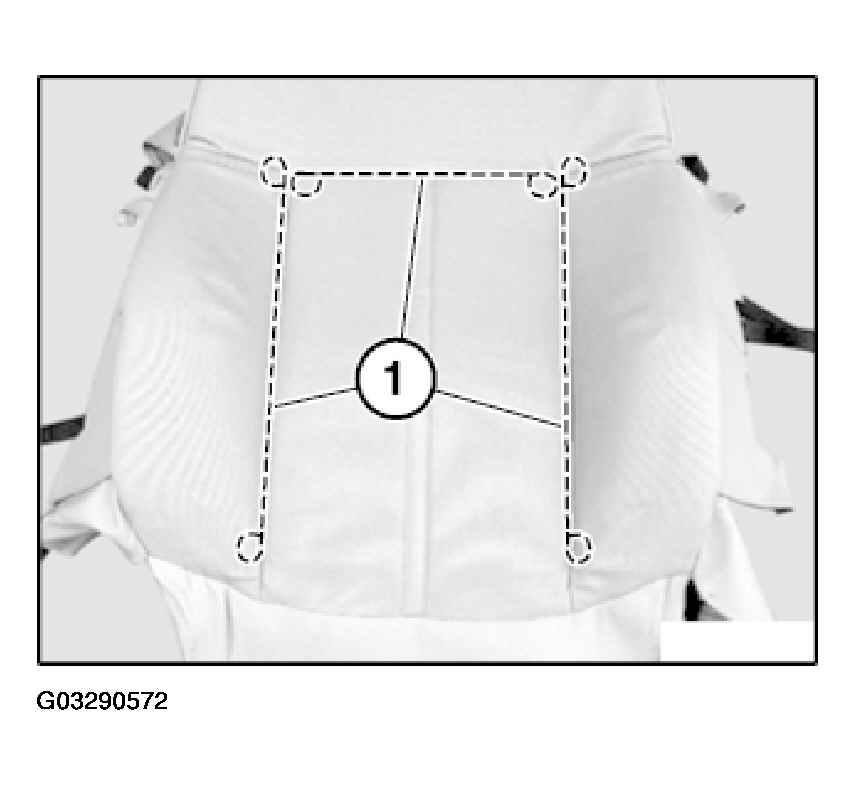

Detach all retainers in areas (1).

Fig 5: Detaching Retainers

Courtesy of BMW OF NORTH AMERICA, INC.

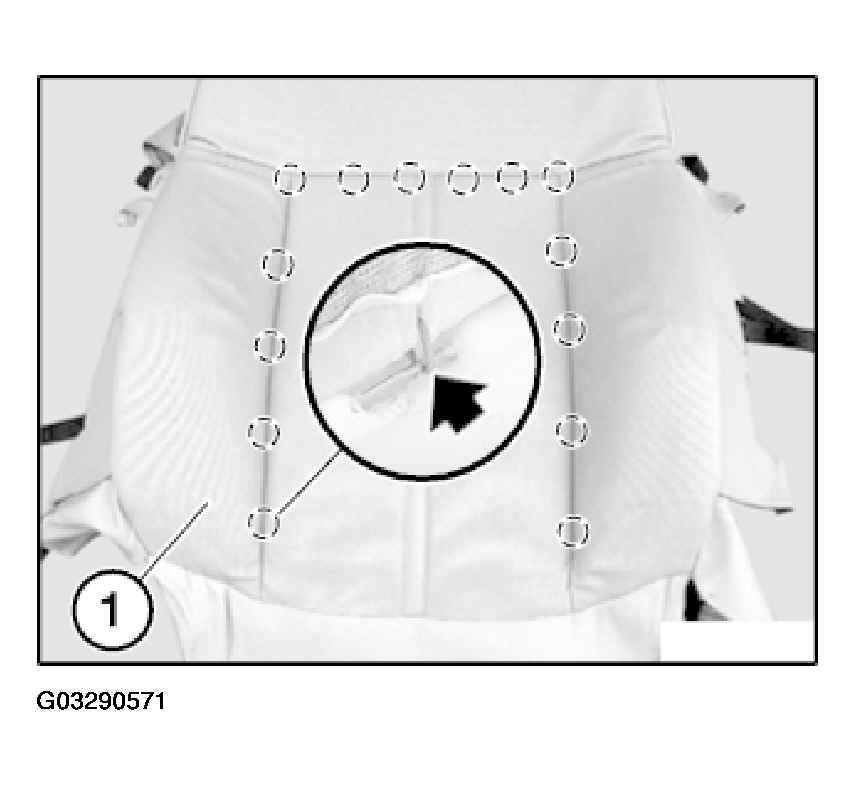

Release all retainers.

Fig 6: Removing Backrest Cover And Padding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Bend new retainers closed with pliers 52 0 050.

Remove backrest cover (1) from padding.

Remove all remnants of clips from backrest cover (1) and padding.

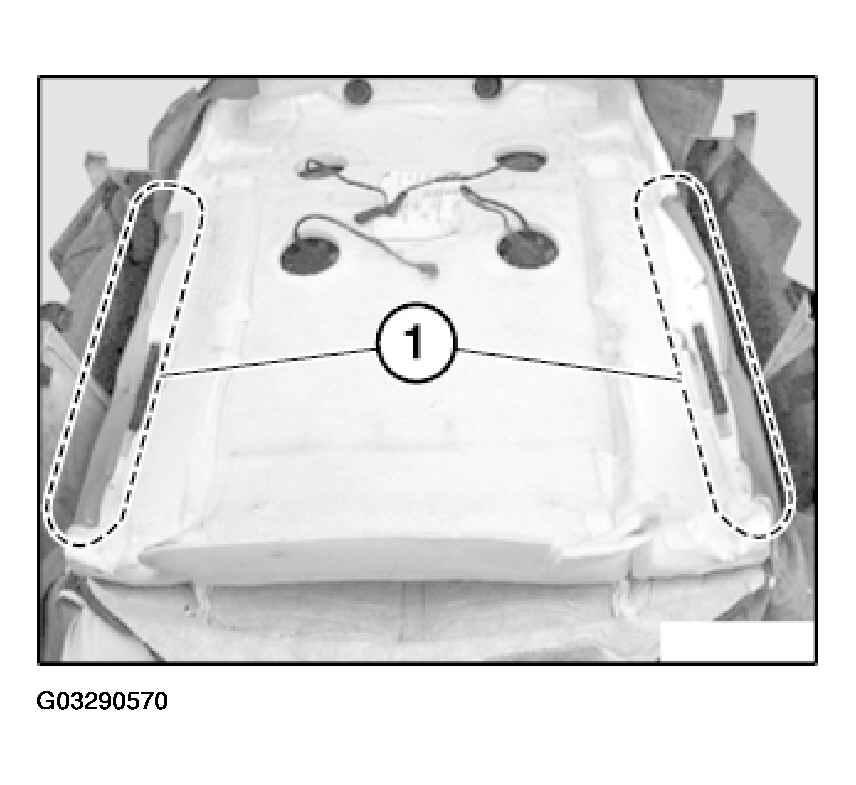

Pull trim threads (1) out of backrest cover.

Fig 7: Removing Trim Threads Of Backrest Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slide trim threads (1) into new backrest cover; if necessary, cut new part.

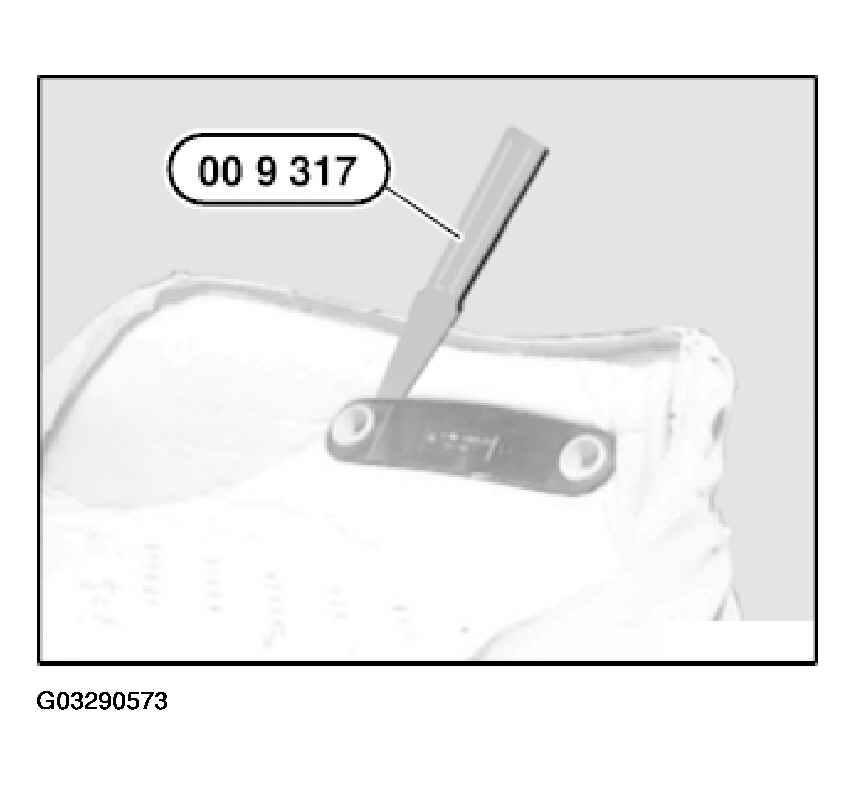

Lever out locking strip of head restraint guide with trim panel wedge 00 9 317.

Fig 8: Levering Out Locking Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Mount straight front face of head restraint guide towards front.
