51 43 075 Removing and installing / replacing side trim panel, footwell, on A-pillar, right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove entrance cover strip, front (inside) right, refer to 51 47 000 REMOVING AND INSTALLING / REPLACING ENTRANCE COVER STRIP, FRONT (INSIDE) LEFT OR RIGHT
Remove trim for instrument panel, bottom right, refer to 51 45 181 REMOVING AND INSTALLING INSTRUMENT PANEL TRIM AT BOTTOM RIGHT

Detach mucket (1) in area of side trim (3).

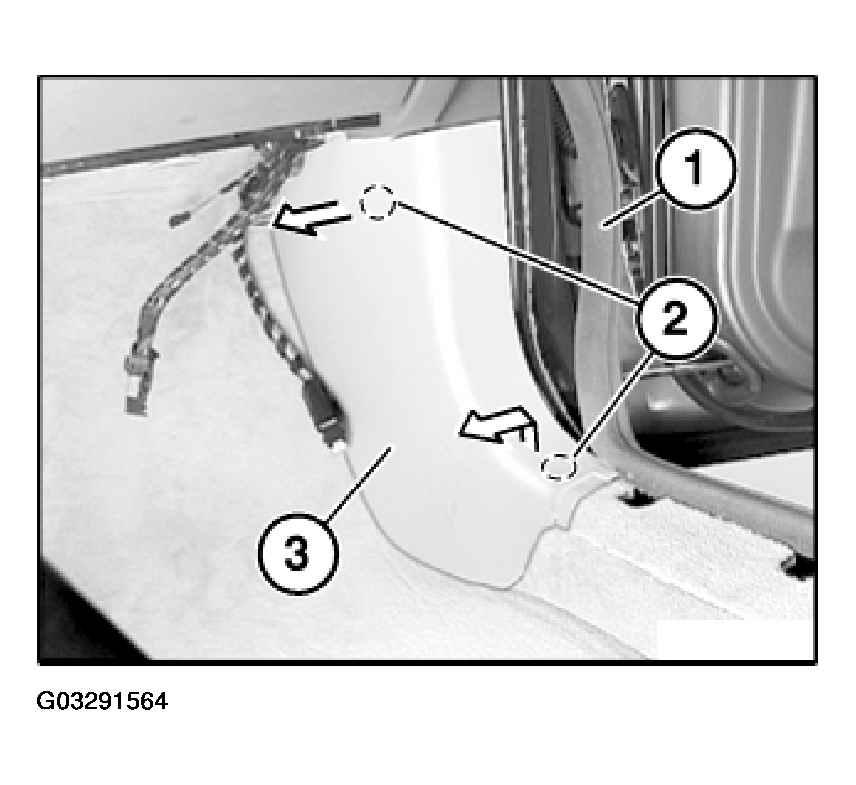

Fig 1: Detaching Mucket

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (2) in direction of arrow.

Pull out side trim panel (3) from carpet.

Installation:

Following parts of side trim panel (4) must not be damaged or missing:

Clips
Insulating mat
Tabs (for inserting in carpet)

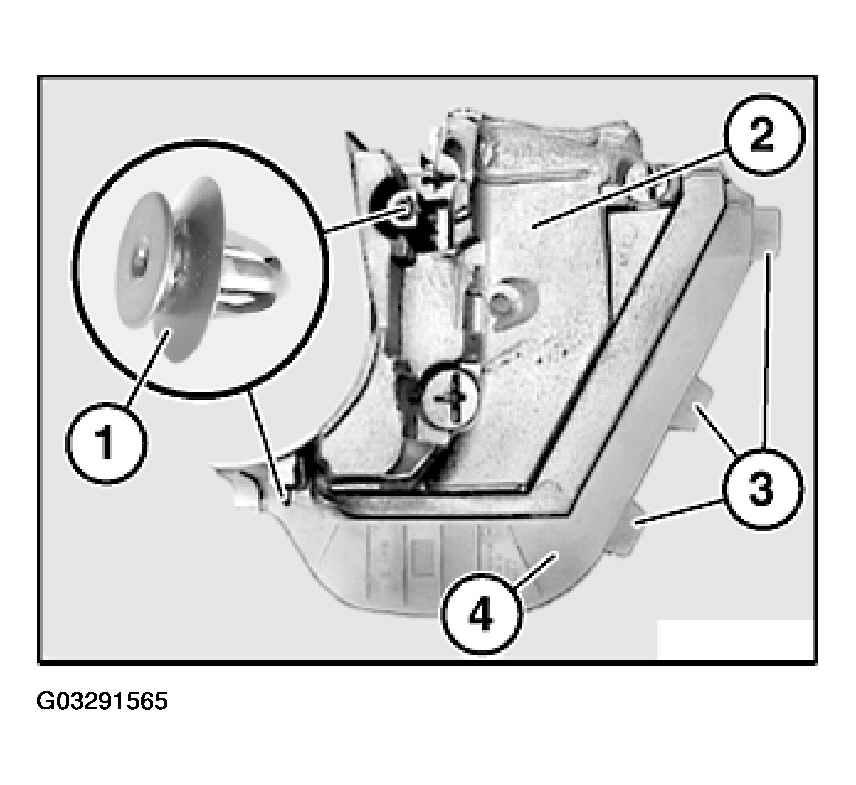

Fig 2: Installing Side Trim Panel
Courtesy of BMW OF NORTH AMERICA, INC.
