51 47 000 Removing and installing / replacing entrance cover strip, front (inside) left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Detach entrance cover strip (1) from front and rear trims.

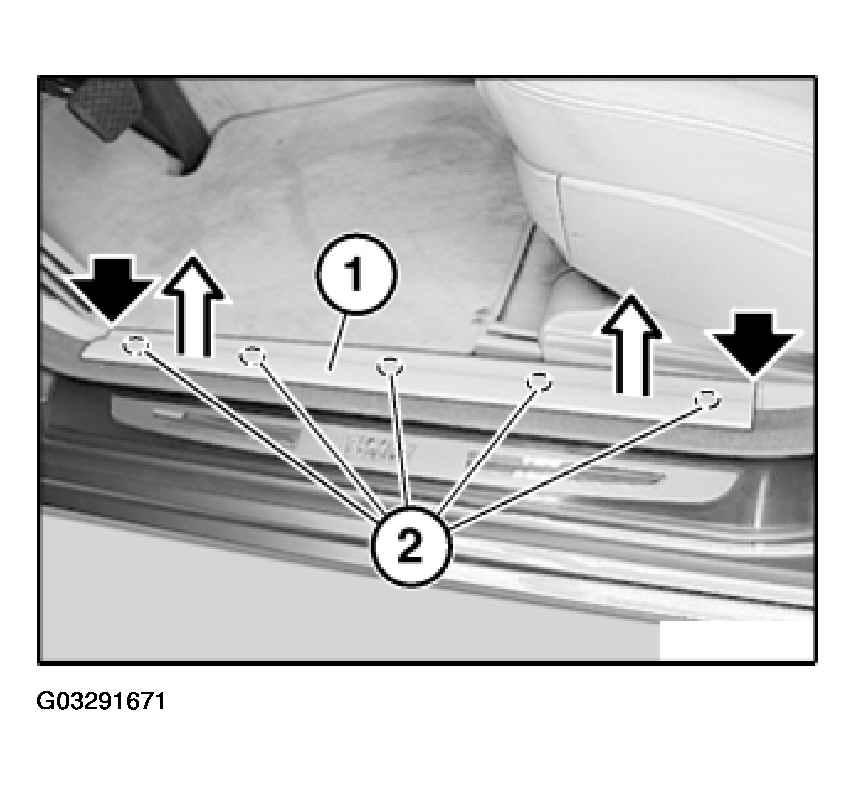

Fig 1: Detaching Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip entrance cover strip (1) in direction of arrow from floor plate.

If necessary, lever clips (2) with end cutting pliers (head of pliers surface-ground) out of floor pan.

Installation:

Clip mounts of entrance cover strip (2) must not be damaged.

Push clips (1) onto entrance cover strip (2).

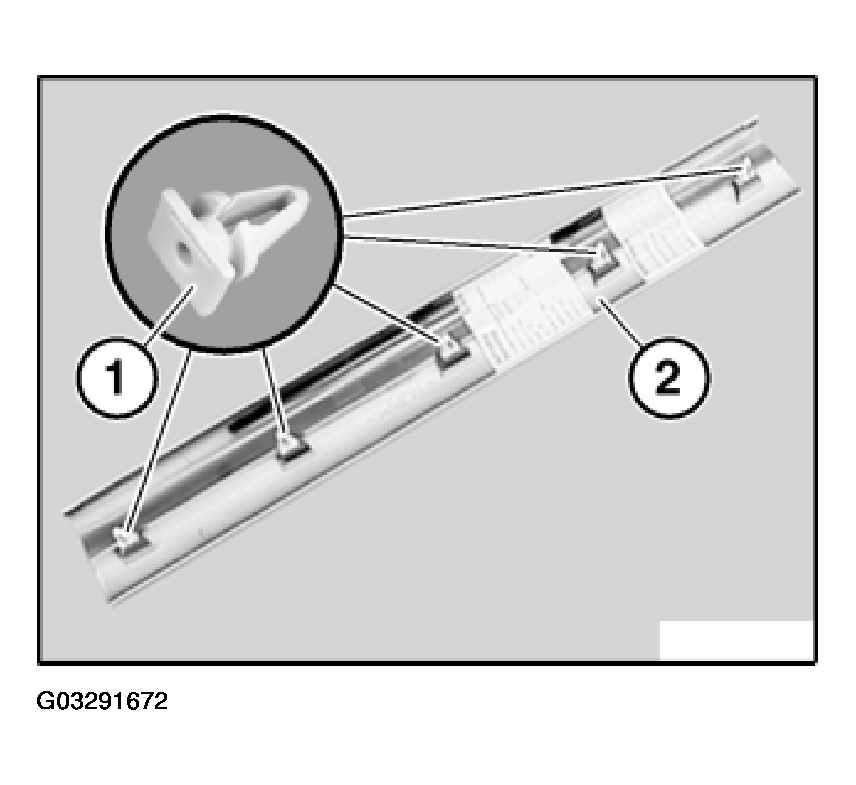

Fig 2: Pushing Clips Onto Entrance Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace faulty clips (1).
