51 45 181 Removing and installing instrument panel trim at bottom right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

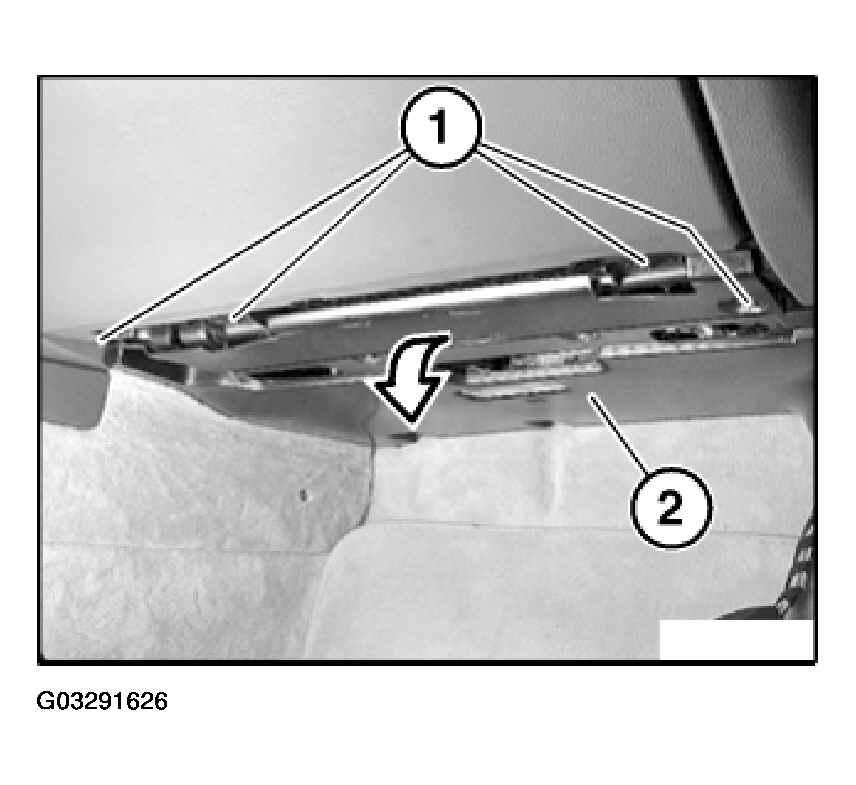

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lower trim (2) slightly.

Disconnect plug (4) from footwell light (5).

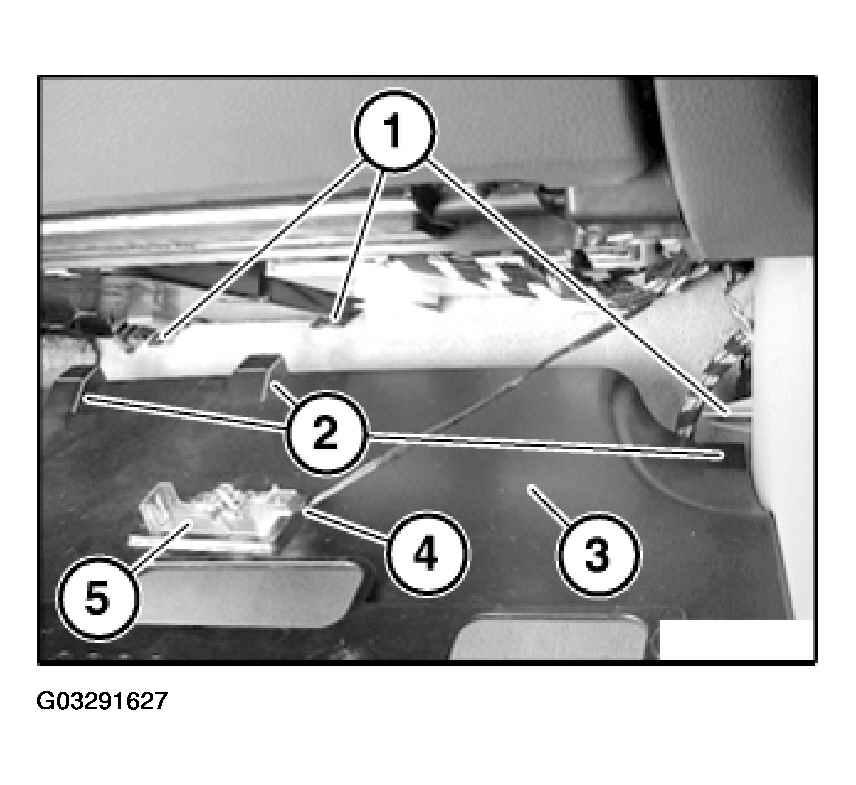

Fig 2: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim (3).

Installation:

Slide trim (3) with guides (2) into mountings (1).

Replacement only:

Lever out footwell light (5).
