51 34 471 Replacing rear left or right door window glass (with roller sun blind)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

First move door window glass into position, see next work step
Remove function carrier in rear door, refer to 51 22 035 REMOVING AND INSTALLING FUNCTION CARRIER (WITHOUT ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR or 51 22 435 REMOVING AND INSTALLING FUNCTION CARRIER (WITH ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR
Remove window cavity cover strip, refer to 51 22 302 REMOVING AND INSTALLING/REPLACING CHROME STRIP FOR WINDOW CAVITY COVER STRIP, REAR LEFT OR RIGHT

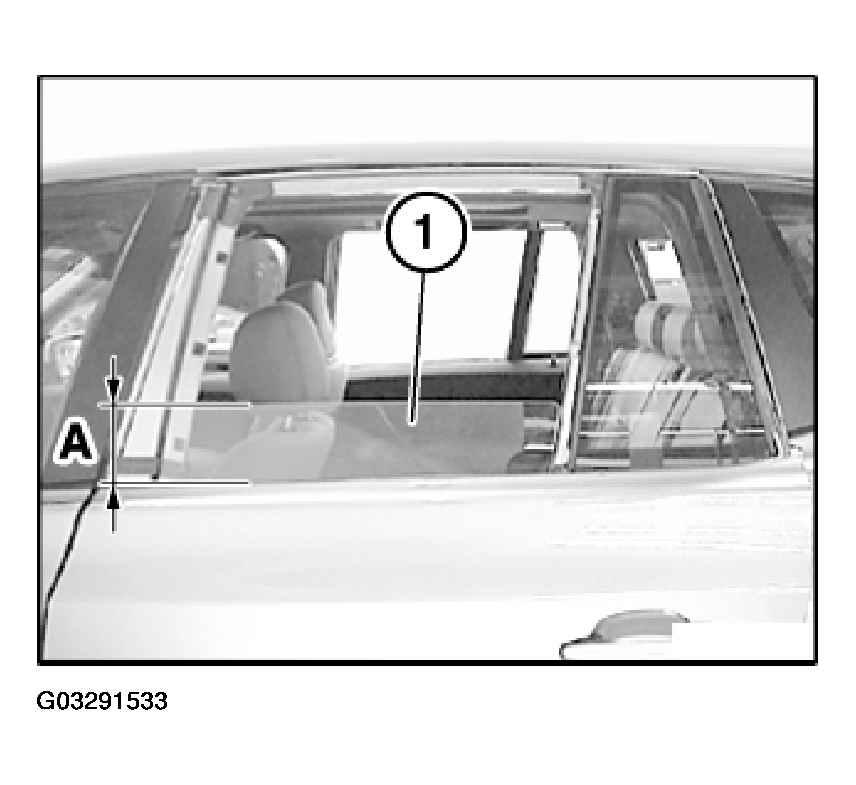

Open door window glass (1) up to measurement "A"

Fig 1: Opening Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

A= approx. 150 mm

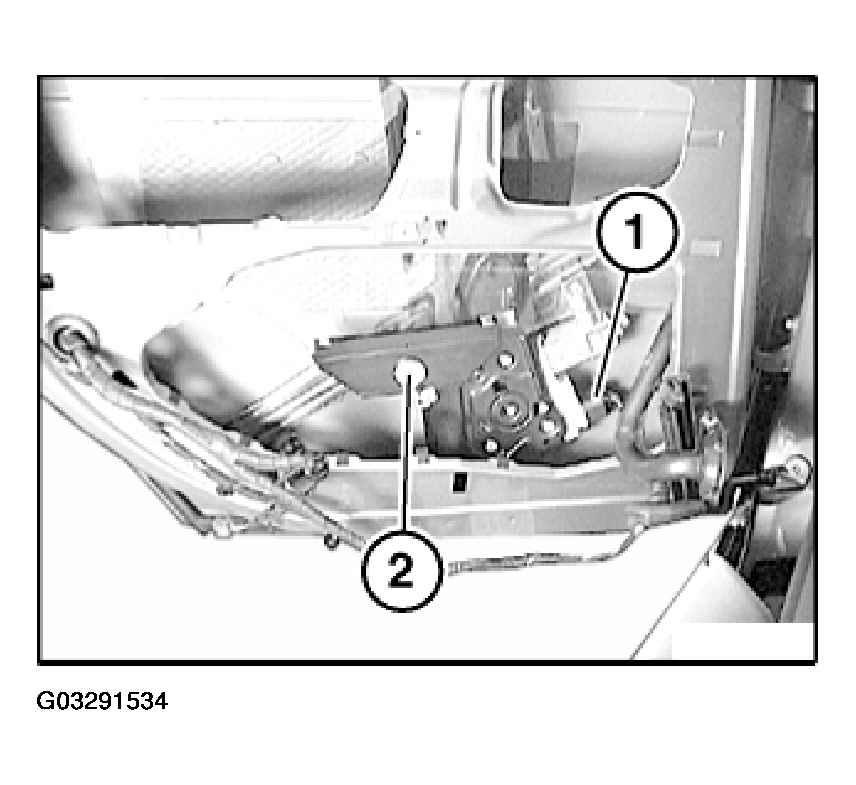

Disconnect plug (1) (risk of trapping).

Fig 2: Disconnecting plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Tightening torque 51 32 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Installation:

If necessary, initialize power window.

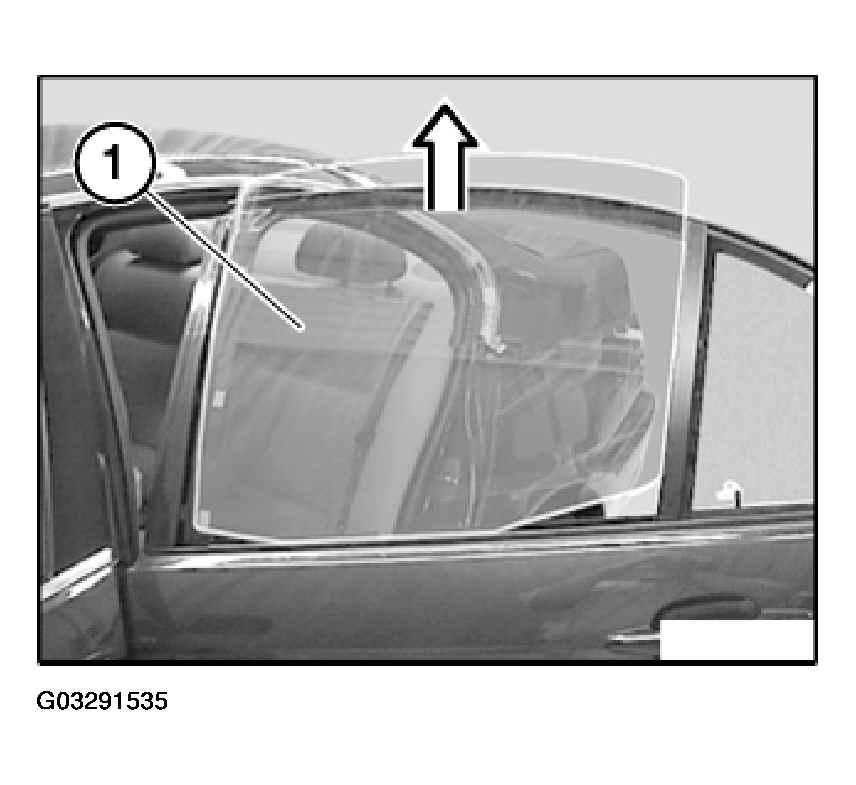

Remove door window glass (1) towards top.

Fig 3: Removing Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.
