51 22 302 Removing and installing/replacing chrome strip for window cavity cover strip, rear left or right

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 311

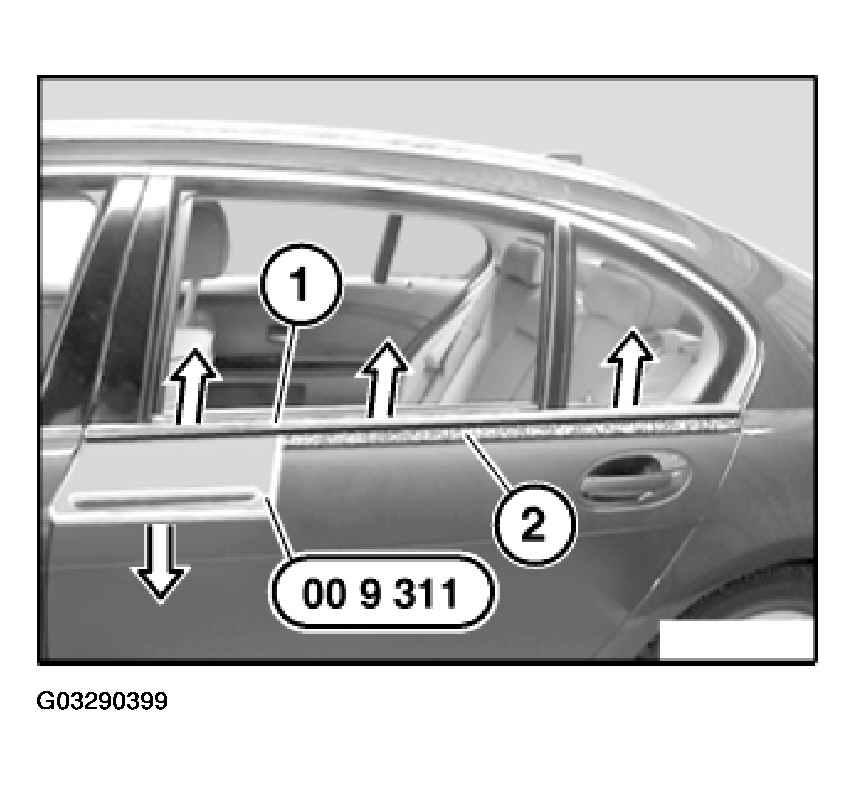

Stick adhesive tape (2) below window cavity cover strip (1) (risk of damage).

Fig 1: Identifying Window Cavity Cover Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Using special tool 00 9 311 (starting at front and proceeding to rear), lever out window cavity cover strip (1).

Installation:

Moisten window cavity cover strip (1) with water.

Window cavity cover strip (1) must be flush at front and rear with door edge.

Installation:

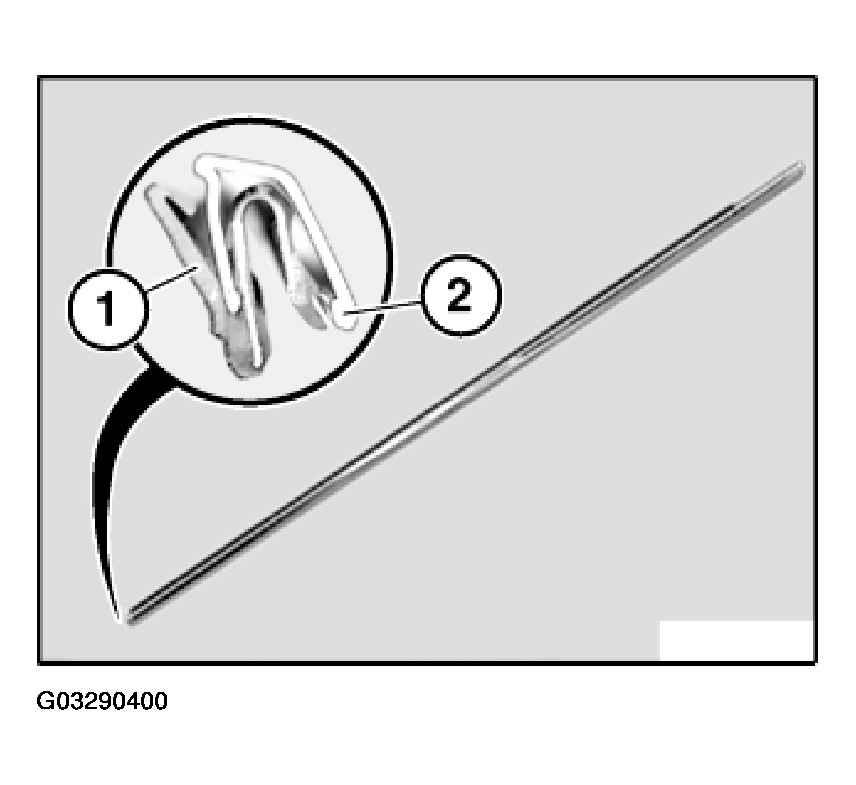

Seal (1) must be correctly fitted in chrome strip (2).

Fig 2: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Initialize power window. Refer to 67 62... NOTES ON INITIALIZING POWER WINDOW .
