51 41 000 Removing and installing left or right front door trim panel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317
00 9 322

WARNING: Side AIRBAG is mounted on door trim panel:
Disconnect battery. Refer to 12 00... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

IMPORTANT: Do not use any sharp-edged removal tools, risk of damage to AIRBAG.

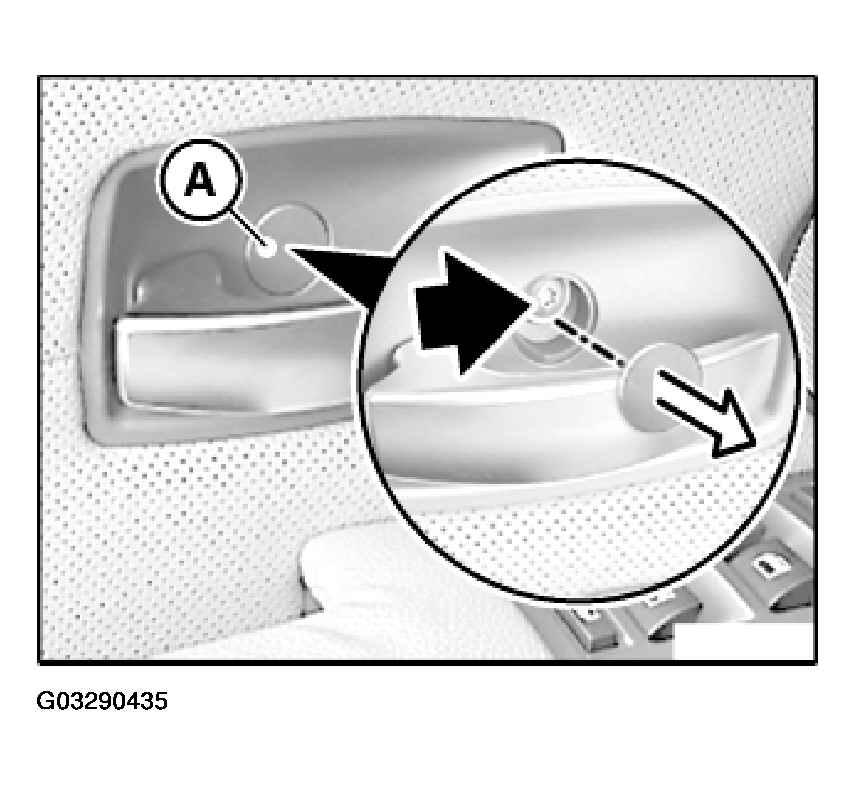

Press on point (A) and tilt out cover.

Fig 1: Tilting Out Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw underneath.

Installation:

Tightening torque 51 21 6AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

IMPORTANT: Replace damaged screws and nuts.

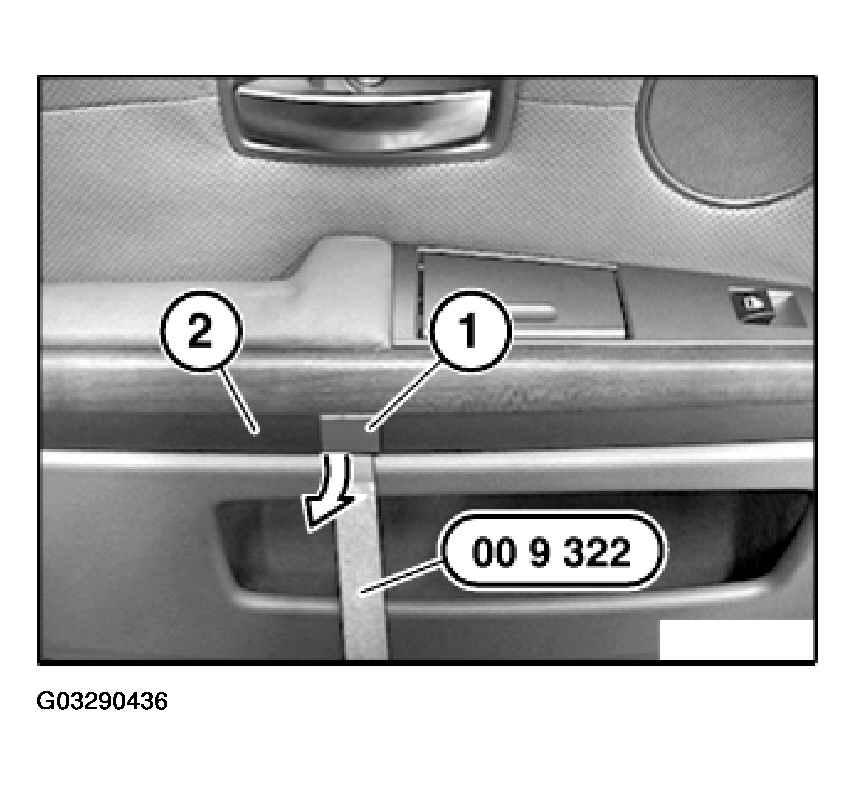

Carefully lever caps (1) with special tool 00 9 322 out of door trim panel (2).

Fig 2: Identifying Caps

Courtesy of BMW OF NORTH AMERICA, INC.

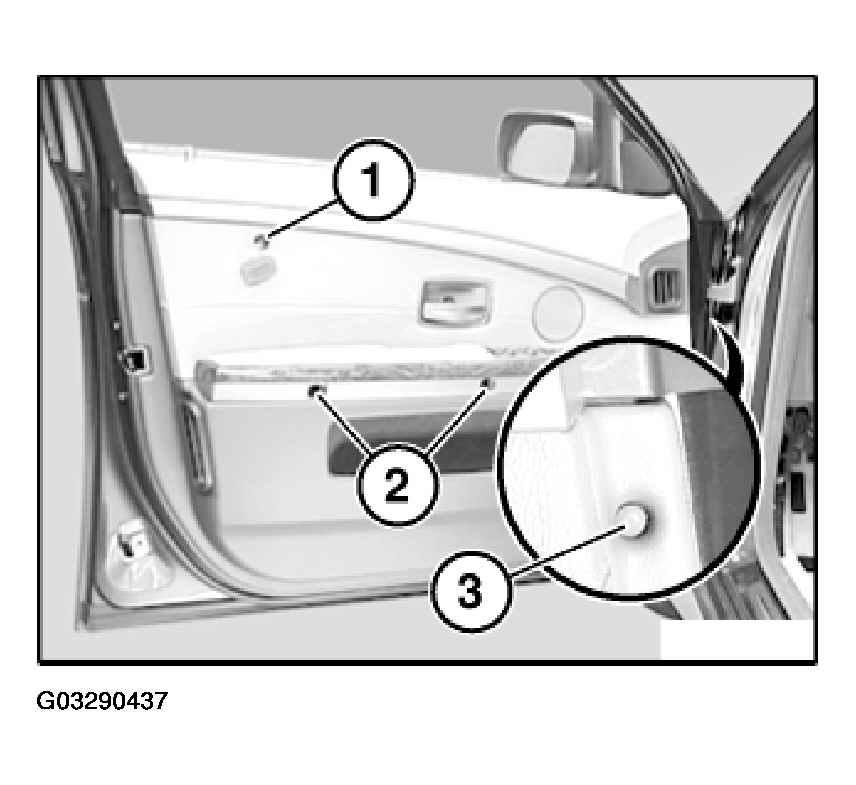

Lever out AIRBAG emblem (1) and release screw underneath.

Fig 3: Loosening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 51 41 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Loosen screws (2).

Tightening torque 51 41 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Unfasten cap (3) and release screw underneath.

Tightening torque 51 41 4AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

NOTE: Start unclipping at bottom.

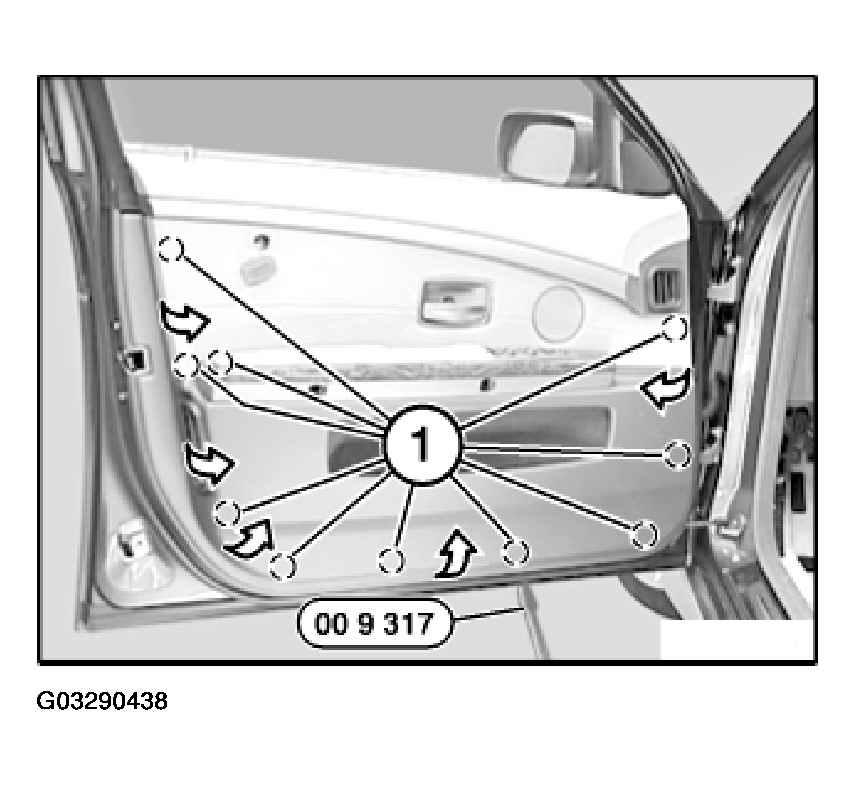

Unclip clips (1) of door trim panel with special tool 00 9 317.

Fig 4: Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

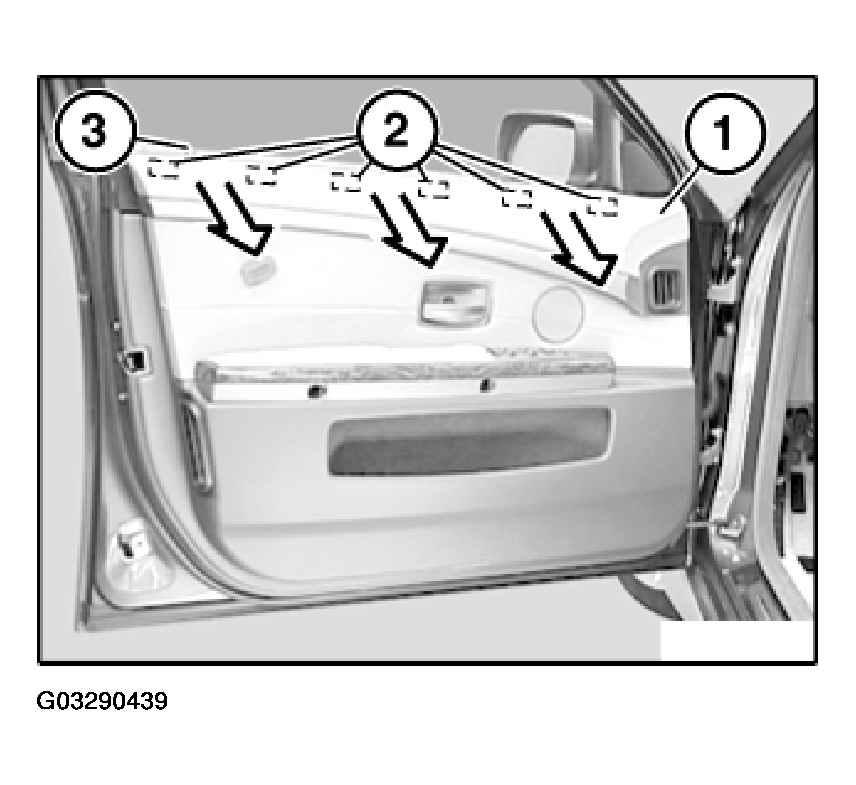

Carefully unclip door trim panel (1) at top from retainers (2).

Fig 5: Feeding Out Door Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out door trim (1) from unlocking knob (3).

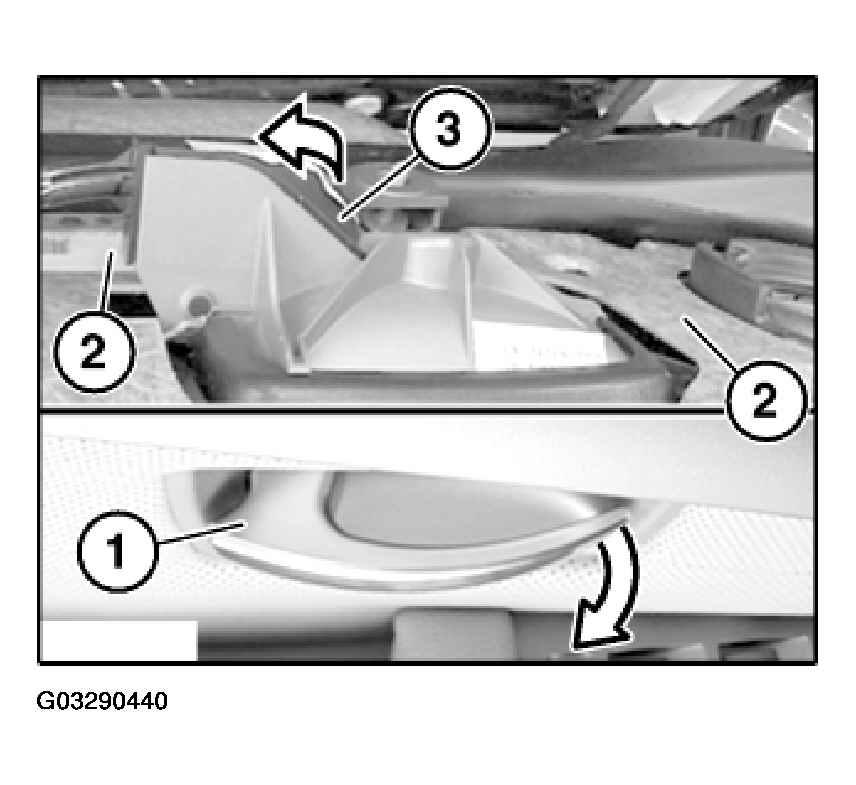

Unhook Bowden cable for release lever:

Fig 6: Removing Release Lever

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten release lever (1).
Lever out lock (2).
Detach Bowden cable (3) towards rear/top.

Installation:

For fitting, press release lever (1) fully onto door trim panel.

WARNING: Disconnect plug connection on side AIRBAG.

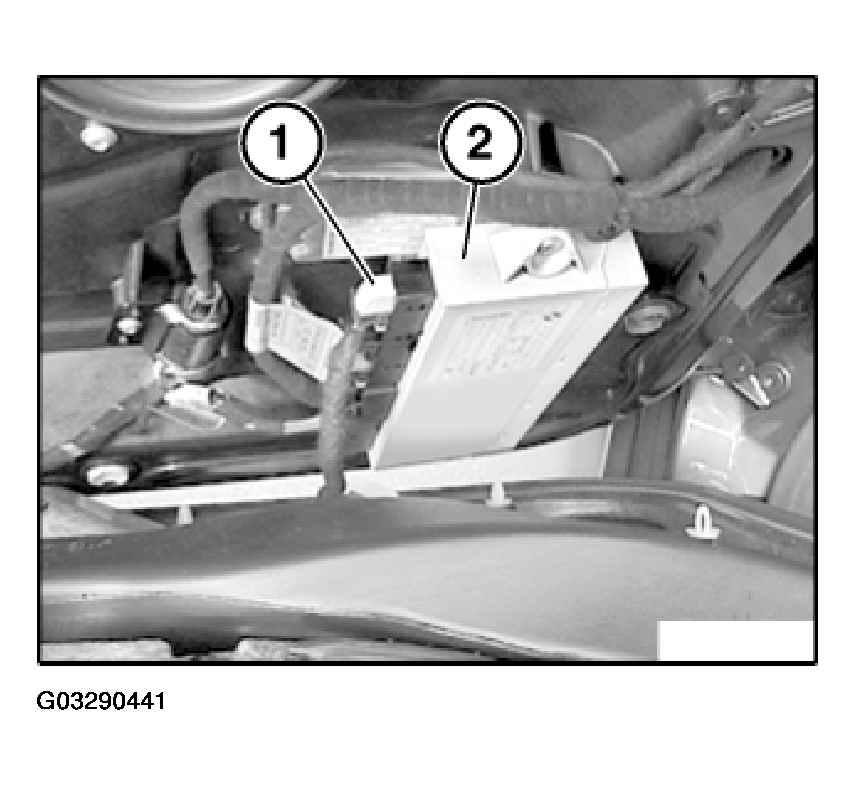

Unlock plug connection (1) and disconnect from control unit (2).

Fig 7: Disconnecting From Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door trim.

Installation:

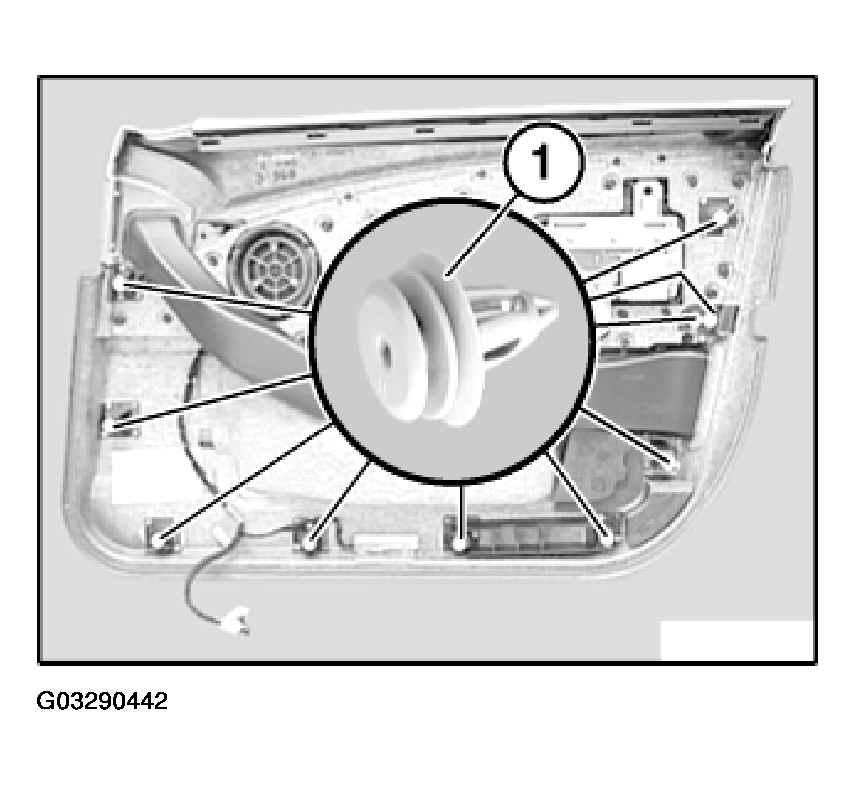

All clips (1) are white.

If necessary, replace faulty clips (1).

Fig 8: Installing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

After assembling the door trim panel proceed as follows:

Open door window.
Lock with vehicle key.
Check for ease-of-movement on retaining button linkage
If necessary, align linkages
