26 11 051 Replacing flexible disk for propeller shaft
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove entire system, refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N62)
- Remove heat shield at front and rear, refer to REMOVAL & INSTALLATION - (6HP26Z/6HP32Z) .
- Remove transmission underbody protection, refer to REMOVAL & INSTALLATION - (6HP26Z/6HP32Z)
- Remove transmission cross-member. Refer to 22 32 001 REPLACING RUBBER MOUNT FOR TRANSMISSION MOUNTING .
- Detach propeller shaft: refer to 26 11 000 Removing and installing complete propeller shaft
- Unflange propeller shaft from transmission
- Release propeller shaft center bearing
- Tie propeller shaft to one side
To protect universal joints, tie back propeller shaft in area of center bearing.

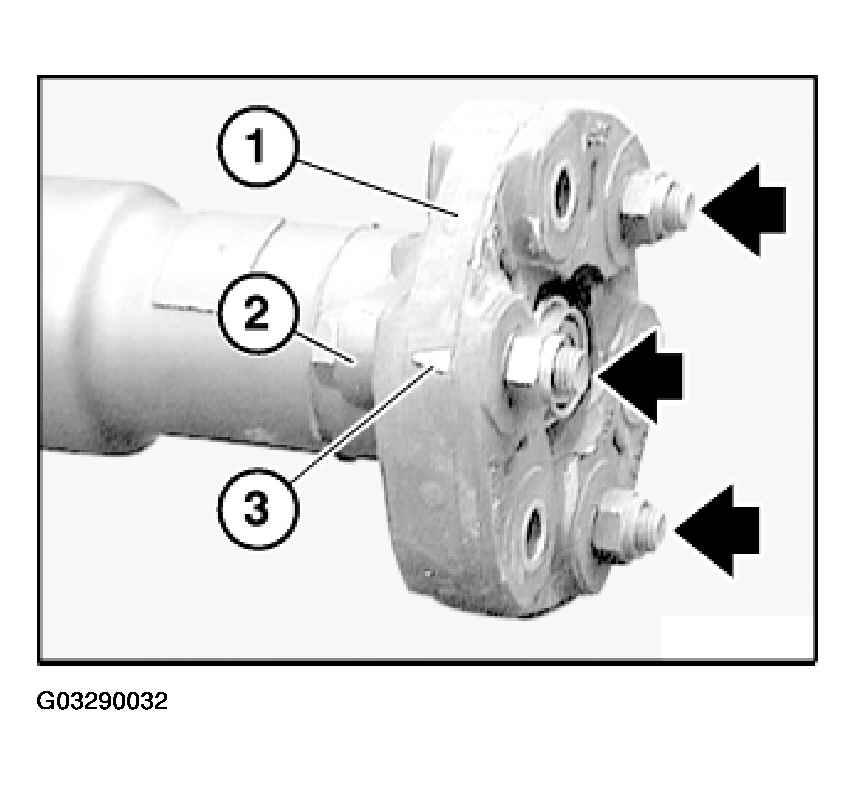

Release screws and remove flexible disk (1) from propeller shaft.
Installation:
The arrow-shaped markings (3) on the circumference of the flexible disk must point in each case to the flange arms (2).
Replace self-locking nuts.
Tighten retaining screws at the screw heads only.
Tightening torque: Refer to PROPELLER SHAFT - TIGHTENING TORQUES .
Installation:

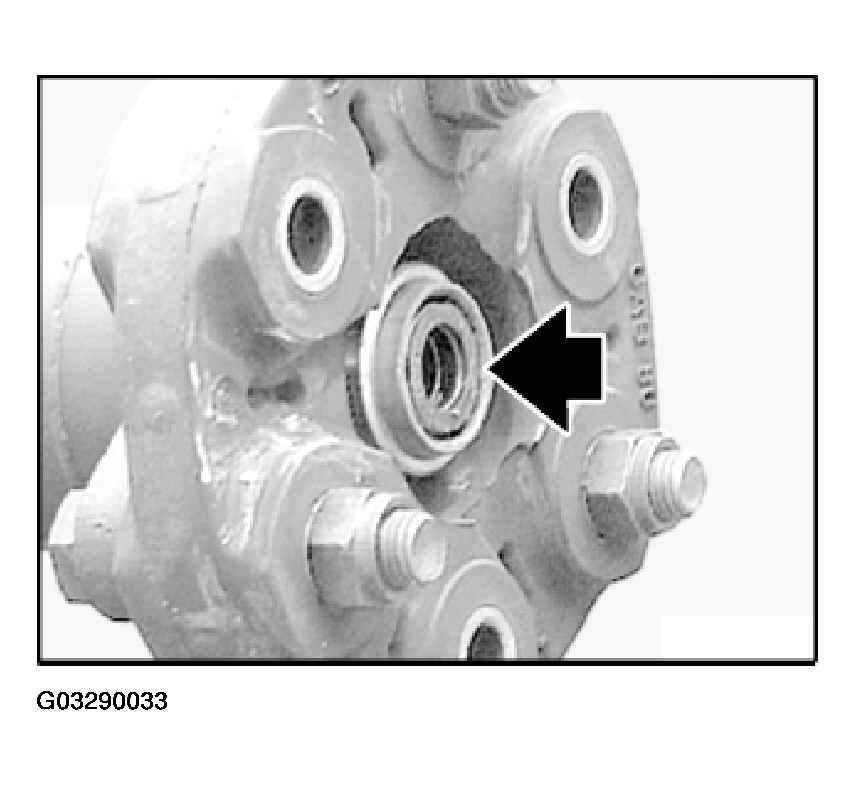

Check centering element, replace centering element if damaged. Refer to 26 11 090 Removing And Installing/Replacing Centering Mount For Propeller Shaft .
Grease centering mount.
