26 11 000 Removing and installing complete propeller shaft
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove exhaust system. Refer to 18 00 020 REMOVING AND INSTALLING COMPLETE EXHAUST SYSTEM (N62) .
- Remove heat shields and transmission underbody protection. Refer to REMOVAL & INSTALLATION - (6HP26Z/6HP32Z) .
- Support transmission from underneath. Refer to REMOVAL & INSTALLATION - (6HP26Z/6HP32Z) .
- Remove transmission cross-member. Refer to 22 32 001 REPLACING RUBBER MOUNT FOR TRANSMISSION MOUNTING .

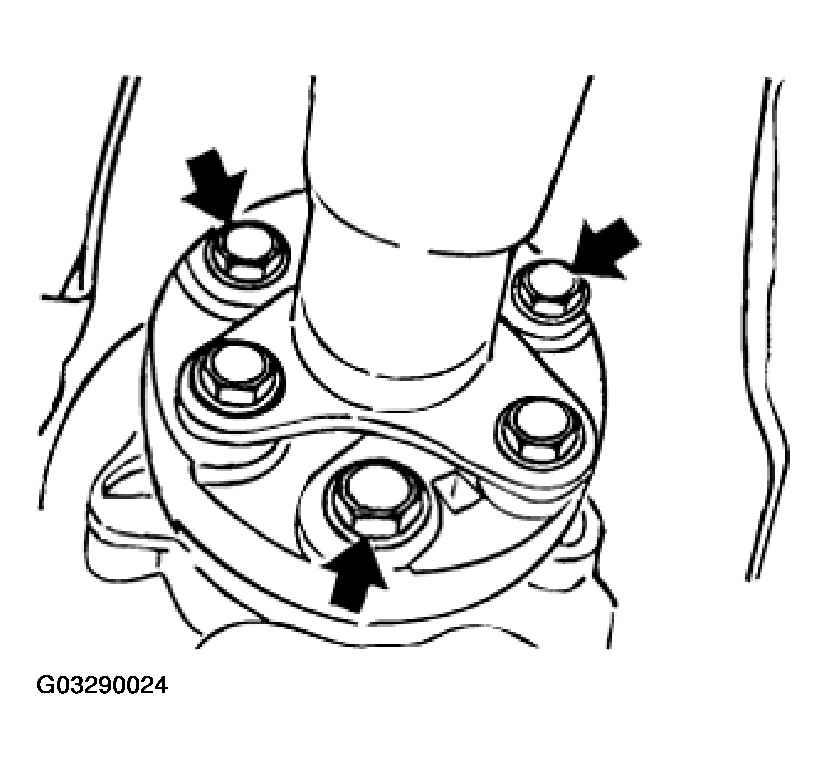

Unfasten screws.
NOTE:
To facilitate release of propeller shaft screw connection, manually unlock transmission lock. Refer to AUTOMATIC TRANSMISSION
.
Installation:
Replace self-locking nuts.
IMPORTANT:
All except N62 /M67:
The screw without washer may only be tightened by means of the nut.
The screw with rolled-on washer which has ribbed teeth facing the support side must be tightened by means of the screw.
Observe different tightening torques.
Tightening torque: Refer to PROPELLER SHAFT - TIGHTENING TORQUES .
The screw without washer may only be tightened by means of the nut.
The screw with rolled-on washer which has ribbed teeth facing the support side must be tightened by means of the screw.
Observe different tightening torques.
Tightening torque: Refer to PROPELLER SHAFT - TIGHTENING TORQUES .

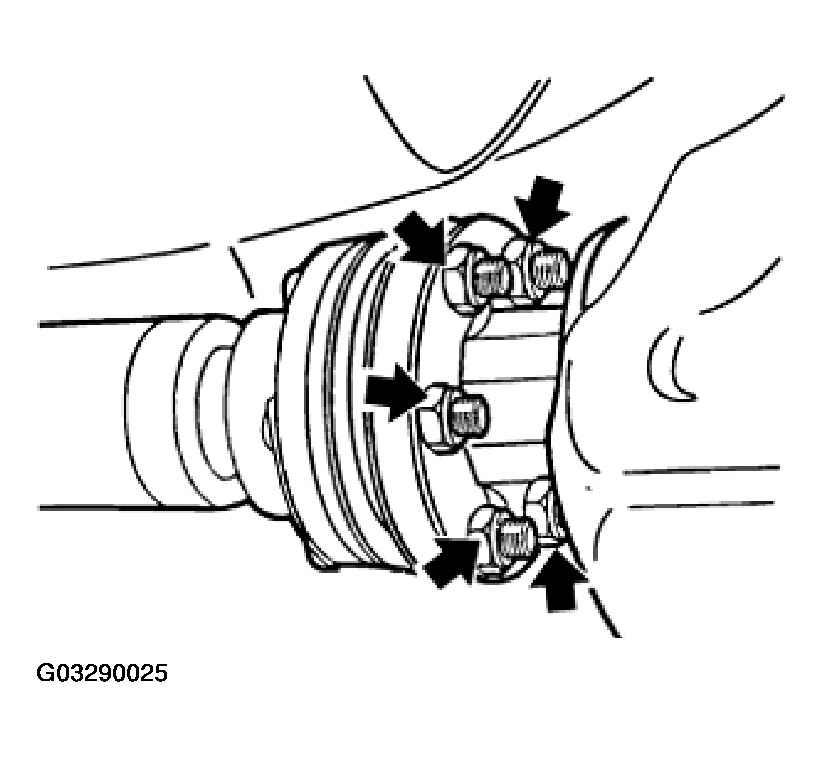

Unscrew nuts.
Installation:
Tightening torque: Refer to PROPELLER SHAFT - TIGHTENING TORQUES .

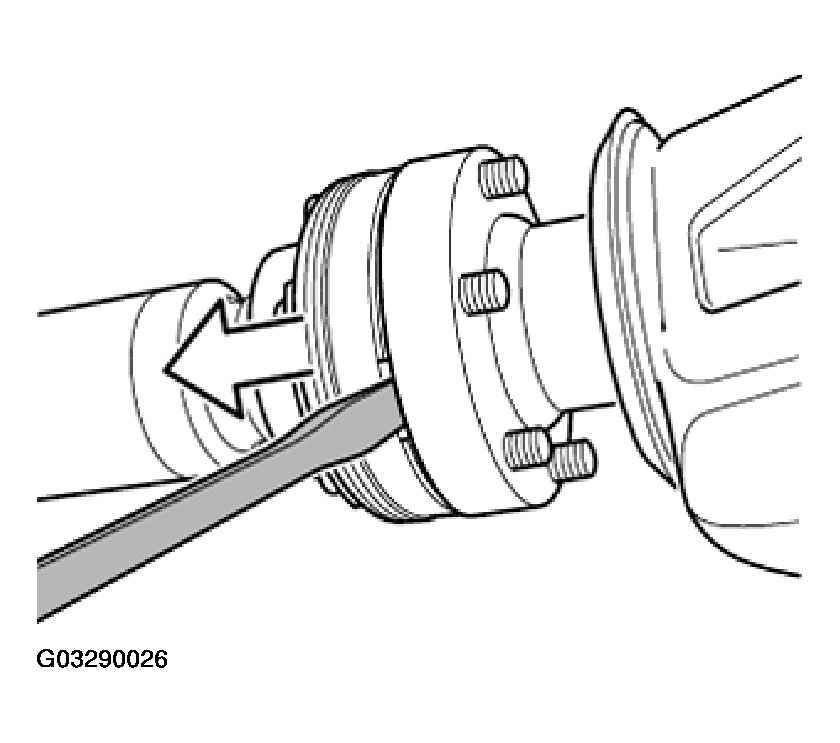

With a screwdriver, press constant-velocity joint (at the disassembly grooves) off input flange.

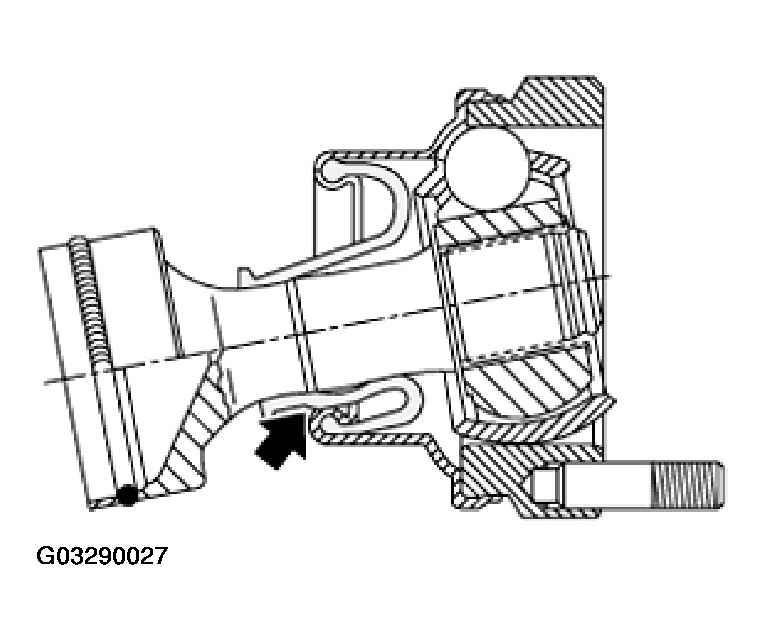

IMPORTANT:
Do not let propeller shaft fall into joints. Joint and rubber sleeve on constant-velocity joint may be damaged.

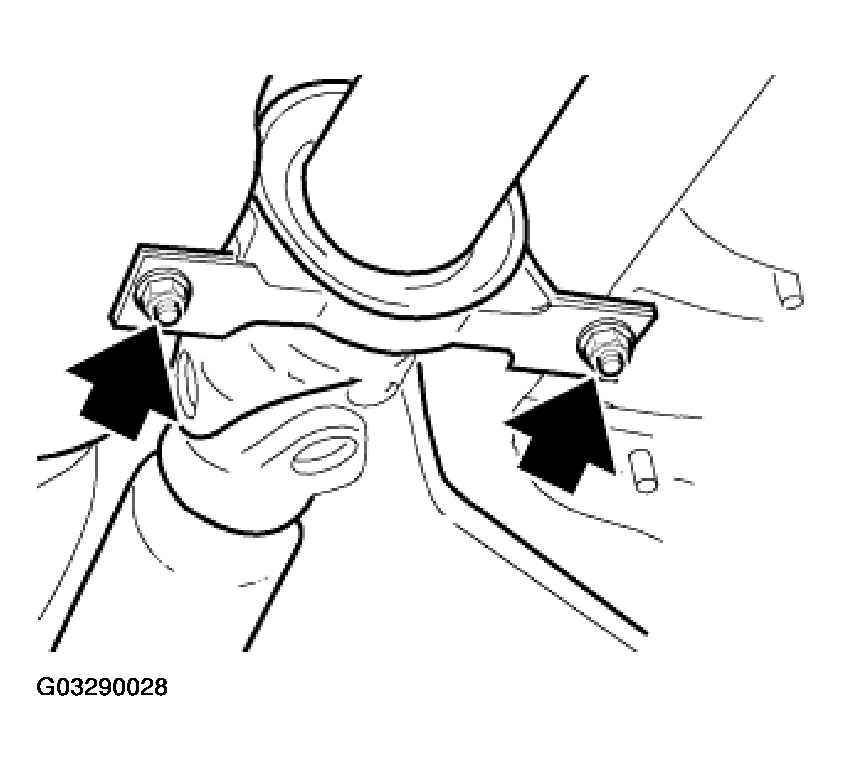

Brace propeller shaft on center mount and loosen nuts.
Installation:
Tightening torque: 21 Nm.

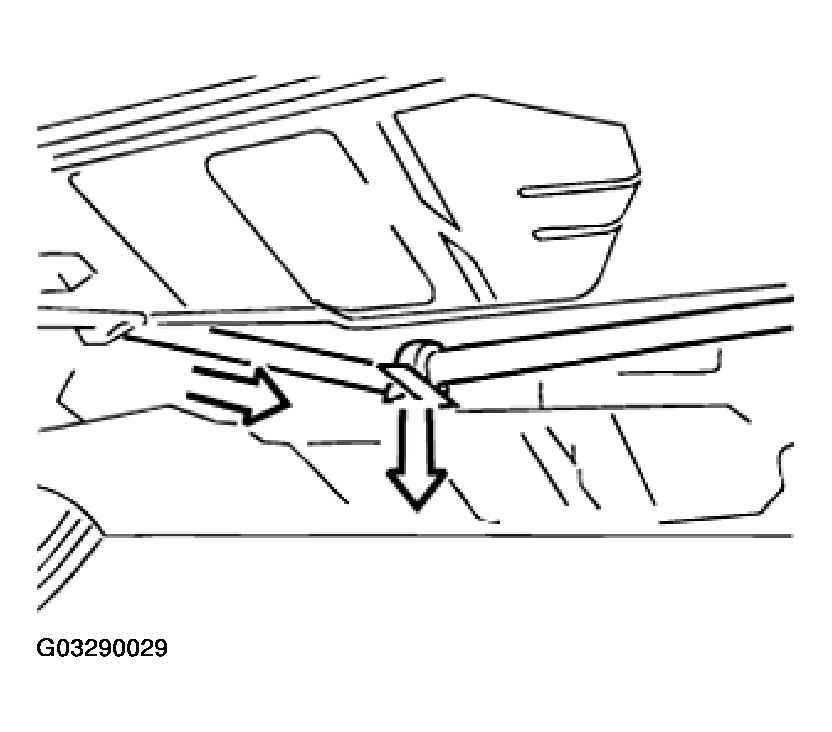

Bend propeller shaft downwards on center bearing.
Remove propeller shaft from transmission output flange and remove constant-velocity joint from final drive.
NOTE:
Protect constant-velocity joint from dirt with transport cap.
Installation:

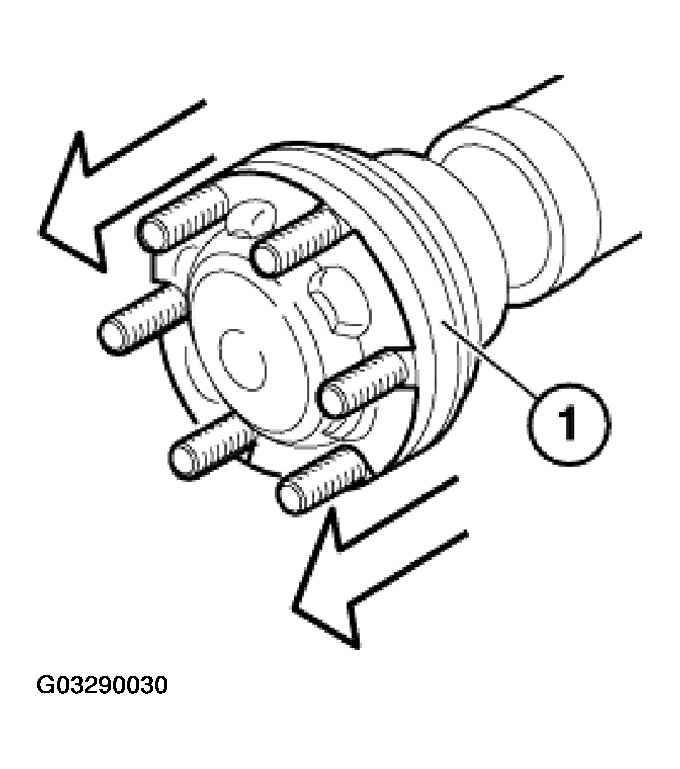

- Pull out constant-velocity joint (1) up to stop.
- Use new nuts.
- Attach propeller shaft with constant-velocity joint pulled apart to drive flange of final drive.
- Alternately tighten 2 opposing nuts to draw constant-velocity joint evenly into the input flange.
- Tighten down nuts, tightening torque: Refer to PROPELLER SHAFT - TIGHTENING TORQUES .
Installation:

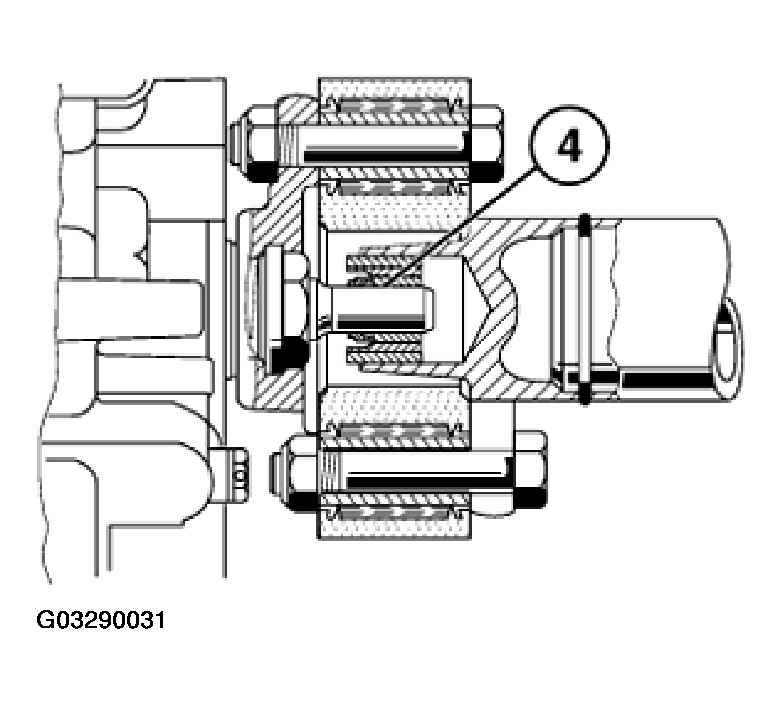

- Check centering (4), replace damaged centering. Refer to 26 11 090 Removing And Installing/Replacing Centering Mount For Propeller Shaft .
- Grease centering (for grease, refer to 26 11 090 Removing And Installing/Replacing Centering Mount For Propeller Shaft ).
