26 11 090 Removing and installing/replacing centering mount for propeller shaft
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 00 5 500
- 11 1 310
- 11 2 030
Necessary preliminary tasks:
- Remove propeller shaft. Refer to 26 11 000 Removing And Installing Complete Propeller Shaft .

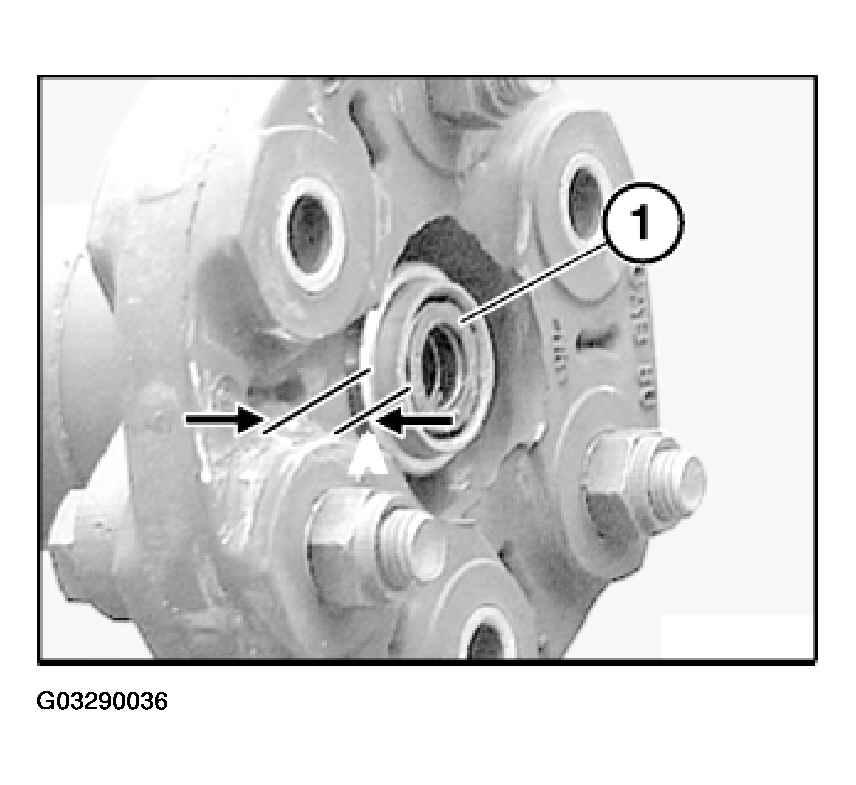

Fill centering bore (1) completely with viscous grease.

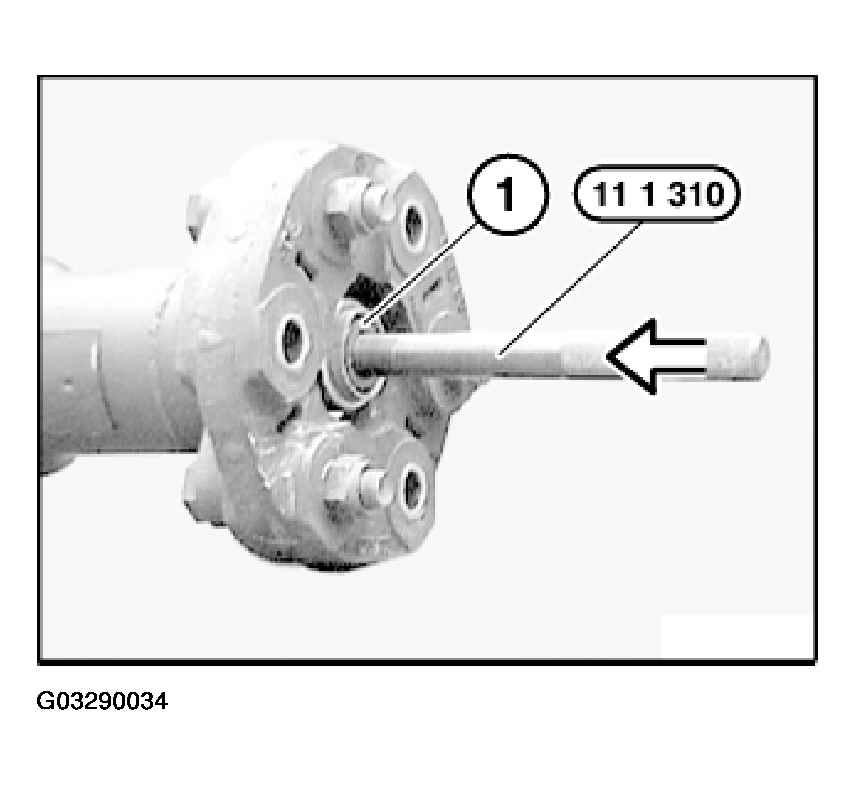

Drive special tool 11 1 310 with a plastic hammer into centering bore.
The centering mount (1) is forced out of the propeller shaft by the pressure on the grease filling.
If necessary, top up grease repeatedly.
NOTE:
To drive out the mount, you can also fill the centering bore with water instead of grease.
Installation:
Remove grease/water from mount bore.

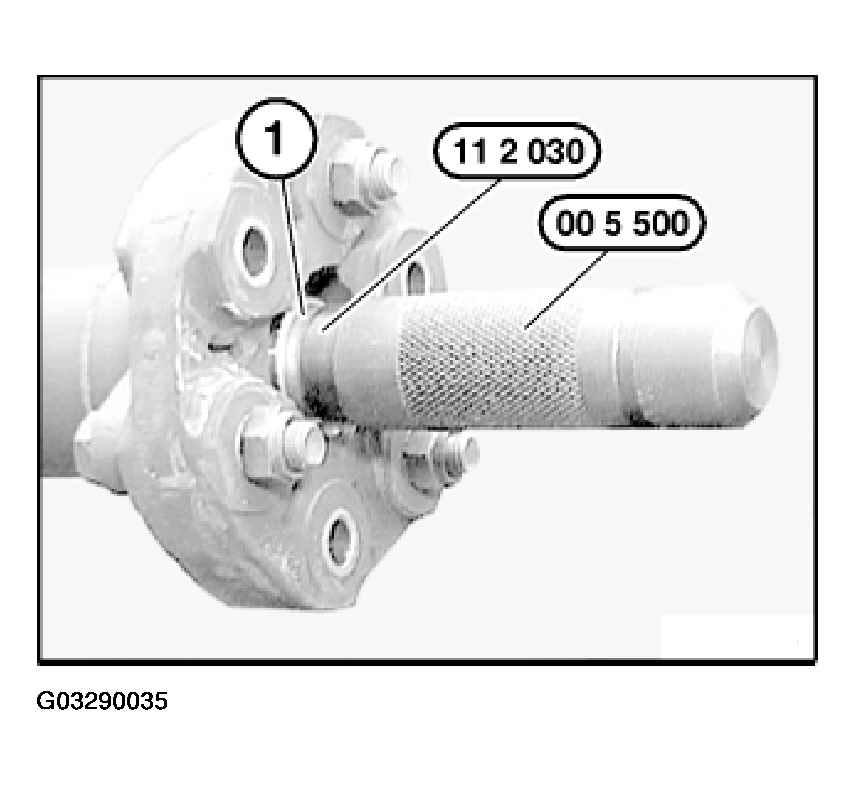

Drive in centering (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).
Grease centering mount.
Installation:
Observe protrusion A = 4+2 mm of centering (1).
