65 11 055 Removing and installing/replacing radio receiver (with board monitor)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove CD-changer,

refer to 65 11 070 REMOVING AND INSTALLING/REPLACING CD-CHANGER

If necessary, remove GPS receiver module,

refer to 65 90 520 REMOVING AND INSTALLING/REPLACING RECEIVER MODULE FOR GLOBAL POSITIONING SYSTEM (GPS) (SALOON)

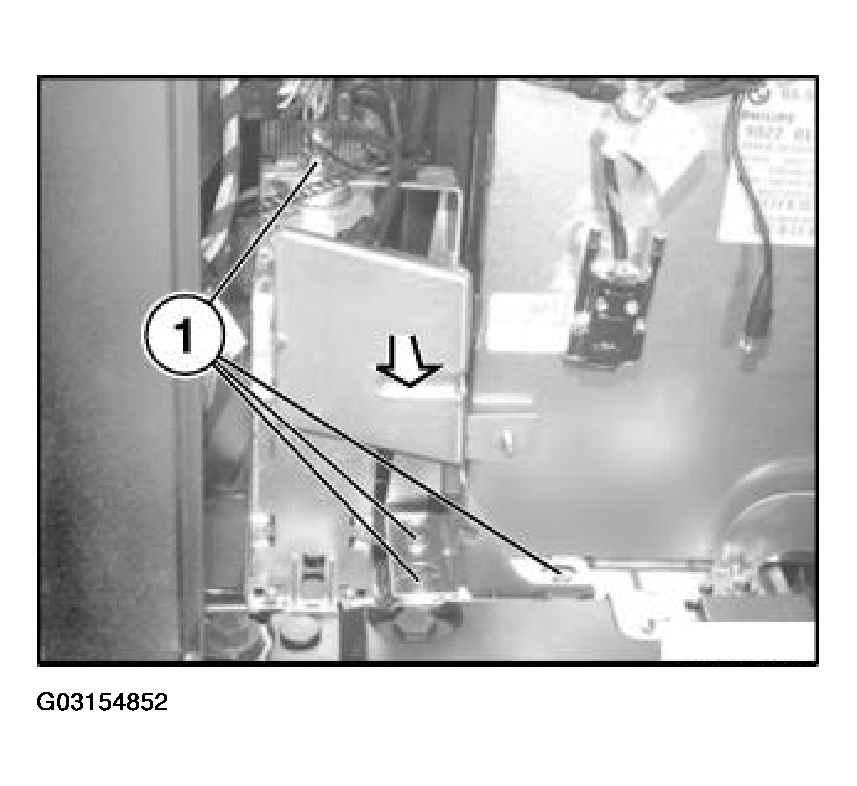

Unfasten screws (1), pull bracket slightly forwards and lift upwards to remove.

Fig 1: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

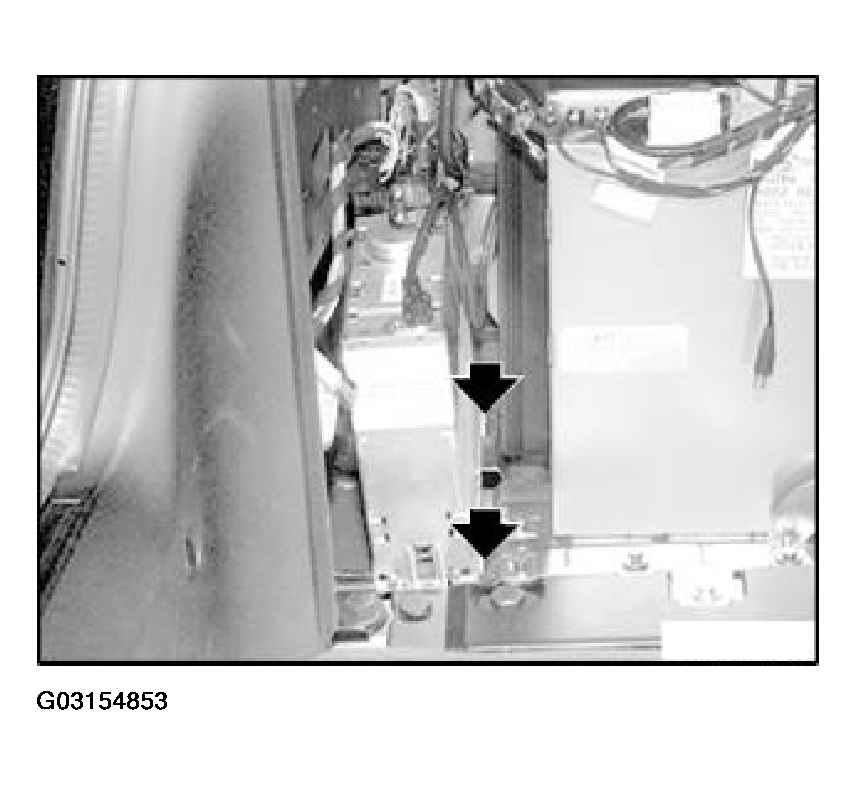

Pull receiver out of centering bores and remove connector.

Fig 2: Removing Receiver Out Of Centering Bores

Courtesy of BMW OF NORTH AMERICA, INC.
