65 11 070 Removing and installing/replacing CD-changer

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

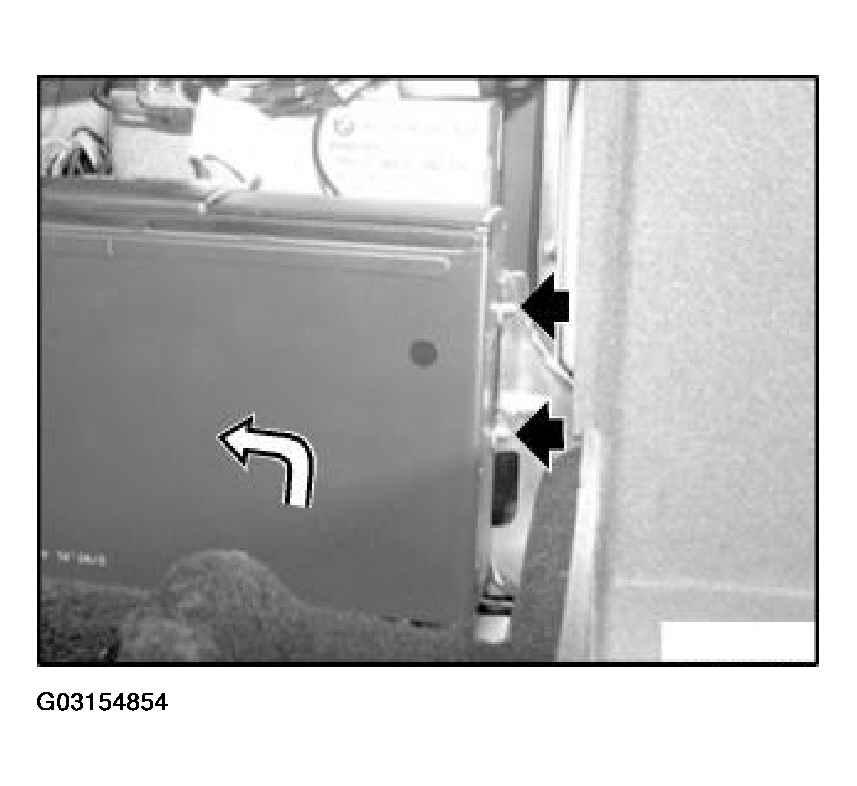

Open flap in rear left side panel. Unfasten screws, raise CD-changer slightly and tilt outwards to remove.

Fig 1: Removing CD-Changer

Courtesy of BMW OF NORTH AMERICA, INC.

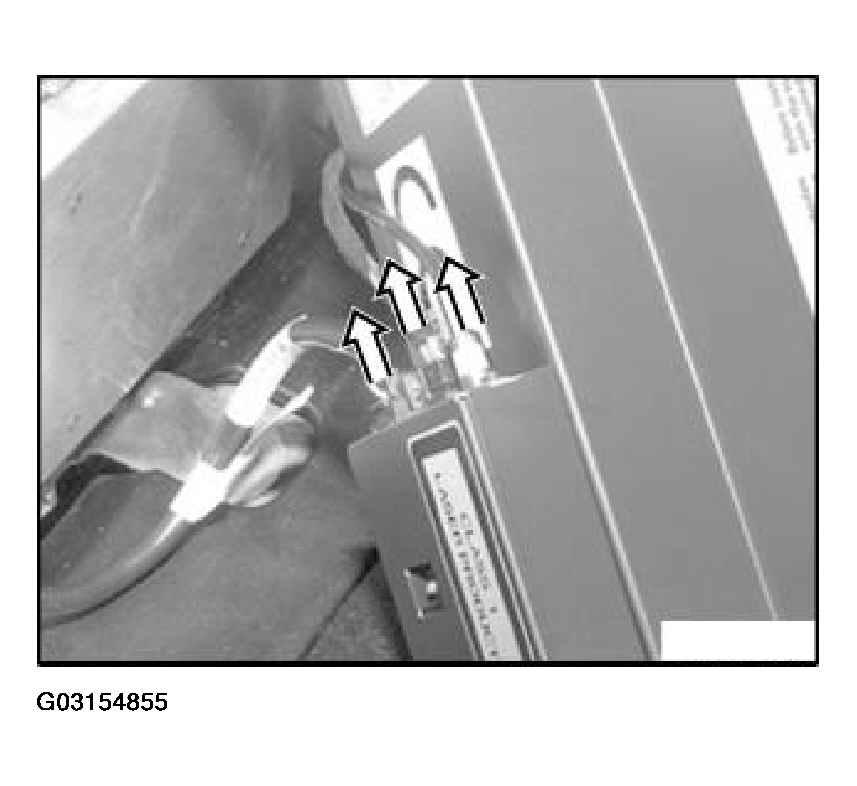

Pull off connectors.

Fig 2: Removing Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
