65 90 520 Removing and installing/replacing receiver module for Global Positioning System (GPS) (saloon)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
If necessary, remove CD-changer, refer to 65 11 070 REMOVING AND INSTALLING/REPLACING CD-CHANGER

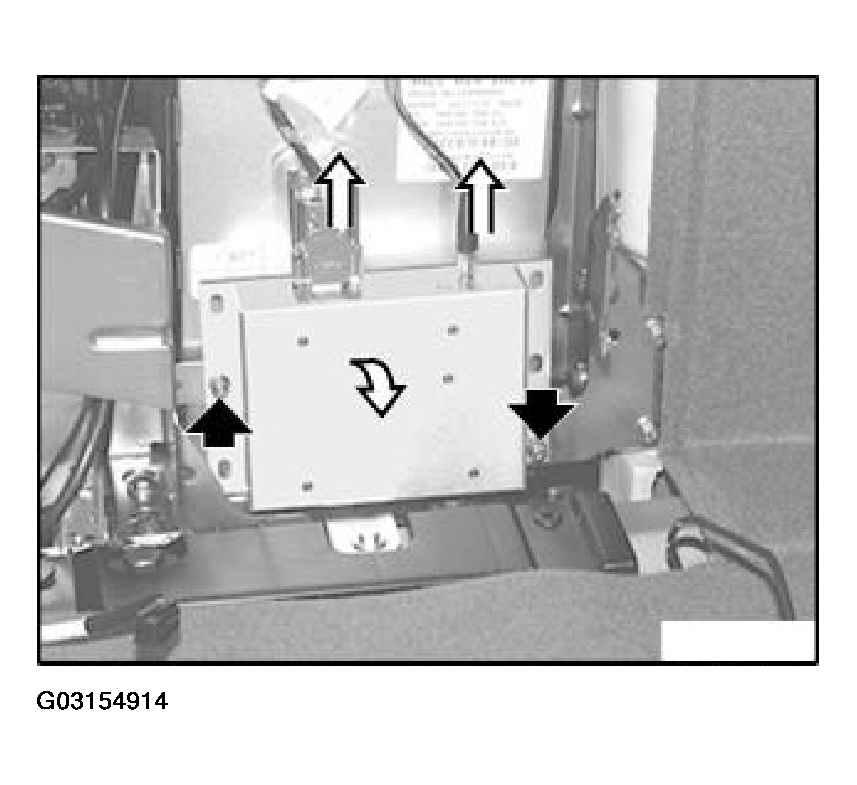

Open flap in rear left side panel.
Disconnect connector, unfasten nuts and remove receiver module.
