64 11 825 Replacing servodrive of recirculated air flaps (automatic A/C)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Up to 03/2000:

Remove glovebox on right. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE .

Release screws (1).

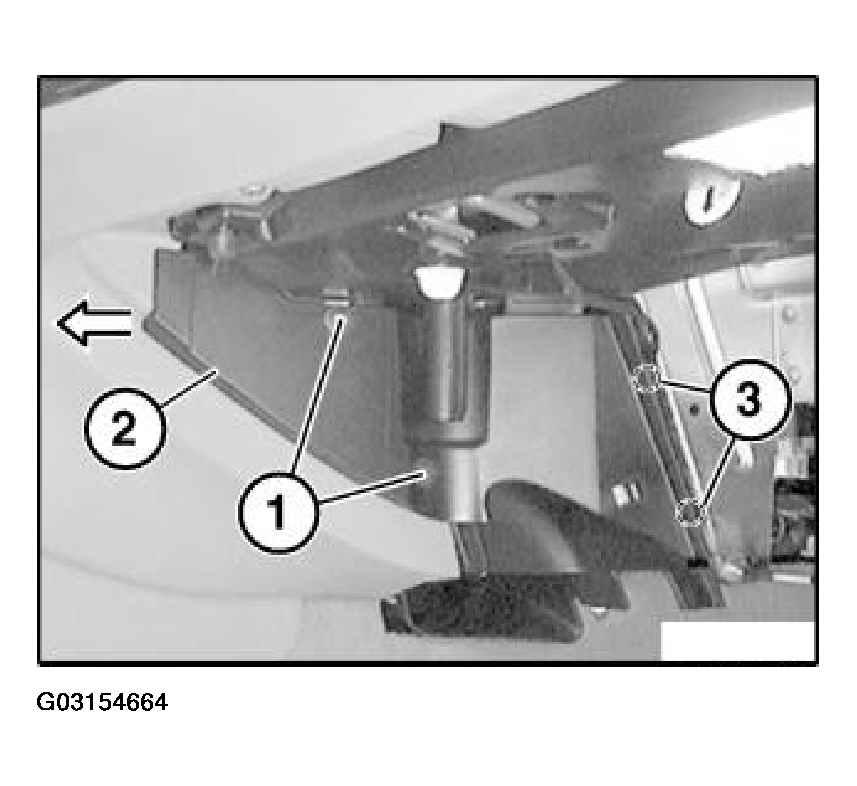

Pull cover on glovebox on left (2) in direction of arrow out of guides (3) and remove.

Fig 1: Removing Left Glovebox Cover

G03154664

Courtesy of BMW OF NORTH AMERICA, INC.

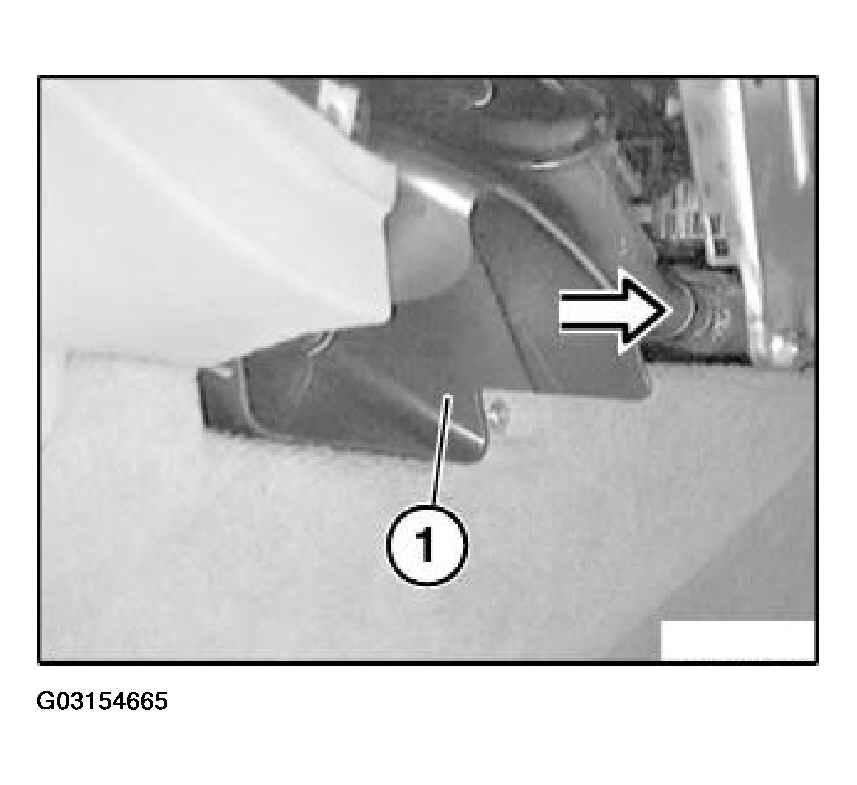

Unclip air duct for right footwell (1) and pull out in direction of arrow.

Fig 2: Releasing Right Footwell Air Duct

G03154665

Courtesy of BMW OF NORTH AMERICA, INC.

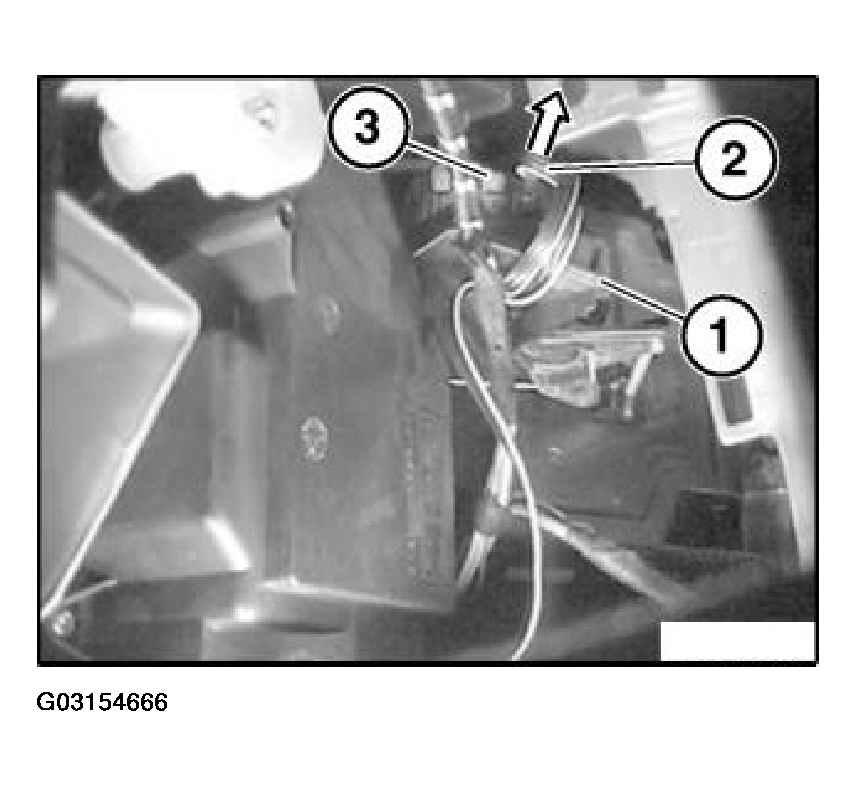

Disconnect connector (2).

Unclip lock (1) and remove servodrive (3) in direction of arrow.

Fig 3: Removing Servodrive (1 Of 2)

G03154666

Courtesy of BMW OF NORTH AMERICA, INC.

From 03/2000:

Remove trim for pedal assembly. See 51 45 185 REMOVING AND INSTALLING/REPLACING TRIM FOR PEDAL ASSEMBLY .

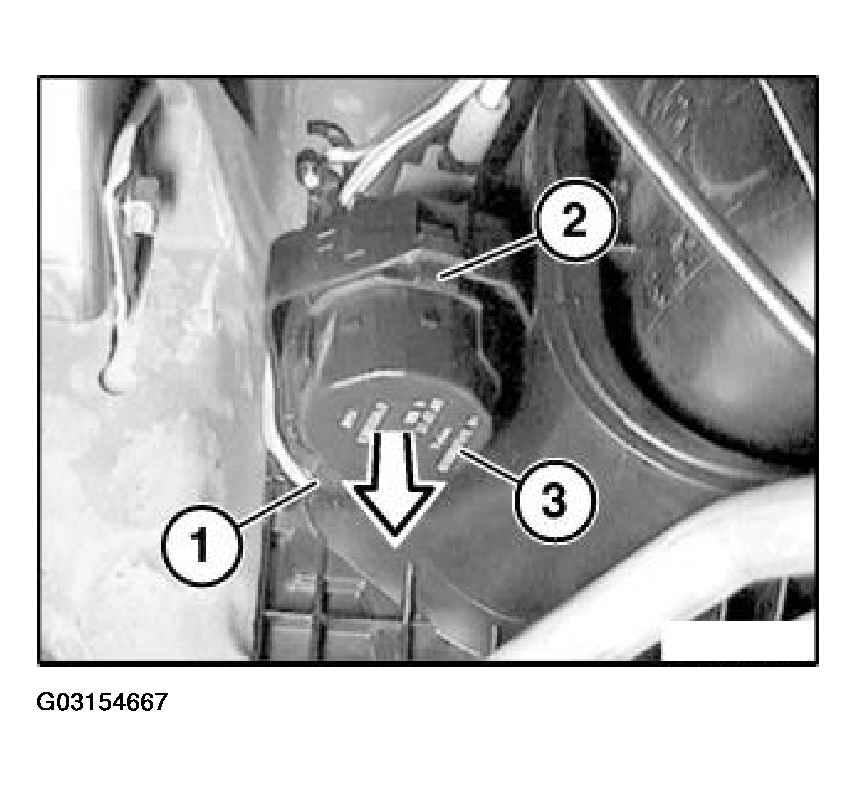

Unclip lock (2) and pull out servodrive (3) in direction of arrow.

Disconnect plug connection (1).

Fig 4: Removing Servodrive (2 Of 2)

G03154667

Courtesy of BMW OF NORTH AMERICA, INC.

All:

Installation:

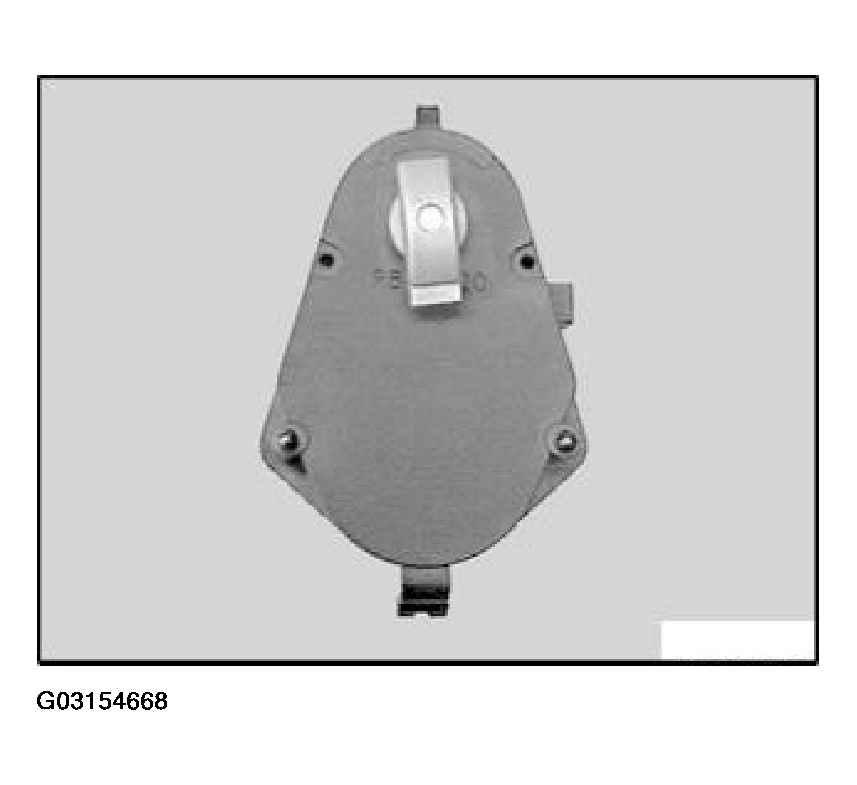

If necessary, align shaft of recirculated air flaps to position of servodrive.

Fig 5: Identifying Servodrive

G03154668

Courtesy of BMW OF NORTH AMERICA, INC.
