51 45 185 Removing and installing/replacing trim for pedal assembly
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.
Remove side carpet on left side of center console.

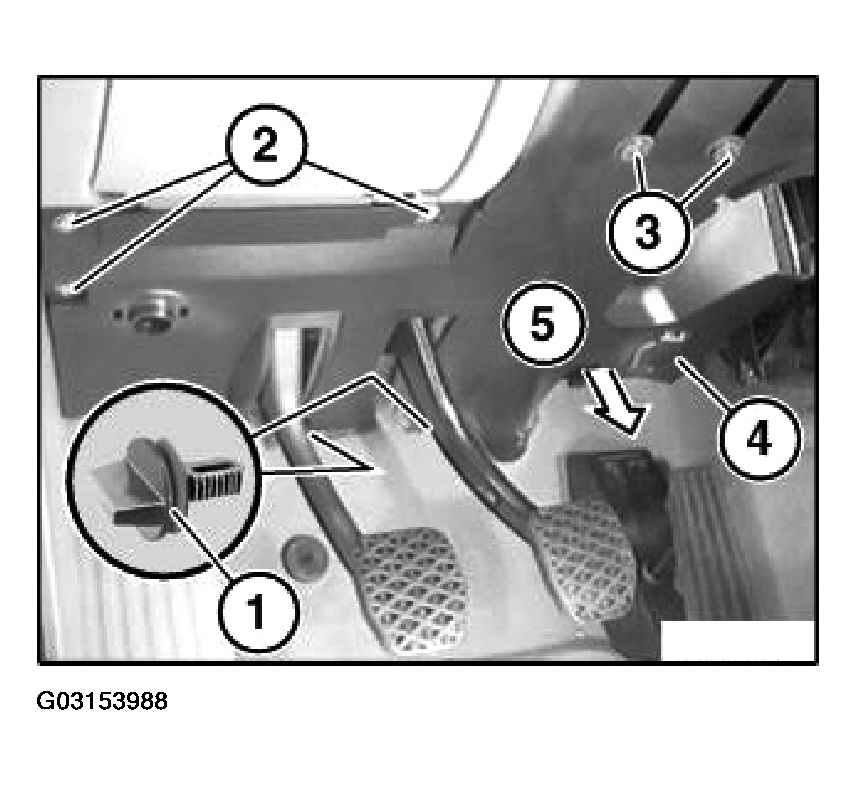

Turn toggle (1) and remove.
Release screws (2) and (3).
Lower trim for pedal assembly (5) a little and disconnect plug connections from gong (4).
Remove trim for pedal assembly (5) towards bottom.
