51 16 360 Removing and installing right glove box

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

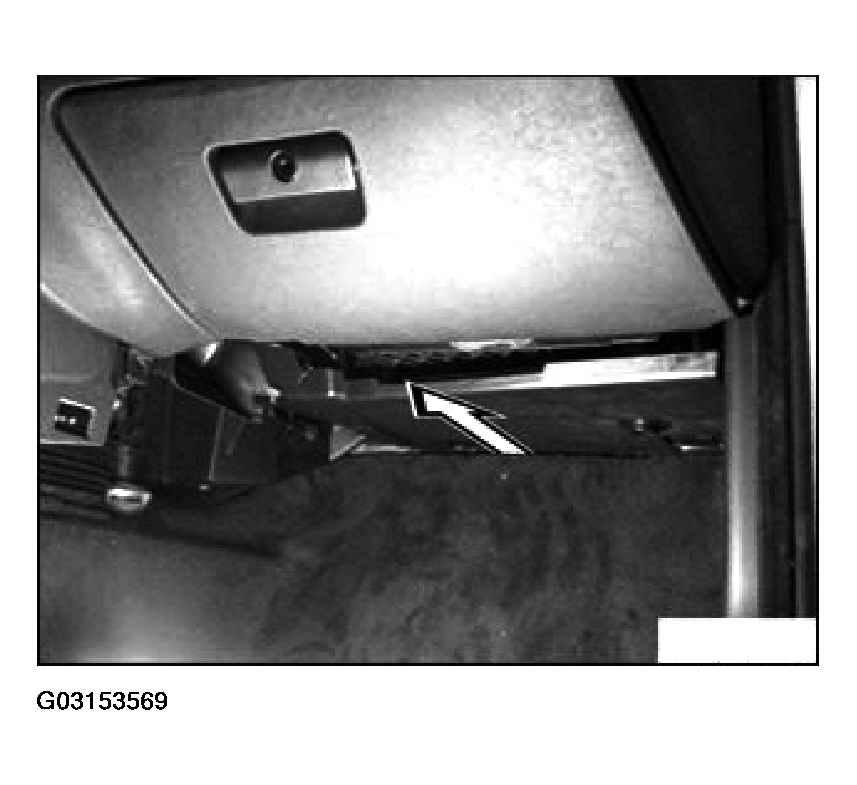

Pull trim panelling backwards to remove.

Fig 1: Pulling Trim Panelling Backwards

Courtesy of BMW OF NORTH AMERICA, INC.

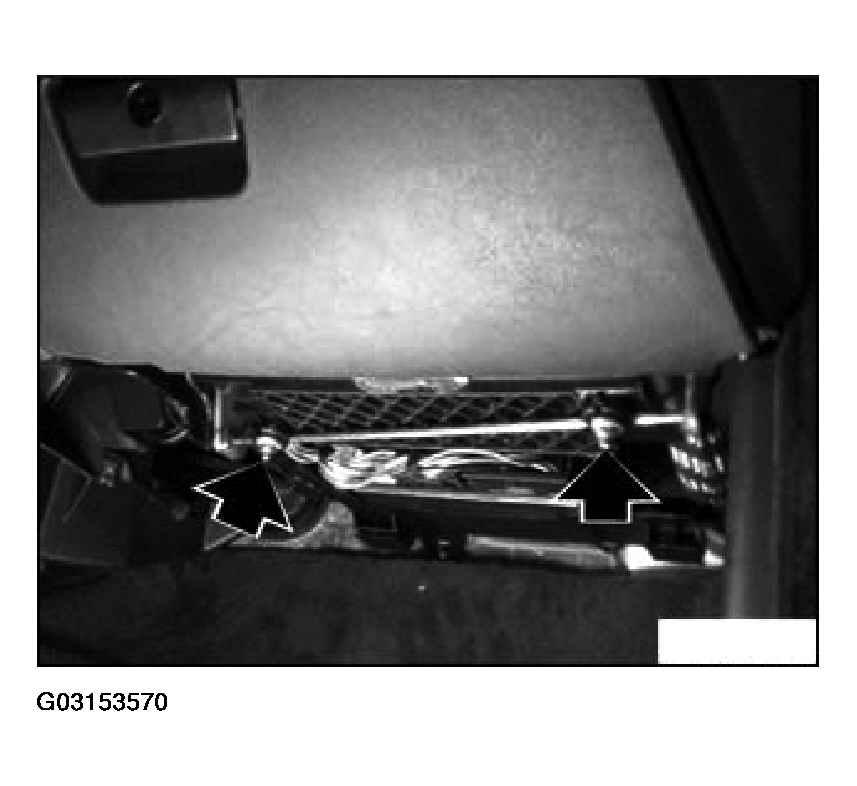

Loosen bolts.

Fig 2: Loosening Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

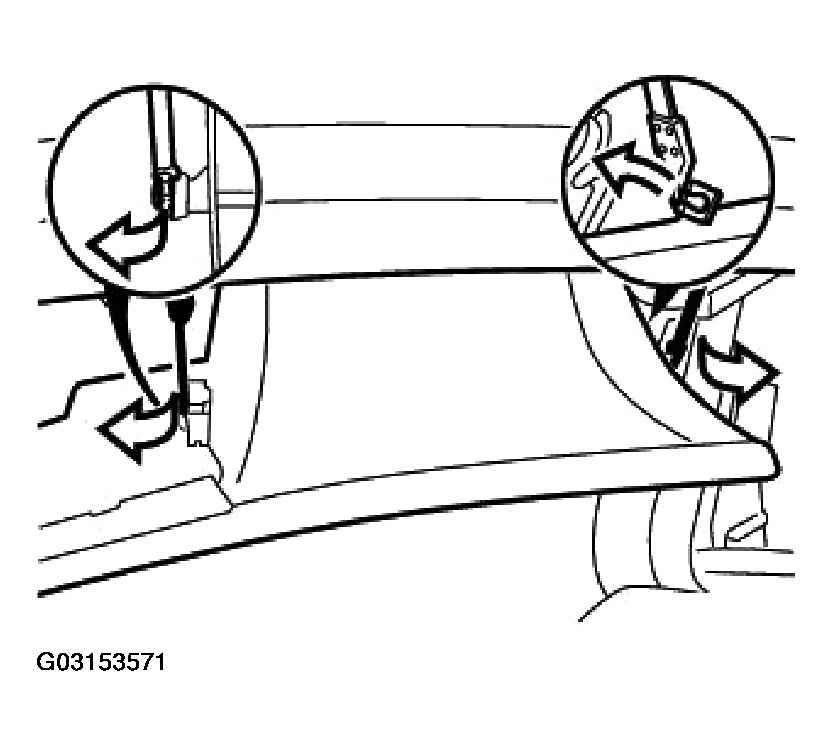

Unclip shock absorber and catch band. Pull glovebox backwards to remove.

Fig 3: Unclipping Shock Absorber And Catch Band

Courtesy of BMW OF NORTH AMERICA, INC.

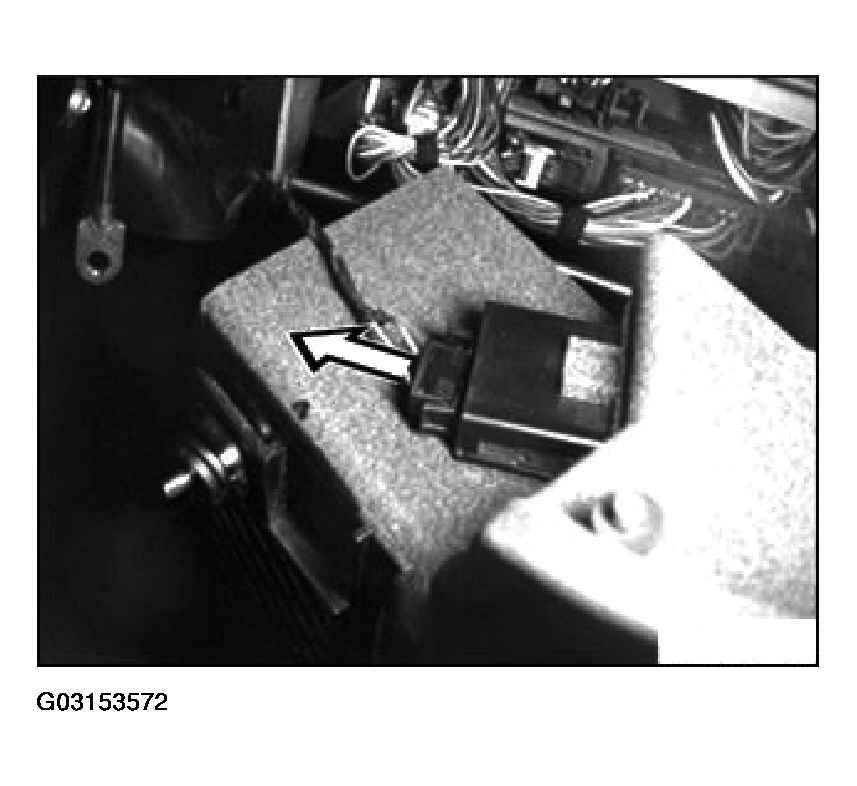

Twist glovebox, remove connector from accumulator light and remove glovebox.

Fig 4: Removing Connector From Accumulator Light

Courtesy of BMW OF NORTH AMERICA, INC.
