64 11 222 Replacing limit switch for fan of heater/air conditioner

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove panel on center console on right. See 51 16 220 REPLACING WOODEN FINISHERS FOR ODDMENTS TRAY (CENTER CONSOLE)

Remove cover from underside of glovebox. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX

Unfasten plug connection and disconnect.

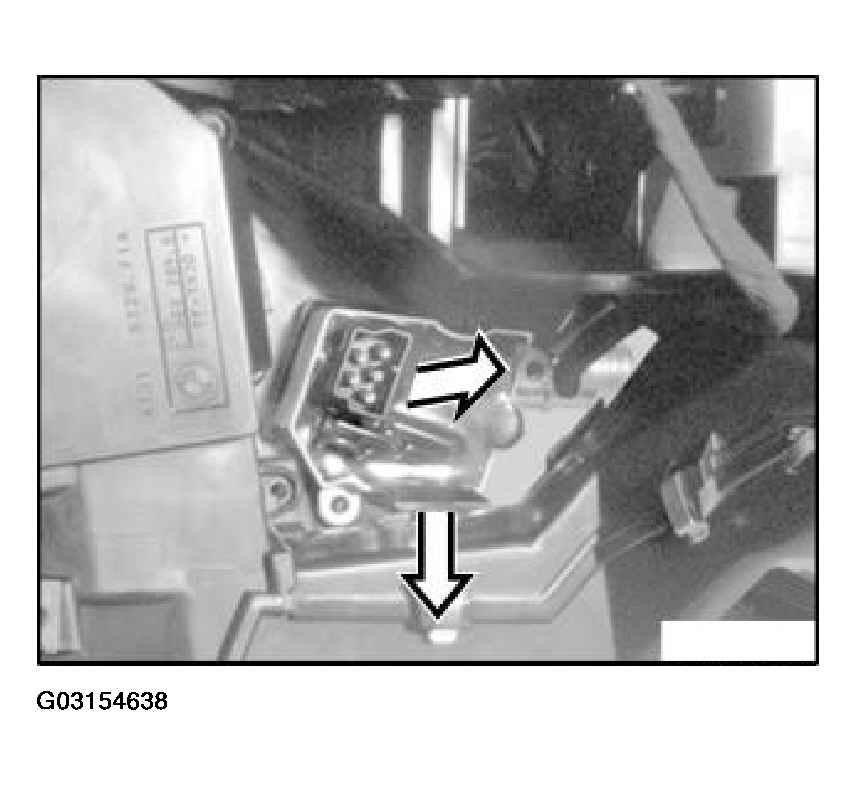

Fig 1: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock limit switch for fan and pull out in direction of arrow.

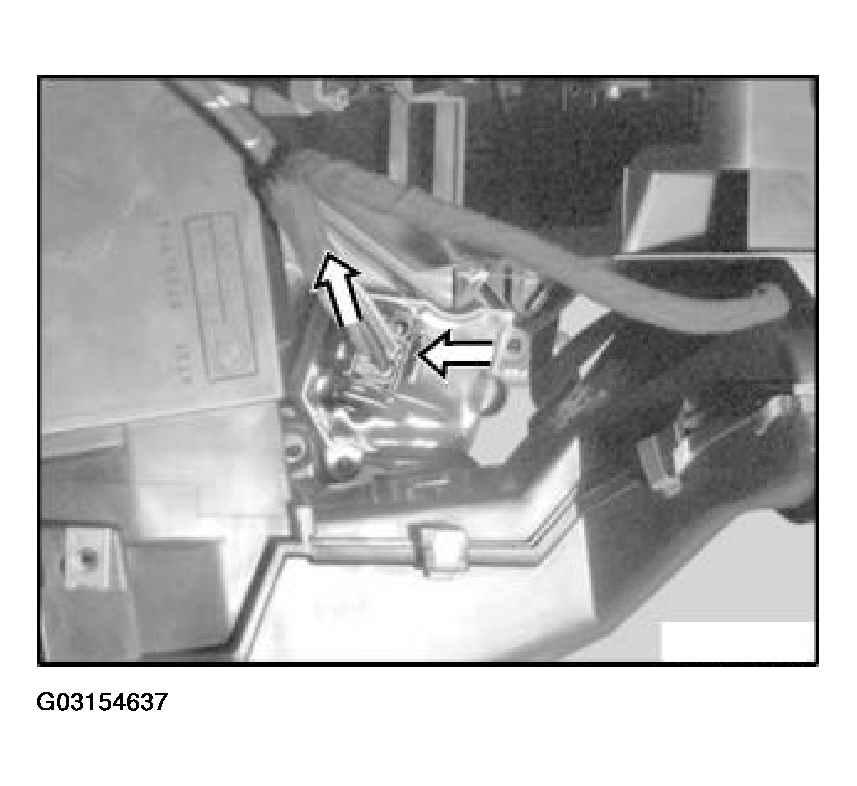

Fig 2: Releasing Fan Limit Switch

Courtesy of BMW OF NORTH AMERICA, INC.
