51 16 220 Replacing wooden finishers for oddments tray (center console)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove finisher for preselector lever, refer to 51 16 210 REMOVING AND INSTALLING / REPLACING FINISHER FOR PRESELECTOR LEVER .

Remove fresh-air grille in rear, refer to NOZZLE AND OUTLETS .

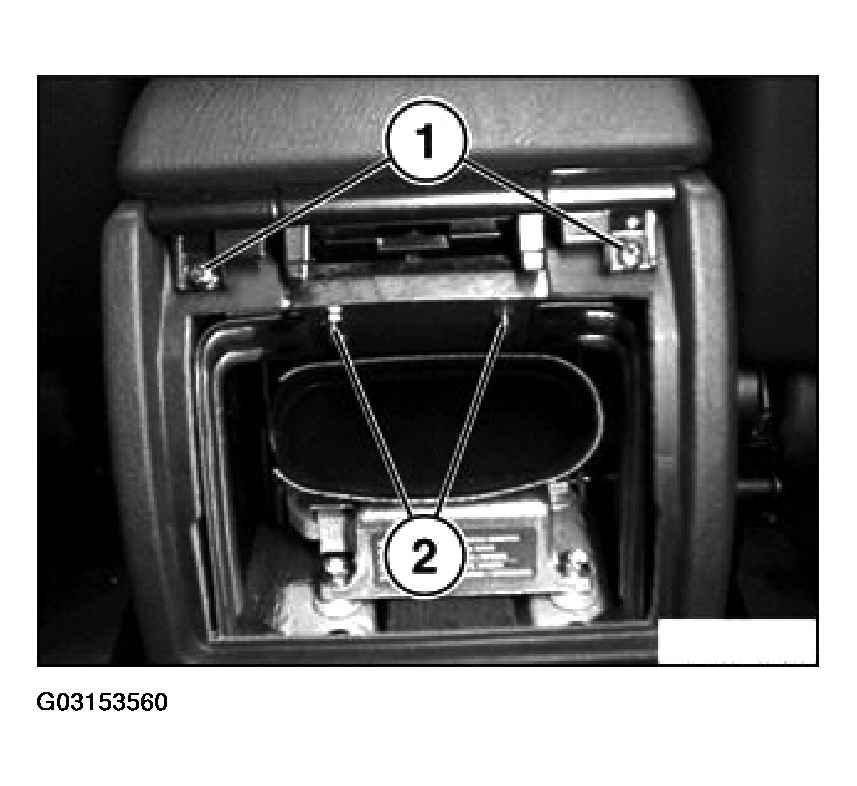

Unfasten screws (1) and nuts (2).

Fig 1: Unfastening Screws And Nuts

G03153560

Courtesy of BMW OF NORTH AMERICA, INC.

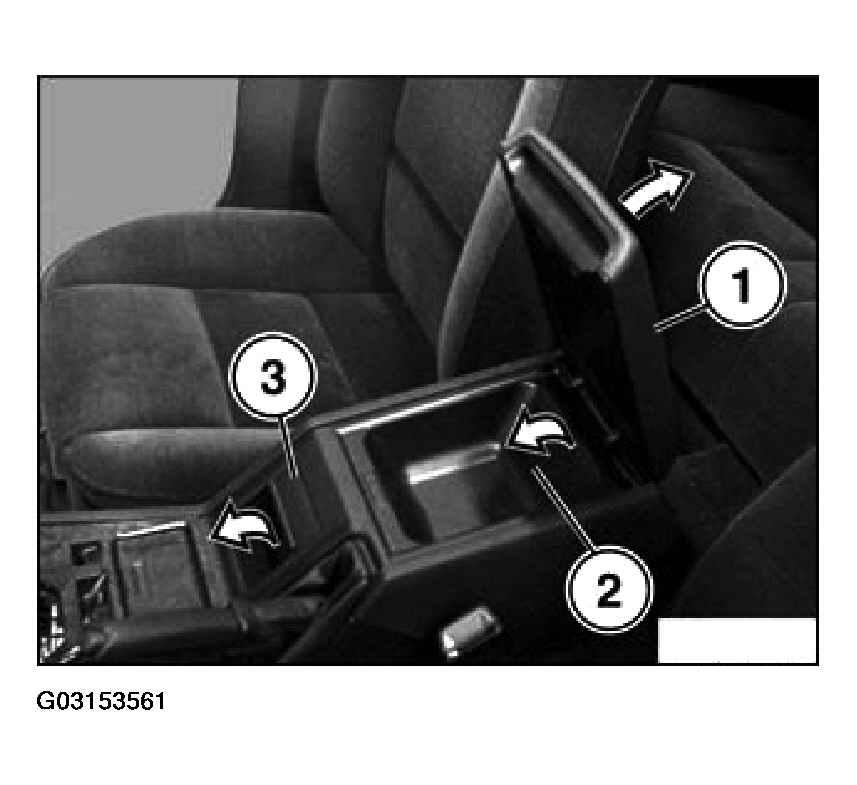

Open cover (1) and remove center console (2) (rear) at same time. Open glovebox (3) and unclip.

Fig 2: Opening Cover And Removing Center Console

G03153561

Courtesy of BMW OF NORTH AMERICA, INC.

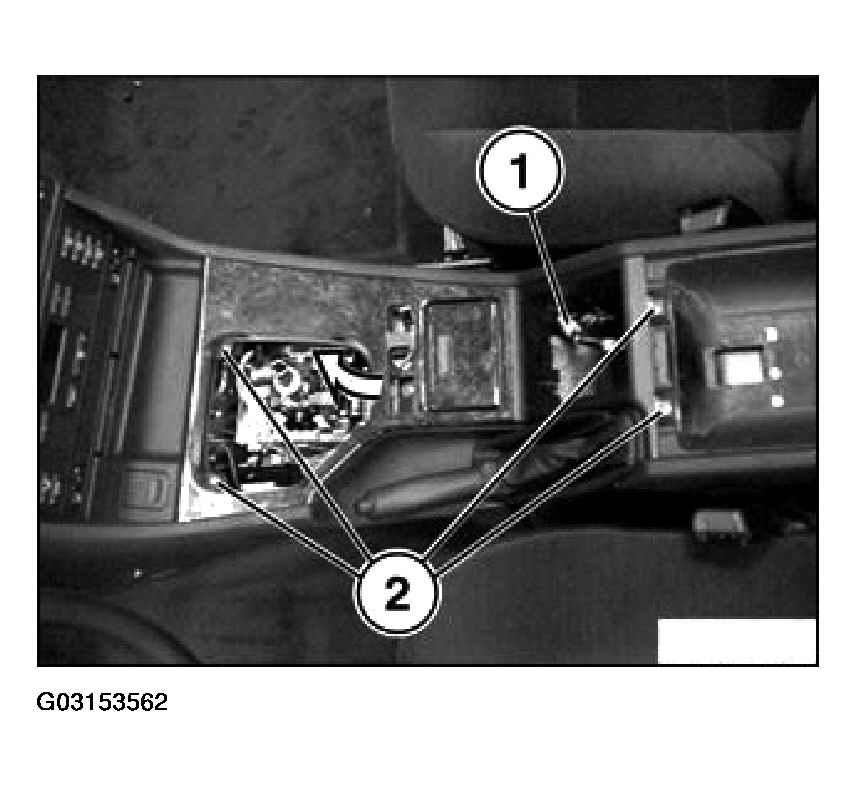

Unfasten plug connection (1) (ashtray lighting). Unfasten screws (2) and remove center console insert.

Fig 3: Unfastening Plug Connection And Screws

G03153562

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

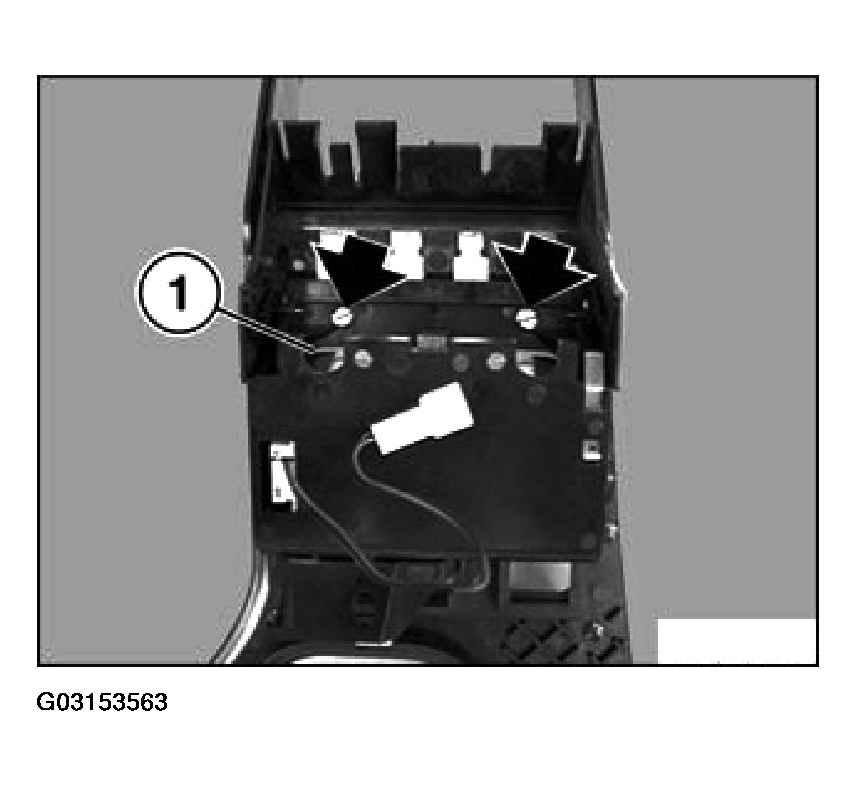

Open ashtray cover (1) and remove.

Fig 4: Opening Ashtray Cover

G03153563

Courtesy of BMW OF NORTH AMERICA, INC.

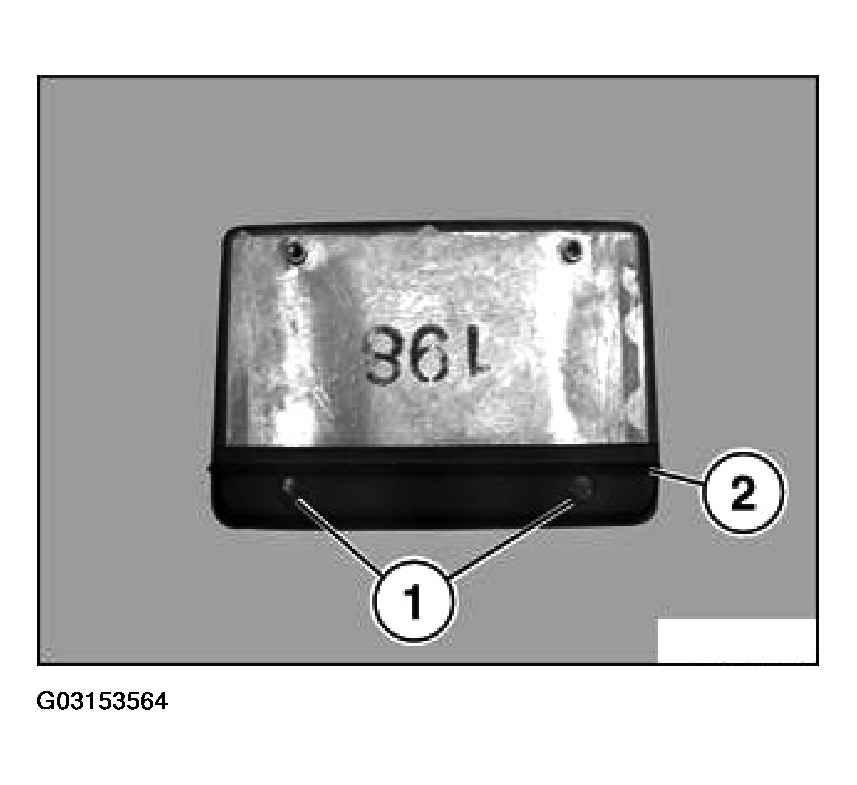

Unfasten screws (1) and remove insert (2) from wooden finisher strip.

Fig 5: Unfastening Screws And Removing Insert From Wooden Finisher Strip

G03153564

Courtesy of BMW OF NORTH AMERICA, INC.

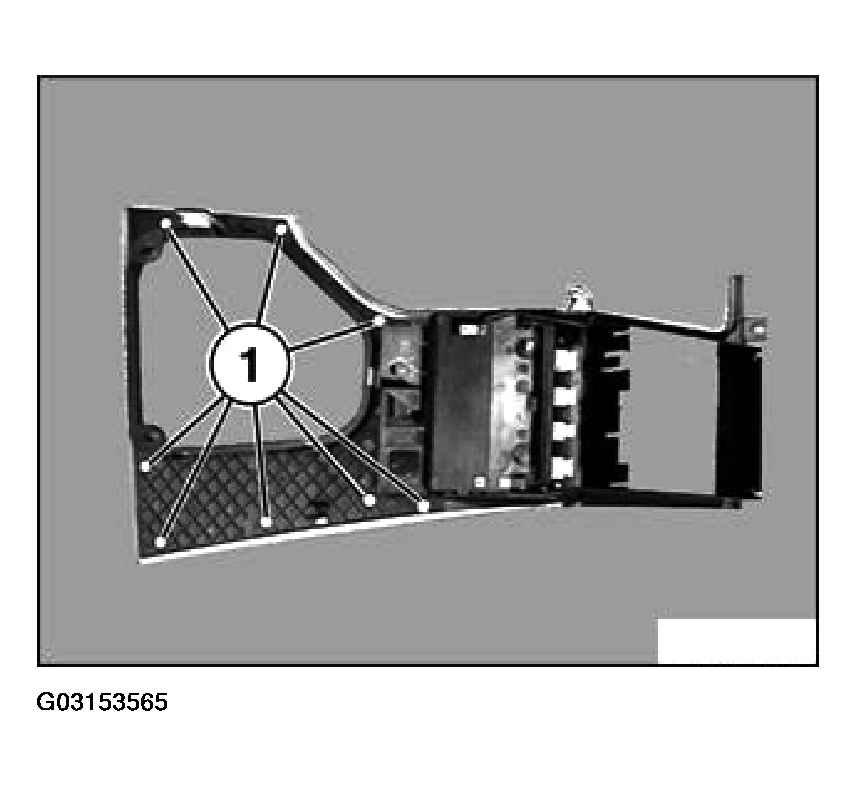

Unfasten screws (1) and remove wooden finisher strip.

Fig 6: Unfastening Screws And Removing Wooden Finisher Strip

G03153565

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

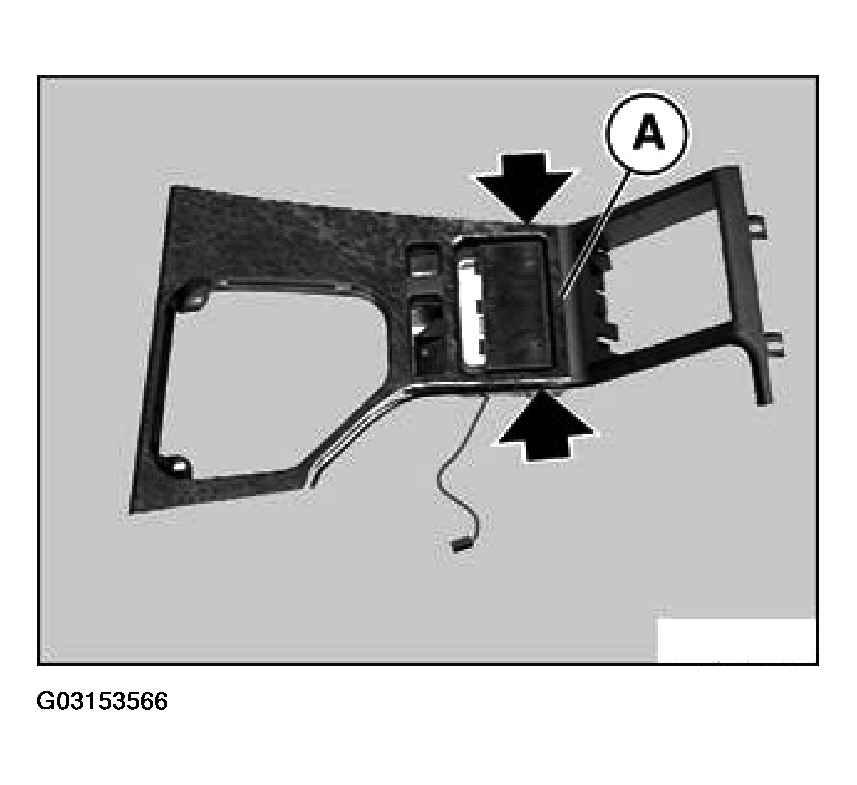

Install wooden finisher strip. Gap (A) should be as small as possible, then tighten down screws.

Fig 7: Installing Wooden Finisher Strip

G03153566

Courtesy of BMW OF NORTH AMERICA, INC.
