64 12 700 Removing and installing/replacing latent heat accumulator: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

When replacing, flush cooling system due to salt leaks. See 17 00 005 DRAINING AND TOPPING UP COOLANT .

Remove A-pillar trim from right footwell and remove right rocker strip.

Remove right glovebox. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX .

Remove entrance cover strip at front right. See 51 47 000 REMOVING AND INSTALLING/REPLACING THE FRONT (INSIDE) LEFT OR RIGHT ROCKER PANEL STRIP .

Release screw and pull side carpet on right in direction of arrow out of retainers.

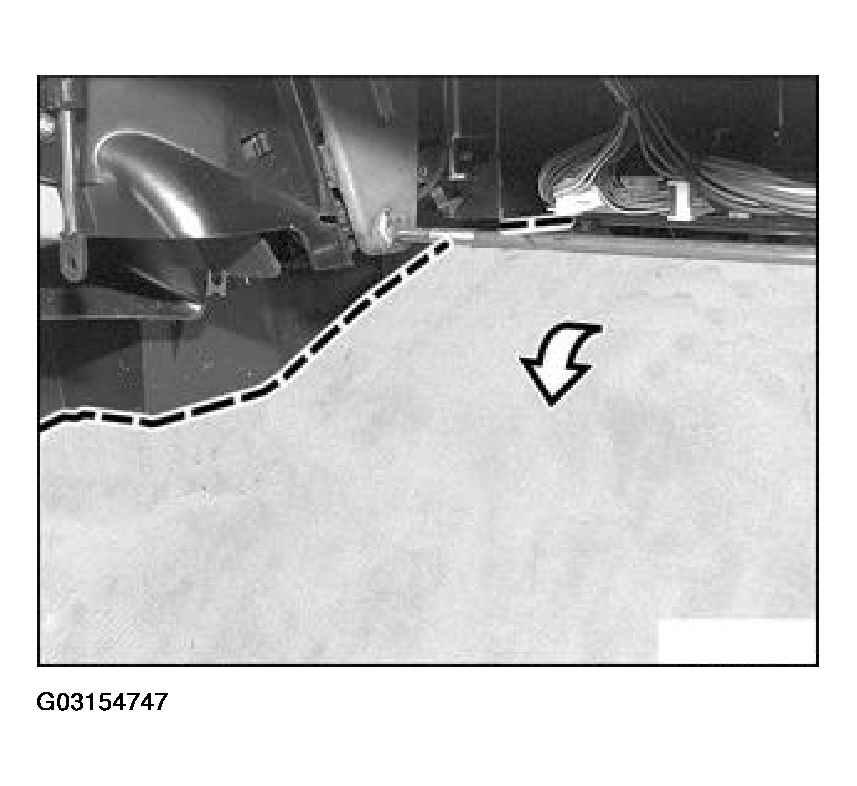

Fig 1: Removing Right Side Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Cut open carpet floor as far as possible under heater and fold back in direction of arrow.

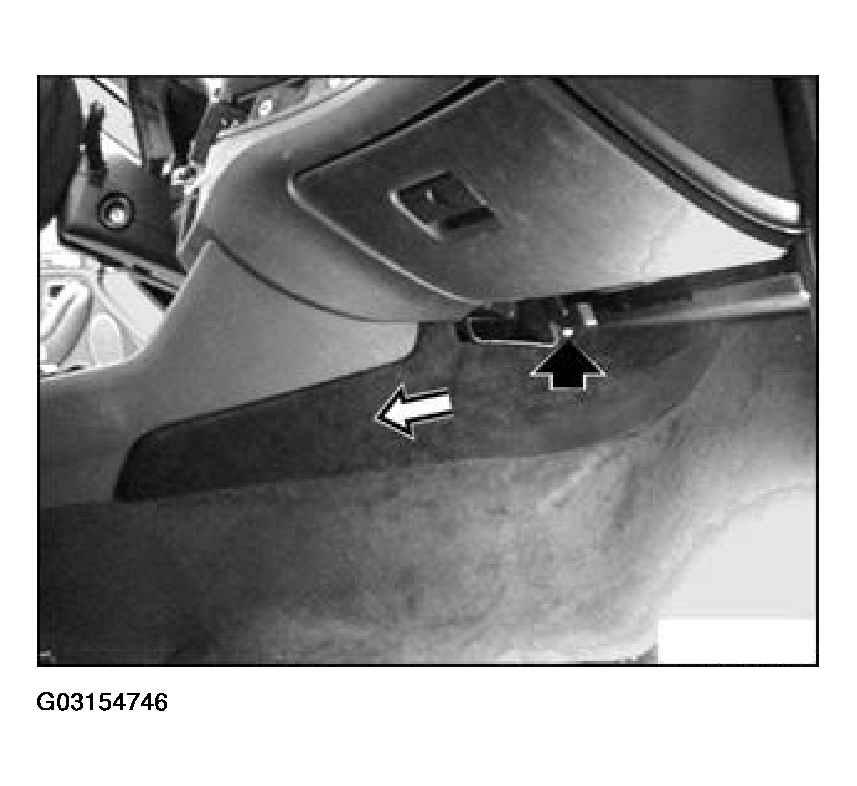

Fig 2: Removing Floor Carpet

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws and raise lines in direction of arrow.

CAUTION: If necessary, catch escaping coolant with cleaning cloth or receptacle.

Installation:

Replace sealing rings.

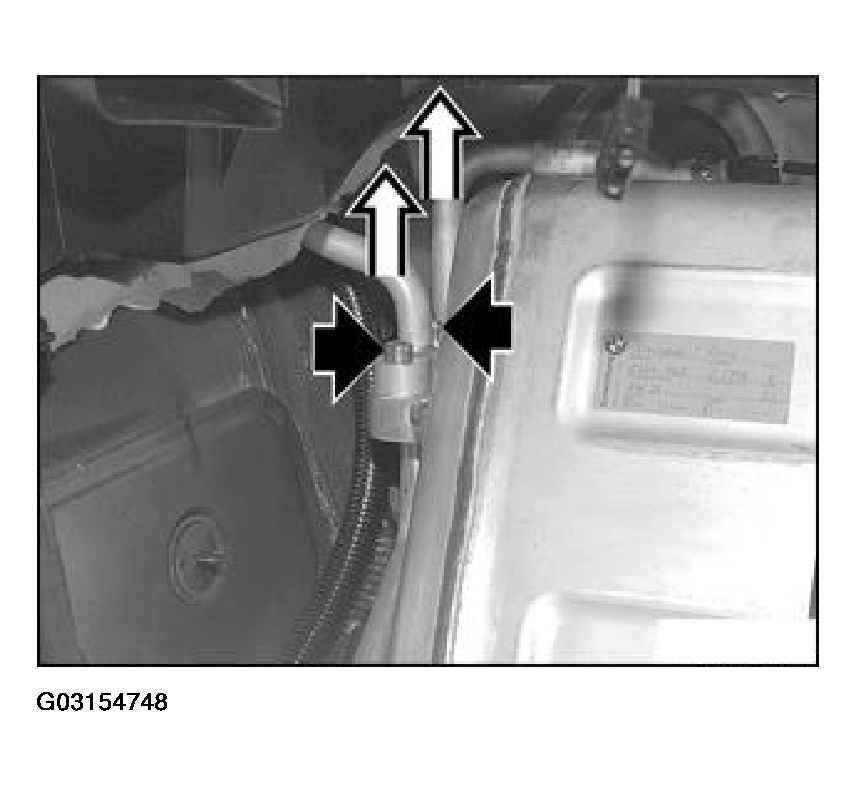

Fig 3: Releasing Screws And Raising Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Unhook holder in direction of arrow.

Lift out latent heat accumulator as vertically as possible to prevent coolant from escaping from accumulator.

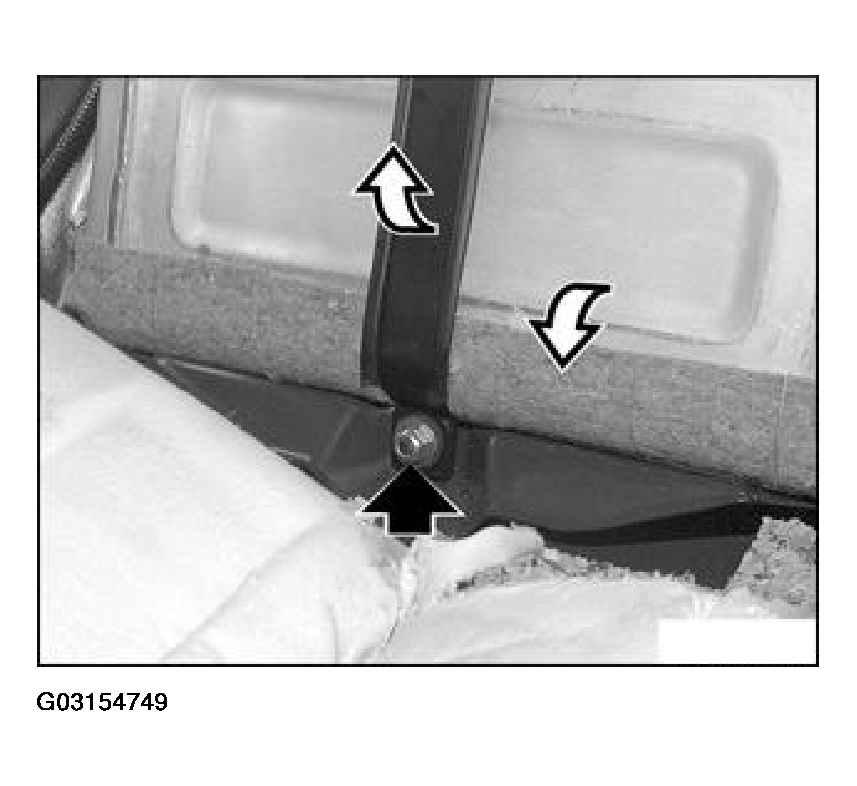

Fig 4: Removing Latent Heat Accumulator
