51 47 000 Removing and installing / replacing the front (inside) left or right rocker panel strip

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect rocker panel strip from front and rear finisher strip.

Unclip rocker panel strip from floor plate by pulling upwards.

If necessary, lift clips off floor plate.

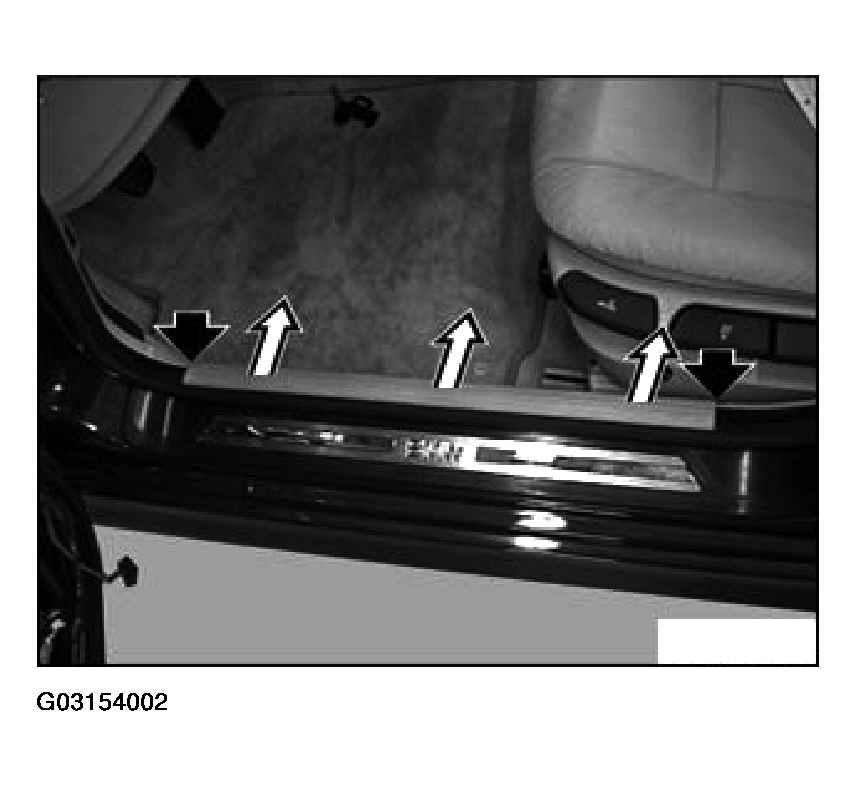

Fig 1: Lifting Clips Off Floor Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Slide clips onto rocker panel strip.

If necessary, replace damaged clips.

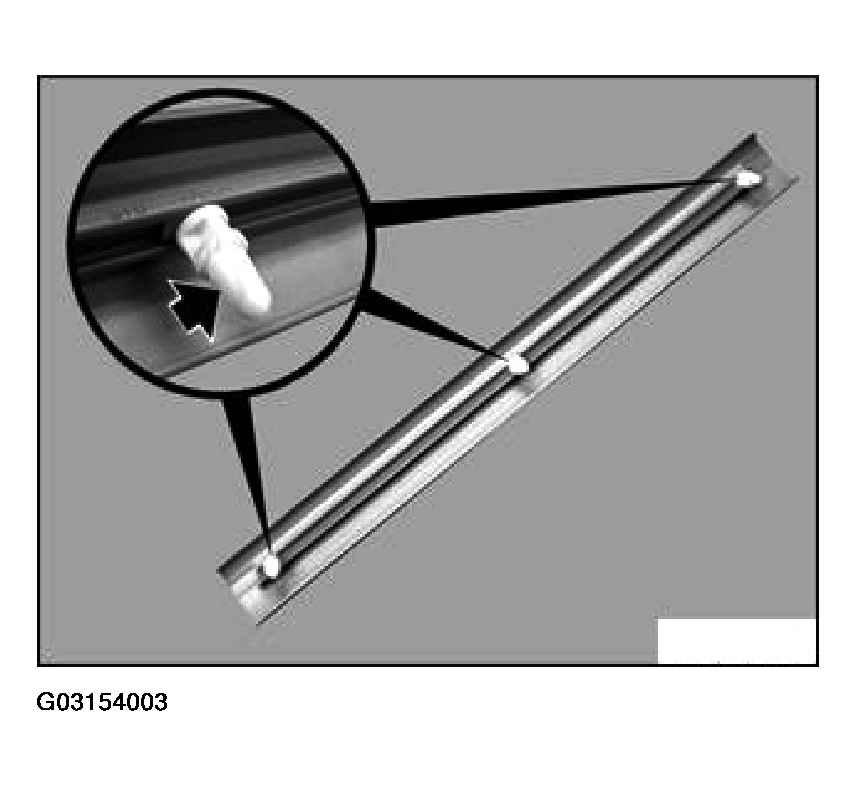

Fig 2: Replacing Damaged Clips

Courtesy of BMW OF NORTH AMERICA, INC.
