11 14 080 Removing and installing timing case cover, top left (M62 VANOS from 9/98)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove left cylinder head cover. These tasks are described in the work step Removing and installing/sealing both cylinder head covers, refer to 11 12 004 REMOVING AND INSTALLING/SEALING BOTH CYLINDER HEAD COVERS (M62) .

Remove fan clutch with impeller, refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN COUPLING (M62) .

Remove solenoid valve of camshaft adjustment unit, left, refer to 11 36 585 REMOVING AND INSTALLING/REPLACING SOLENOID VALVE OF CAMSHAFT ADJUSTMENT UNIT, LEFT (M62 VANOS FROM 9/98) .

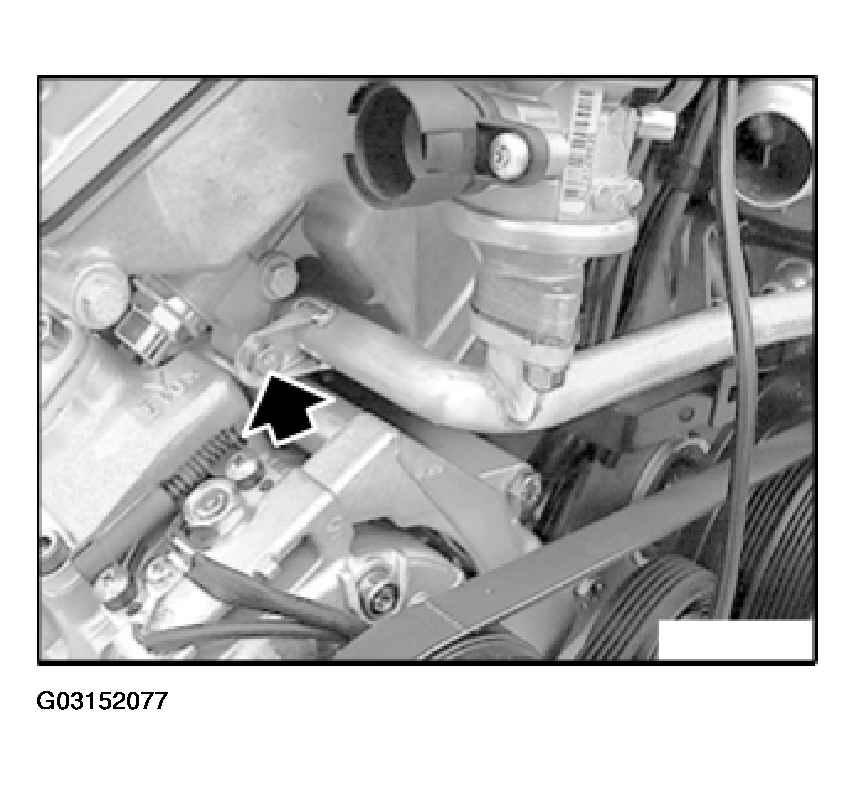

Disconnect plug connection to check valve.

Detach secondary-air line on timing case cover, top left and right.

Detach secondary-air line on bracket and remove.

Installation

Clean sealing faces on cylinder head, replace sealing ring on secondary-air line and apply a thin coat of grease as anti-friction agent.

Fig 1: Disconnecting Plug Connection To Check Valve

Courtesy of BMW OF NORTH AMERICA, INC.

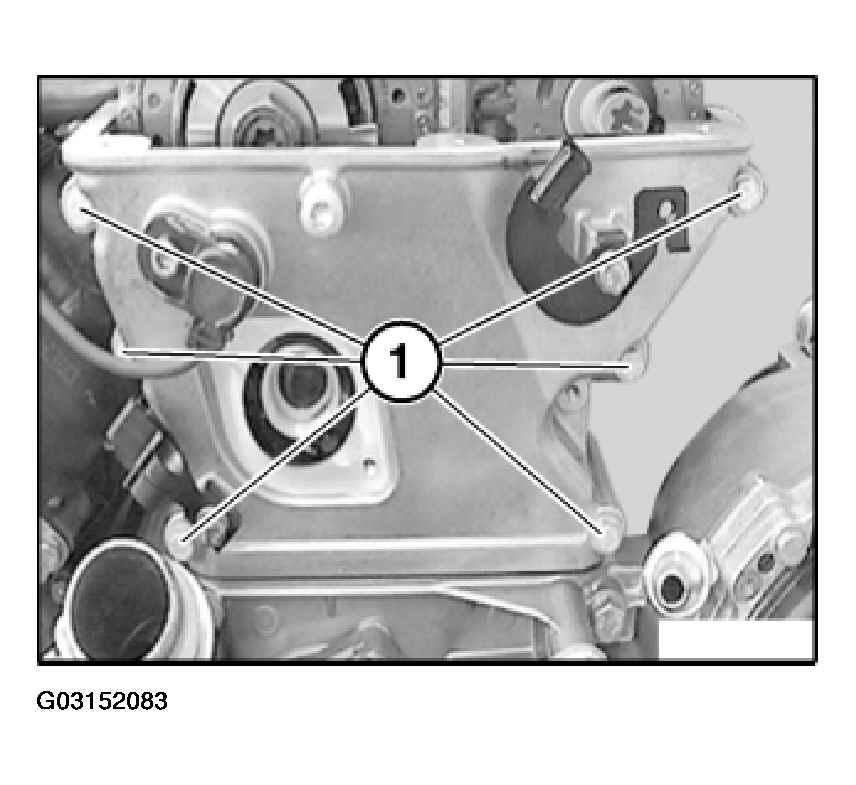

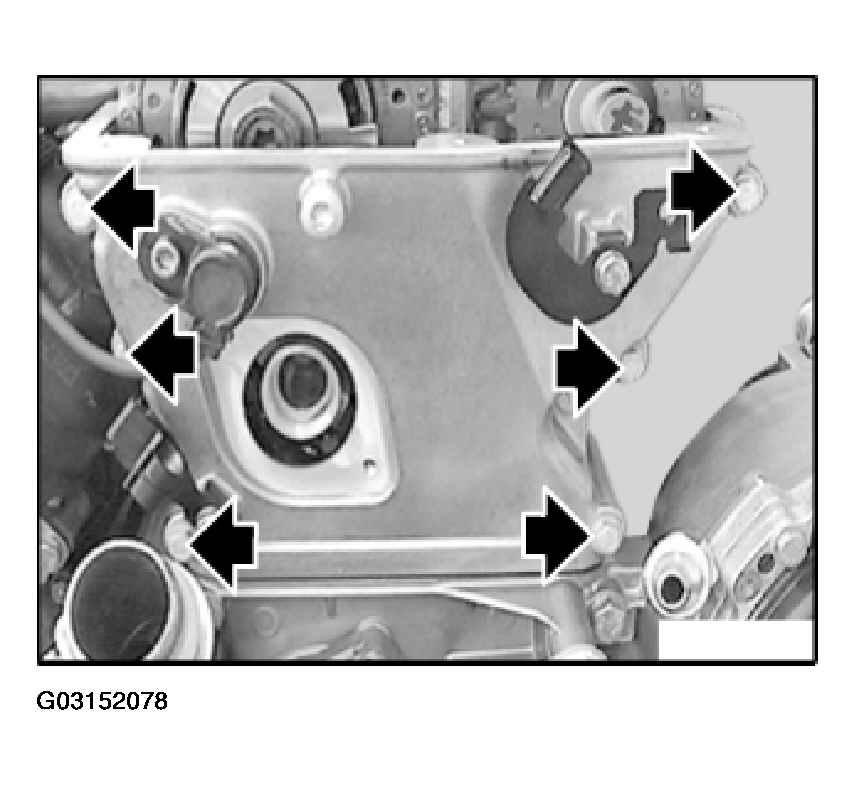

Unfasten timing case cover.

Fig 2: Unfastening Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove rubber sealing strip.

Installation

Clean groove for rubber profile seal and sealing surfaces of remains of seal.

Fig 3: Identifying Rubber Sealing Strip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Keep sealing faces clean and free of oil.

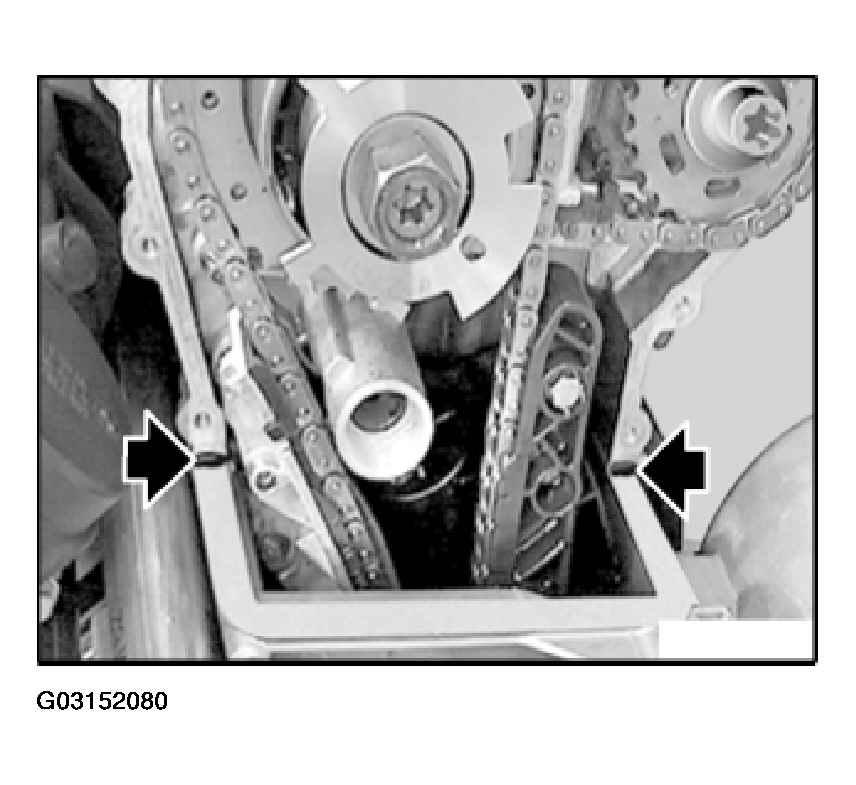

Apply coat of Drei Bond 1209 to joint between cylinder head and lower timing case cover (refer to).

Fig 4: Applying Coat Of Drei Bond 1209 To Joint

Courtesy of BMW OF NORTH AMERICA, INC.

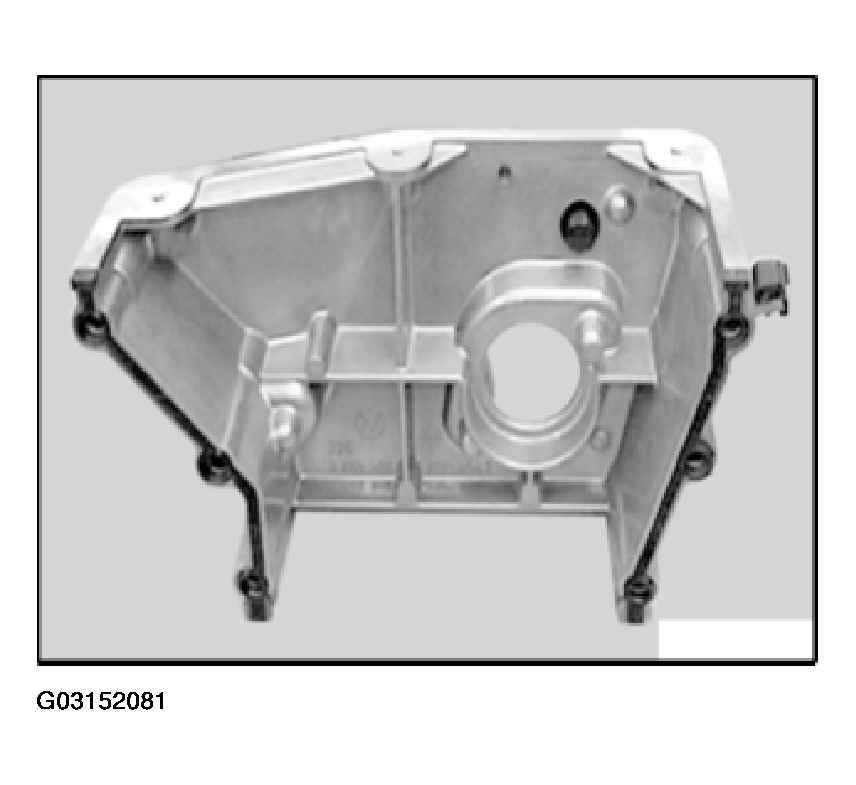

Seat new rubber seal in groove.

Fig 5: View Of New Rubber Seal In Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

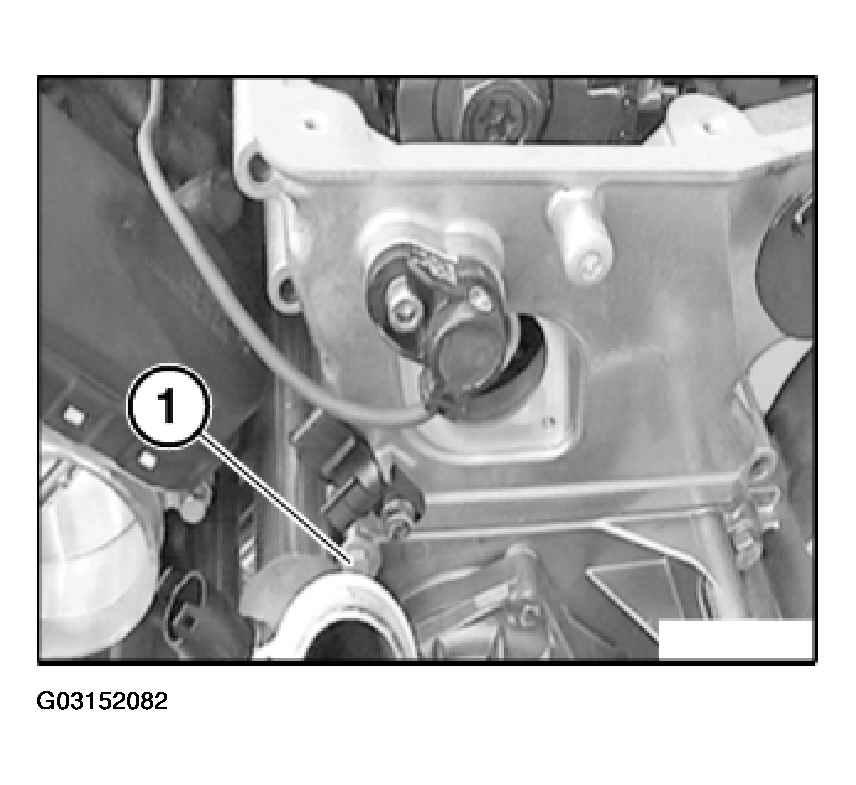

Ensure that seal is correctly seated, then fit timing case cover with inserted screw (1).

NOTE: It is not possible to insert screw (1) after fitting the timing case cover.

Fig 6: Fitting Timing Case Cover With Inserted Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install screws (1) and fit flush with cylinder head.

Fig 7: Installing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Remove outer and inner gasket from cylinder head cover.

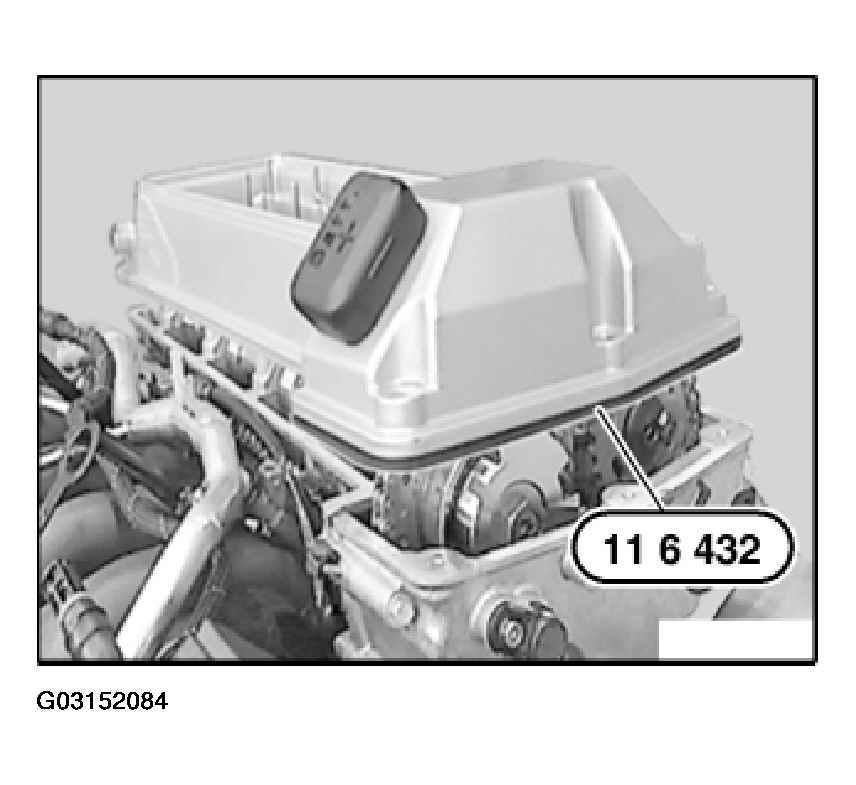

Insert special tool 11 6 432 from special tool kit 11 6 430 in groove of cover and fit cylinder head cover.

Fig 8: Removing Outer And Inner Gasket From Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

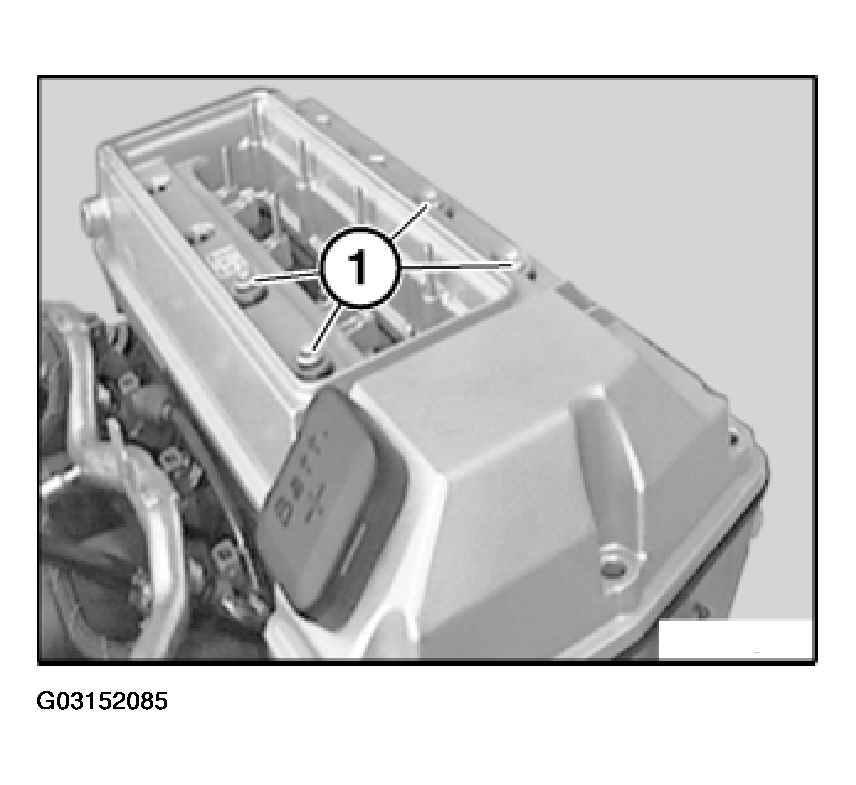

Install cover nuts (1) and tighten down uniformly in 1/2 turn steps.

Tightening torque, refer to 11 12 11AZ in ENGINE - TIGHTENING TORQUES - 540i .

NOTE: The timing case cover is pressed down onto level of cylinder head by cylinder head cover.

Fig 9: Installing Cover Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

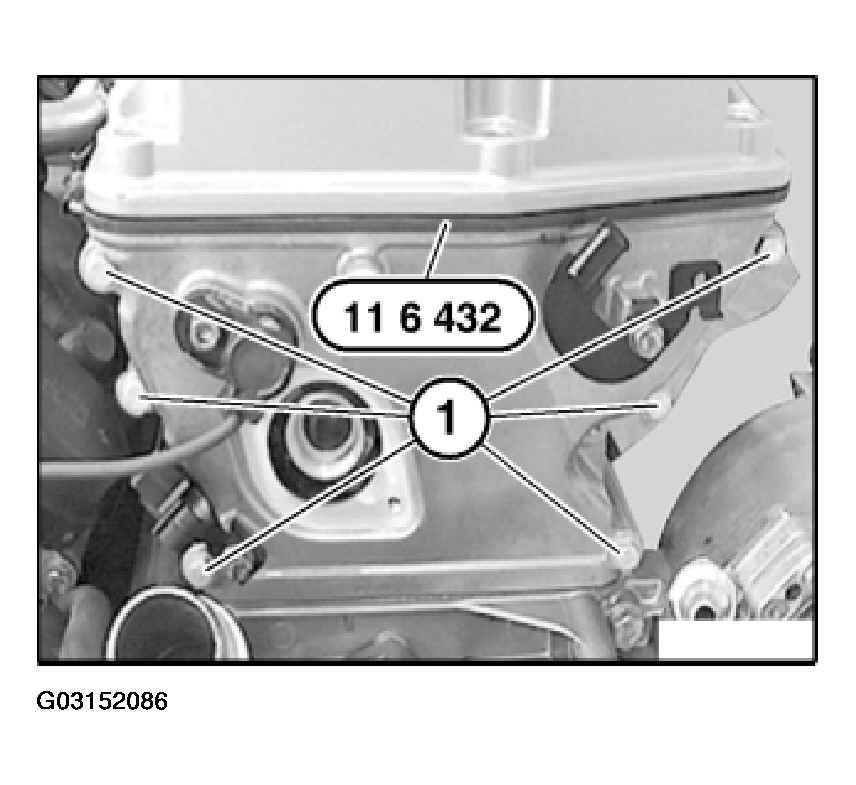

Tighten screws (1) on timing case cover in two passes.

Fig 10: Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cylinder head cover and remove special tool 11 6 432.

Fig 11: Removing Cylinder Head Cover And Special Tool 11 6 432

Courtesy of BMW OF NORTH AMERICA, INC.

Remove solenoid valve of camshaft adjustment unit, left, refer to 11 36 585 REMOVING AND INSTALLING/REPLACING SOLENOID VALVE OF CAMSHAFT ADJUSTMENT UNIT, LEFT (M62 VANOS FROM 9/98) .

Assemble engine.
