11 36 585 Removing and installing/replacing solenoid valve of camshaft adjustment unit, left (M62 VANOS from 9/98)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

Remove intake filter housing with air-mass flow sensor.

Remove fan impeller with fan clutch,

refer to 11 52 020 REMOVING AND INSTALLING OR REPLACING FAN COUPLING (M62) .

Unfasten drain plug for coolant on left engine block.

Drain and dispose of coolant.

Installation

Replace sealing ring on drain plug.

Tightening torque, refer to 11 11 5AZ in ENGINE - TIGHTENING TORQUES - 540i .

Top cup coolant. Vent cooling system and check for leaks, refer to 17 00 005 DRAINING AND TOPPING UP COOLANT .

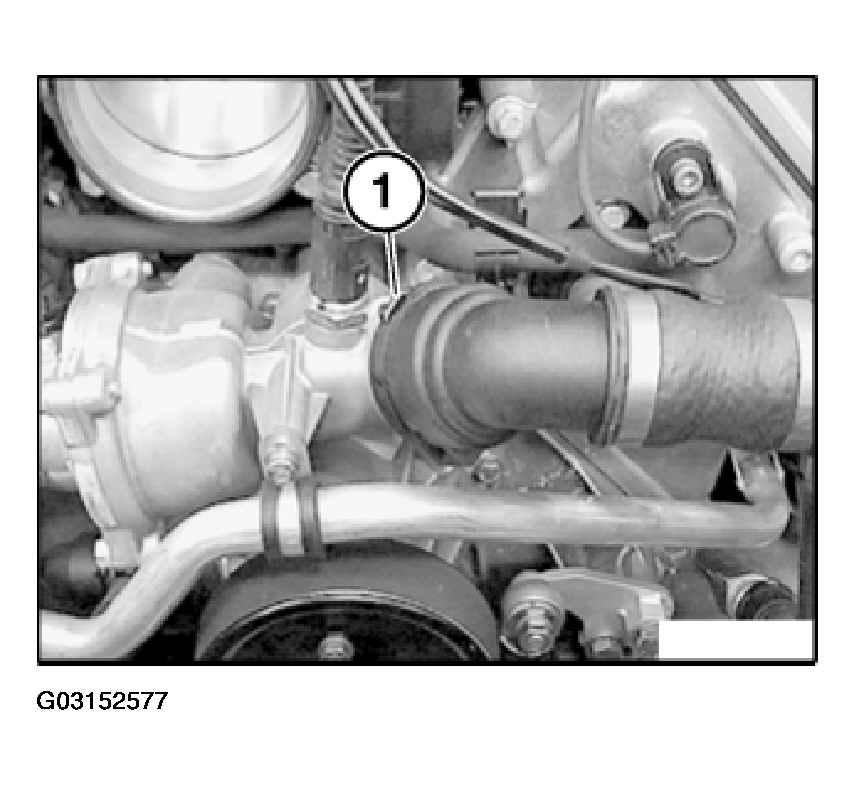

Pull lock (1) and detach water hose.

Installation

Refer to COOLING SYSTEM - REPAIR INSTRUCTIONS .

Fig 1: Pulling Lock (1) And Detach Water Hose

G03152577

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect connector.

Release screws on sealing flange.

Fig 2: Releasing Screws On Sealing Flange

G03152578

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The sealing flange seals the timing case cover via the solenoid valve.

If necessary, clean solenoid valve with a cloth.

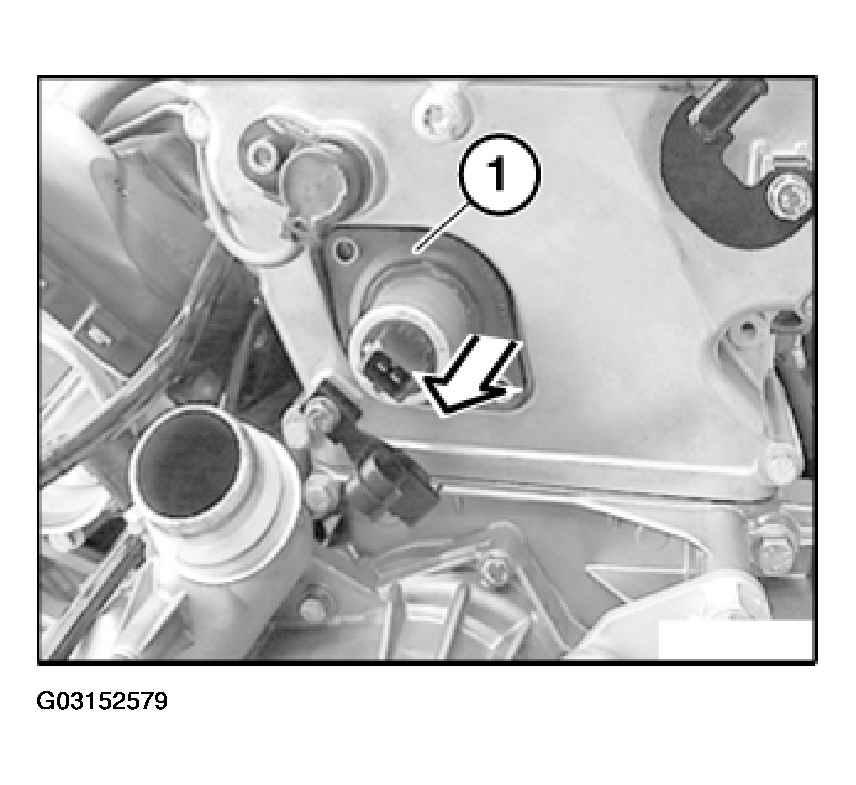

Remove sealing flange (1).

Fig 3: Removing Sealing Flange (1)

G03152579

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Once it has been removed, oil drips from the solenoid valve.

Have a cleaning cloth ready.

Make sure no oil drips onto the belt drive. Remove any remnants of oil immediately with cleaning cloth.

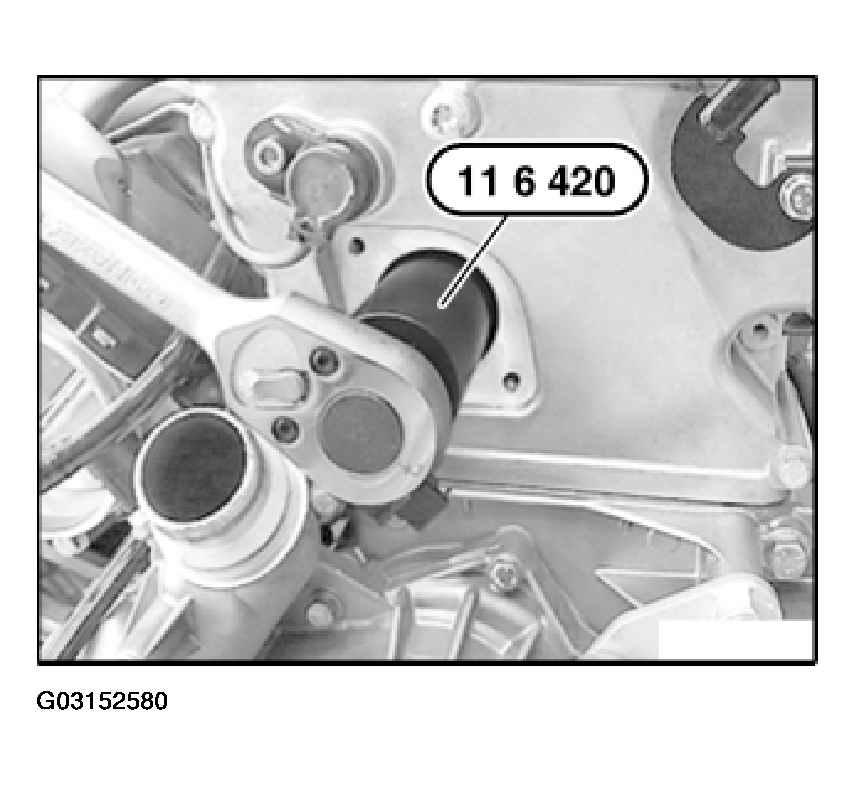

Release solenoid valve with special tool 11 6 420.

Fig 4: Releasing Solenoid Valve With Special Tool 11 6 420

G03152580

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install solenoid valve (1).

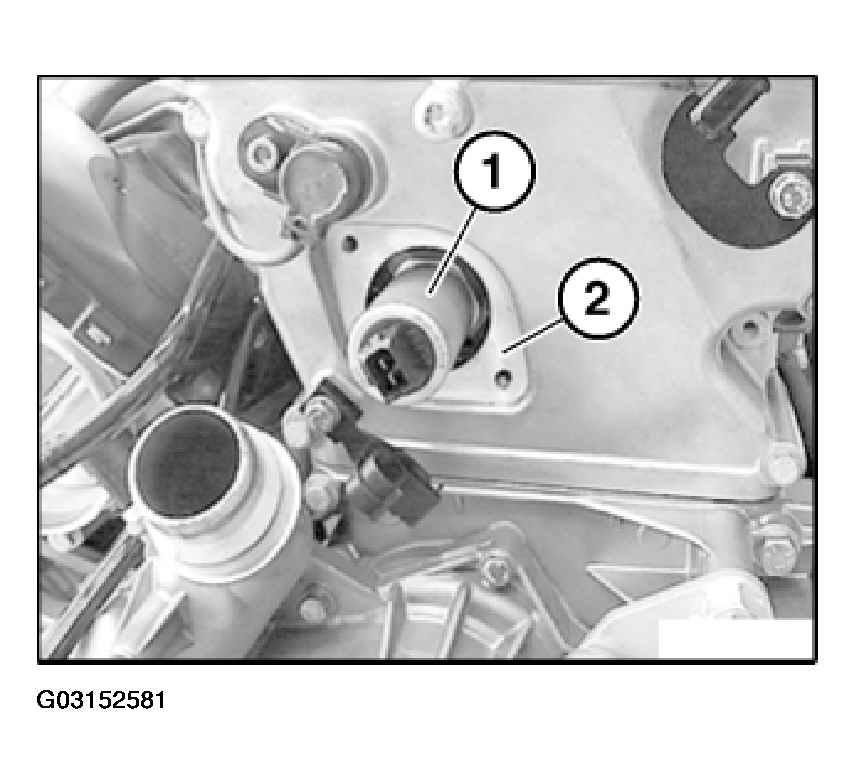

Clean solenoid valve (1) and sealing face (2).

Fig 5: Cleaning Solenoid Valve And Sealing Face

G03152581

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Tighten down solenoid valve with special tool 11 6 420.

Tightening torque, refer to 11 36 12AZ in ENGINE - TIGHTENING TORQUES - 540i .

Fig 6: Tightening Down Solenoid Valve With Special Tool 11 6 420

G03152582

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Check sealing flange (1), replace if necessary.

Apply a light coat of oil to inside of sealing flange (1) at sealing face to solenoid valve and carefully install.

Fig 7: Checking Sealing Flange

G03152583

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

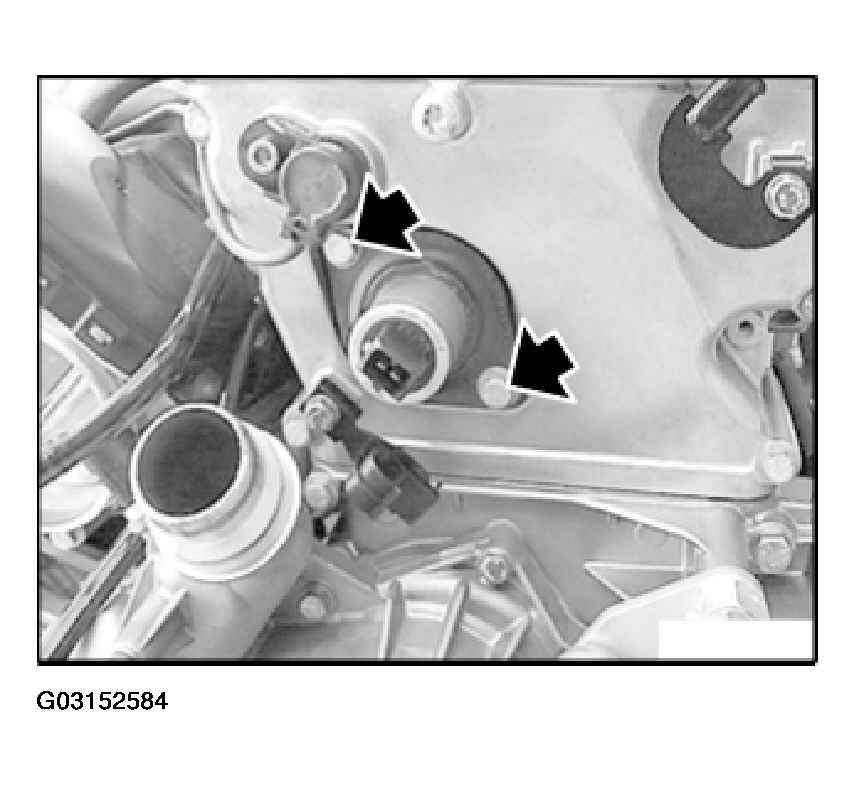

Insert screws on sealing flange and tighten down.

Fig 8: Inserting Screws On Sealing Flange

G03152584

Courtesy of BMW OF NORTH AMERICA, INC.
