11 12 503 Dismantling and reassembling cylinder head (M62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder head removed)

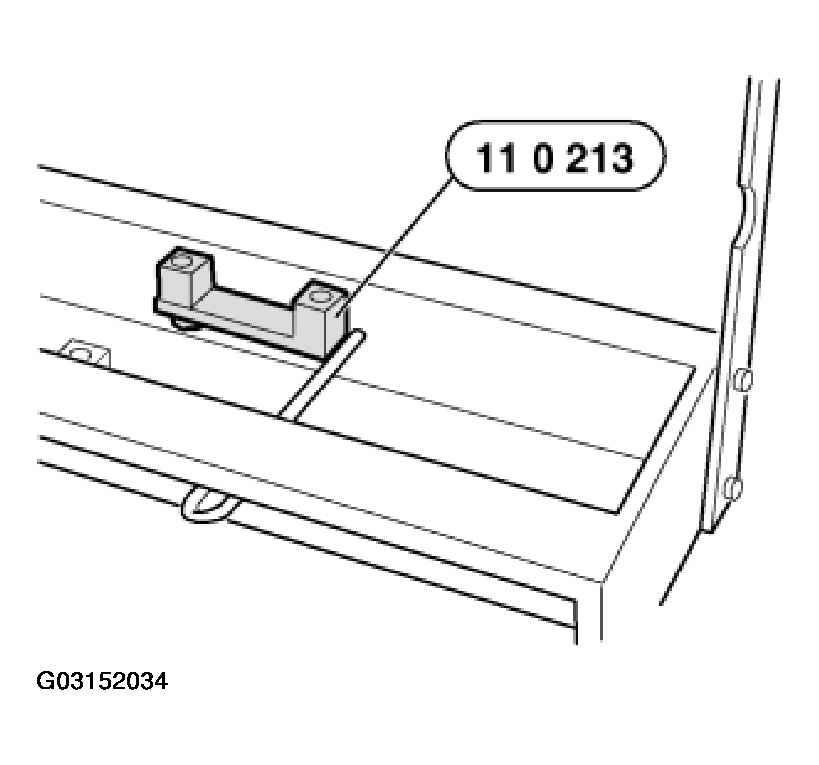

Screw special tool 11 0 213 to special tool 11 1 065.

Fig 1: Screwing Special Tool 11 0 213

Courtesy of BMW OF NORTH AMERICA, INC.

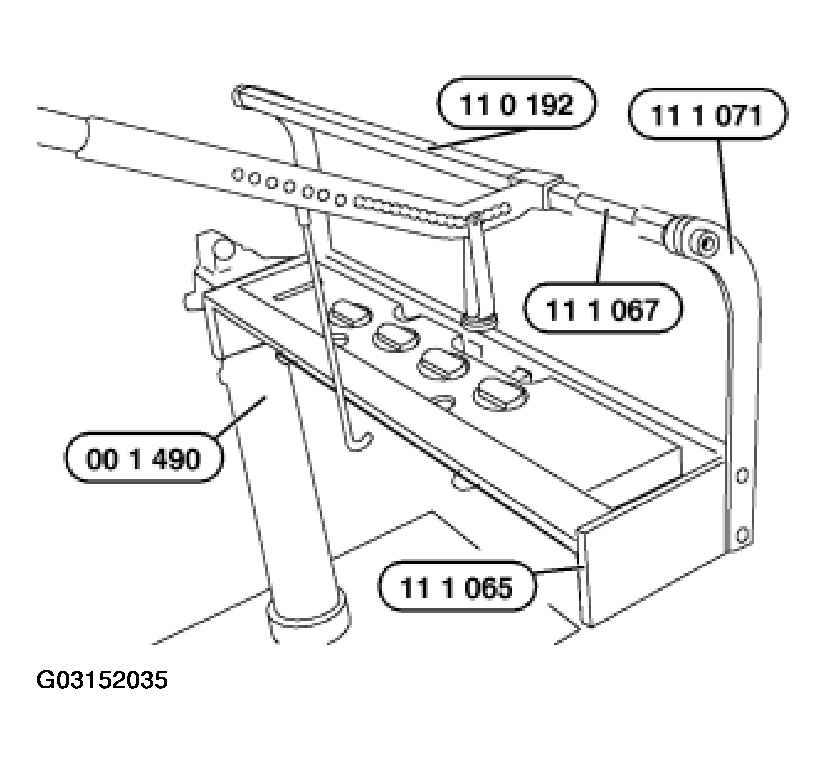

Secure special tool 11 1 065 to special tool 00 1 490.

Provide special tools for cylinder head disassembly:

special tool 11 1 071
special tool 11 1 067
special tool 11 0 192

Fig 2: Securing Special Tool 11 1 065 To Special Tool 00 1 490 (1 Of 2)
Courtesy of BMW OF NORTH AMERICA, INC.

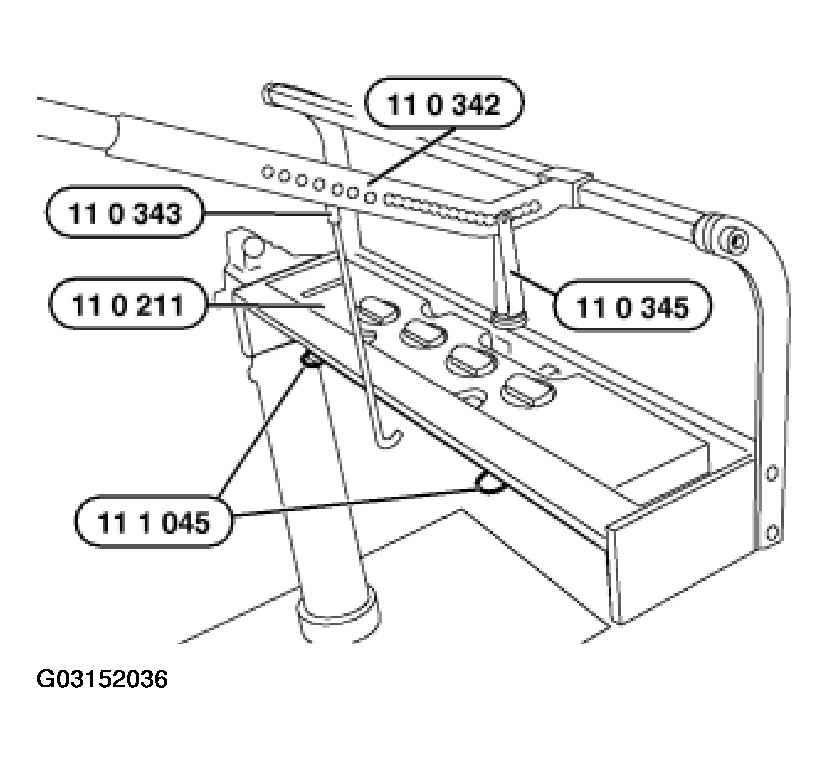

special tool 11 1 045
special tool 11 0 345
special tool 11 0 342
special tool 11 0 343
special tool 11 0 211

Fig 3: Securing Special Tool 11 1 065 To Special Tool 00 1 490 (2 Of 2)

Courtesy of BMW OF NORTH AMERICA, INC.

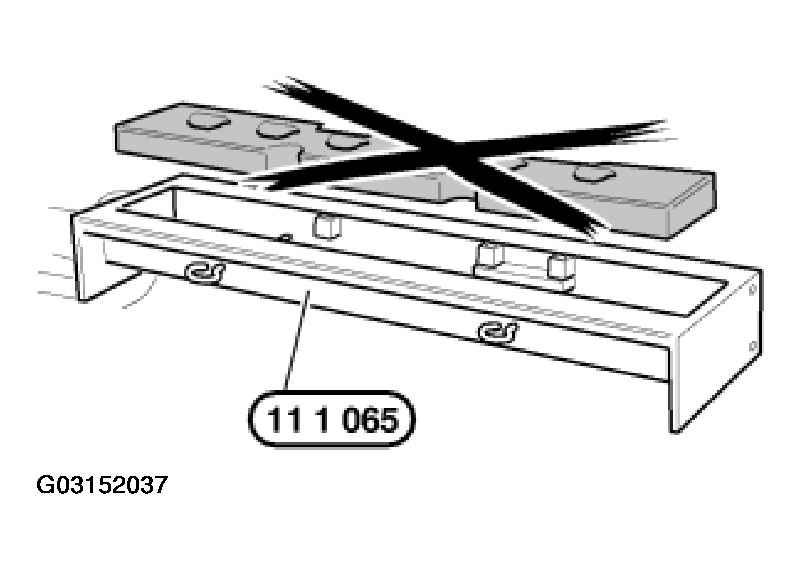

NOTE: At this point, do not install special tool 11 0 211 (support board) in special tool 11 1 065.

Fig 4: Identifying Special Tool 11 1 065

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Do not damage sealing surface.
If necessary, cover special tool 11 1 065 with plastic sheeting.

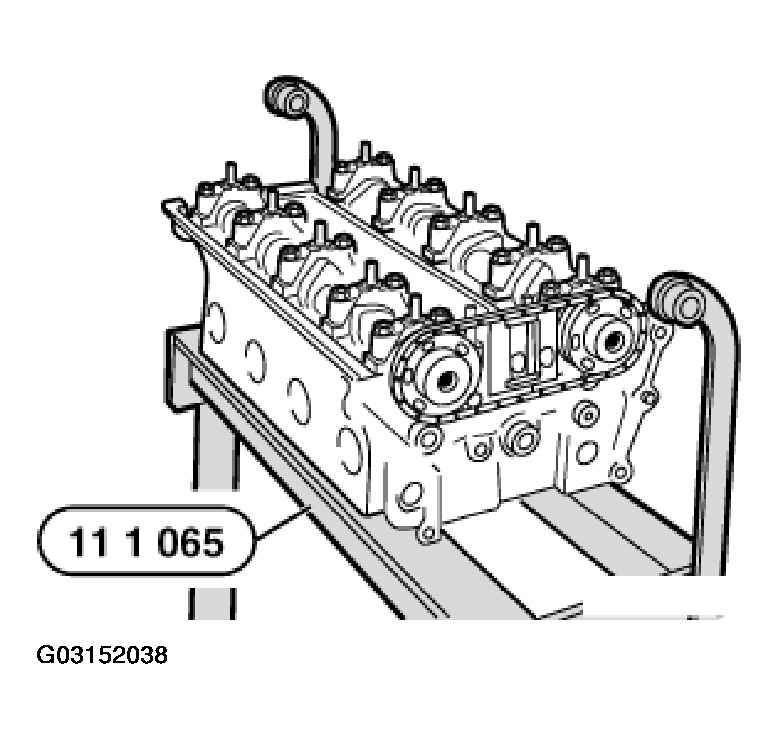

Fit cylinder head on special tool 11 1 065 and secure with two cylinder head screws.

Fig 5: Fitting Cylinder Head On Special Tool 11 1 065

Courtesy of BMW OF NORTH AMERICA, INC.

Remove camshafts. This task is described in the section "Removing left/right camshafts", refer to 11 31 011 REPLACING LEFT CAMSHAFTS (M62 VANOS FROM 9/98) .

Remove all valve springs, refer to 11 34 715 REPLACING ALL VALVE SPRINGS (M62) .

Remove all valve stem seals, refer to 11 34 560 REPLACING ALL VALVE STEM SEALS (M62, S62) .

Remove all valves, refer to 11 34 552 REMOVING AND INSTALLING / REPLACING ALL VALVES (M62) .
