11 34 560 Replacing all valve stem seals (M62, S62)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 BMW 540i, 2002 BMW 540i, 2001 BMW 540i, 2000 BMW 540i, and 1999 BMW 540i. However, it is still accessible from the selected car via links, so may be relevant.

(cylinder head removed)

Preliminary tasks are described in disassembly and assembly of cylinder head,

refer to 11 12 503 DISMANTLING AND REASSEMBLING CYLINDER HEAD (M62) .

CAUTION: Do not damage races on bucket tappets. Insert protective film, special tool 11 0 200.

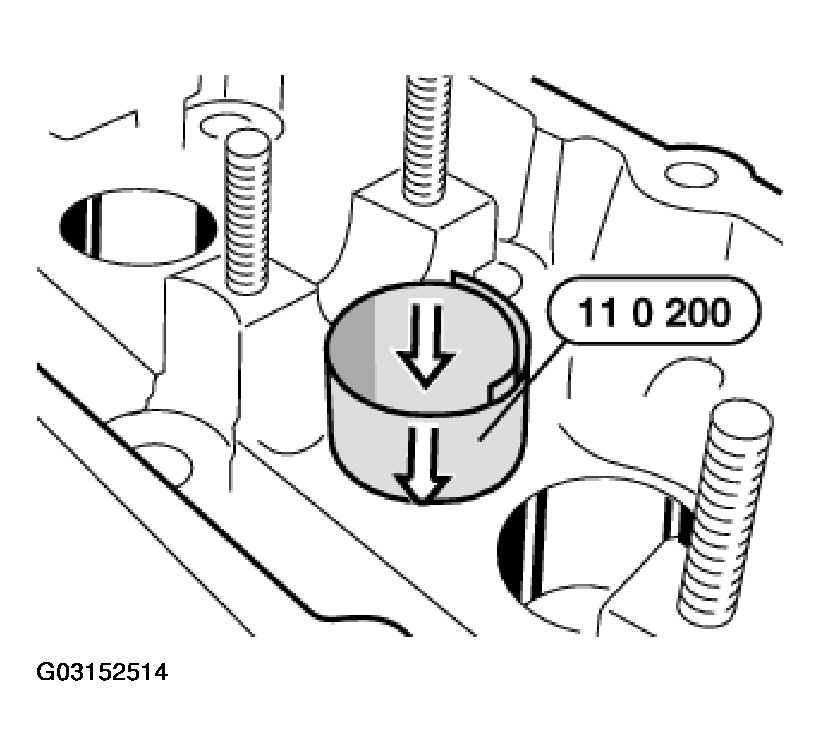

Fig 1: Identifying Special Tool 11 0 200
G03152514Courtesy of BMW OF NORTH AMERICA, INC.

Remove valve stem seal with special tool 11 1 480.

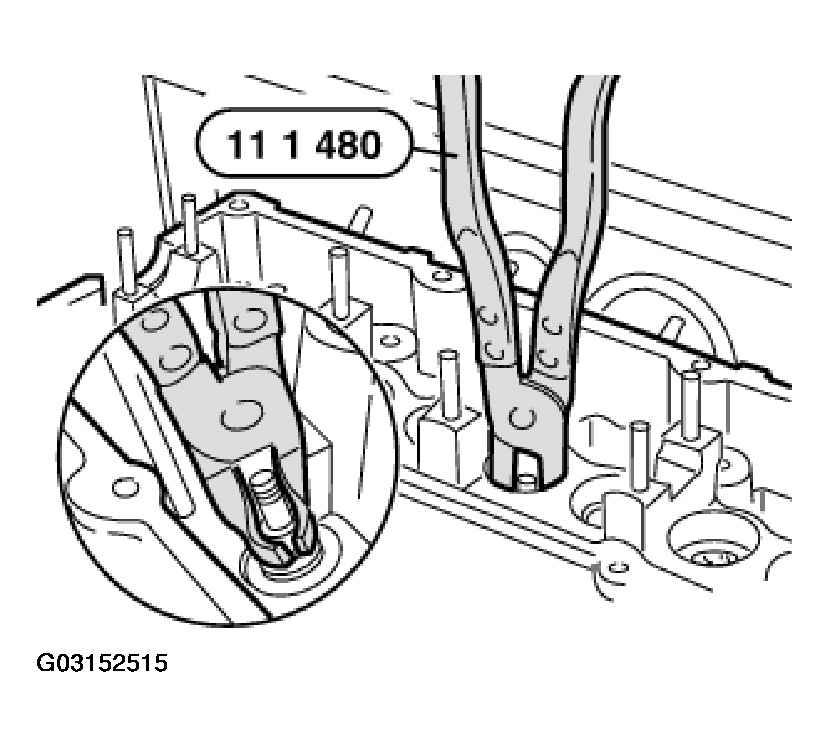

Fig 2: Removing Valve Stem Seal With Special Tool 11 1 480
G03152515Courtesy of BMW OF NORTH AMERICA, INC.

Lubricate valve stem with oil and insert valve. Fit special tool 11 1 960. Coat new valve stem seal (1) with oil and install.

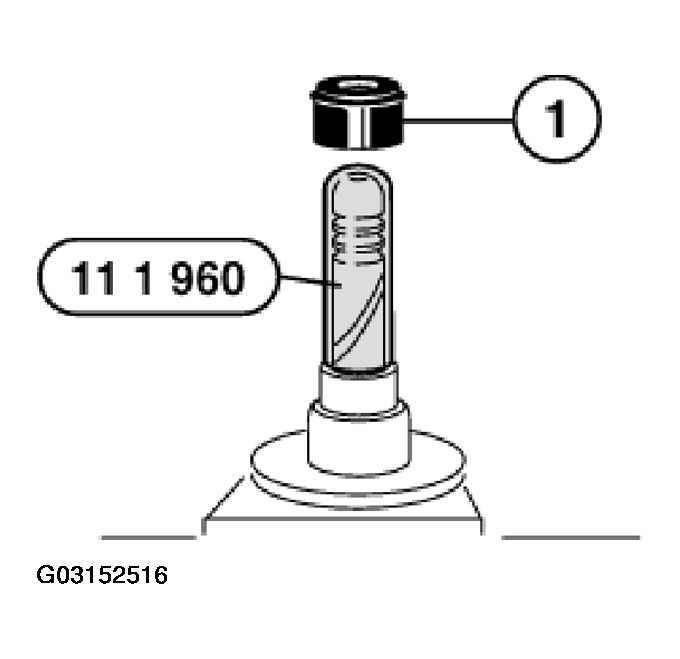

Fig 3: Identifying Special Tool 11 1 960 And Coating New Valve Stem Seal
G03152516Courtesy of BMW OF NORTH AMERICA, INC.

Press-fit valve stem seal firmly home by hand using special tool 11 1 200.

Remove special tool 11 1 960.

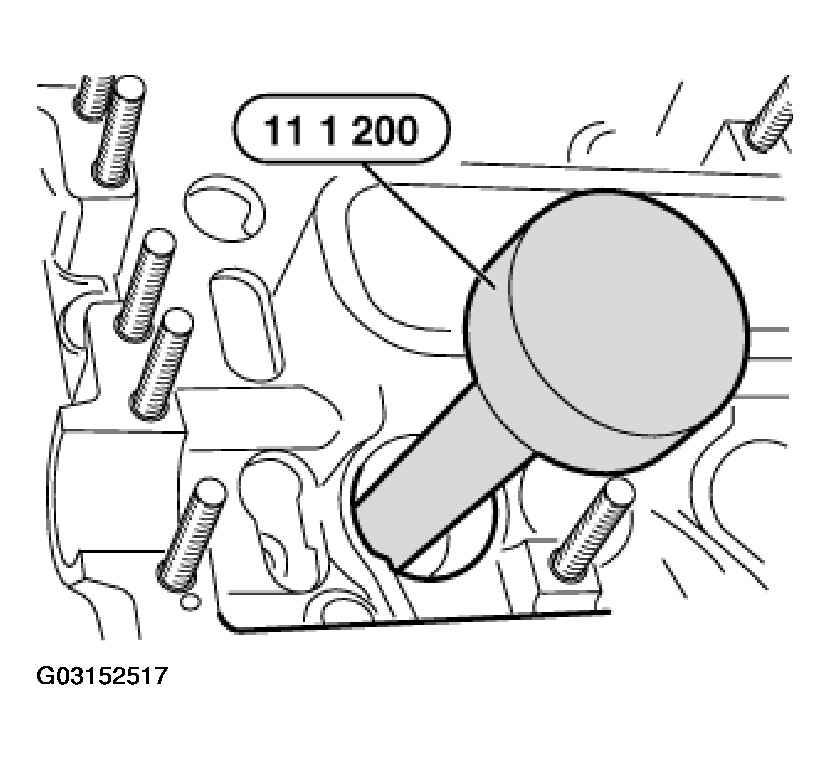

Fig 4: Removing Special Tool 11 1 960
G03152517Courtesy of BMW OF NORTH AMERICA, INC.
