11 34 715 Replacing all valve springs (M62)

(cylinder head removed)

Preliminary tasks are described in disassembly and assembly of cylinder head,

refer to 11 12 503 DISMANTLING AND REASSEMBLING CYLINDER HEAD (M62) .

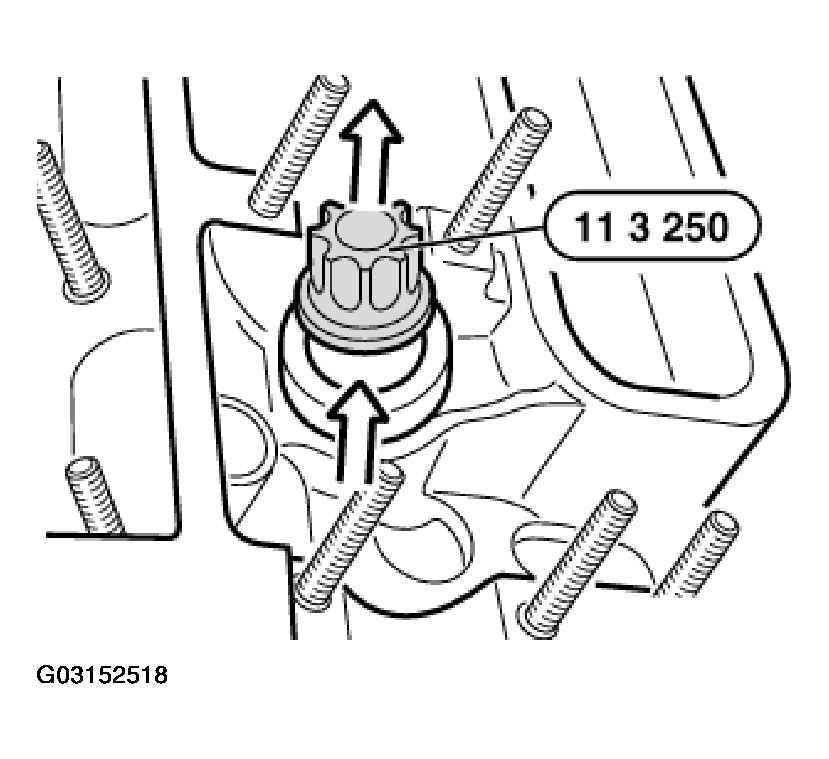

Remove bucket tappet with special tool 11 3 250.

Installation

Worn bucket tappets may only be reused in the same tappet bore.

Fig 1: Removing Bucket Tappet With Special Tool 11 3 250

Courtesy of BMW OF NORTH AMERICA, INC.

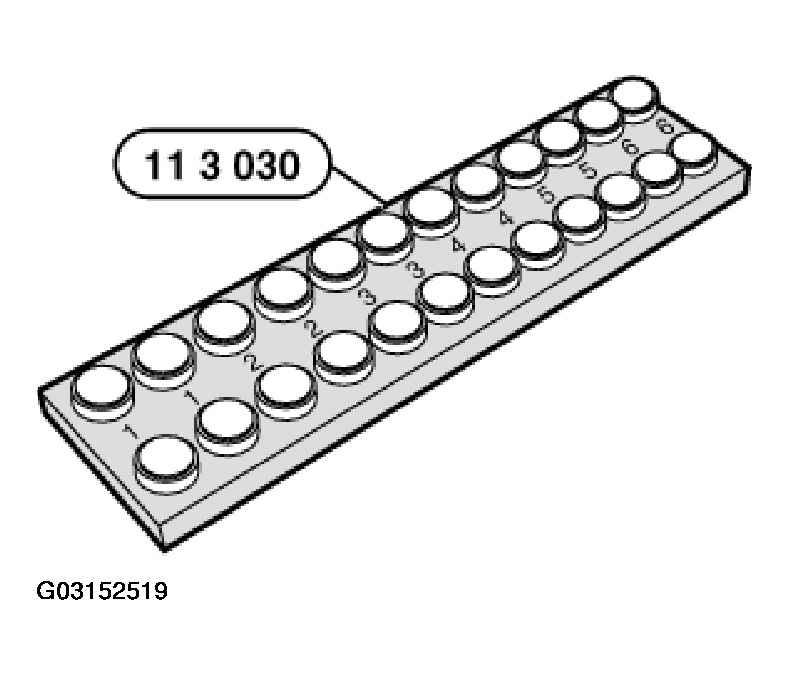

Arrange bucket tappets by cylinder and place on special tool 11 3 030 in correct order.

Fig 2: Identifying Special Tool 11 3 030

Courtesy of BMW OF NORTH AMERICA, INC.

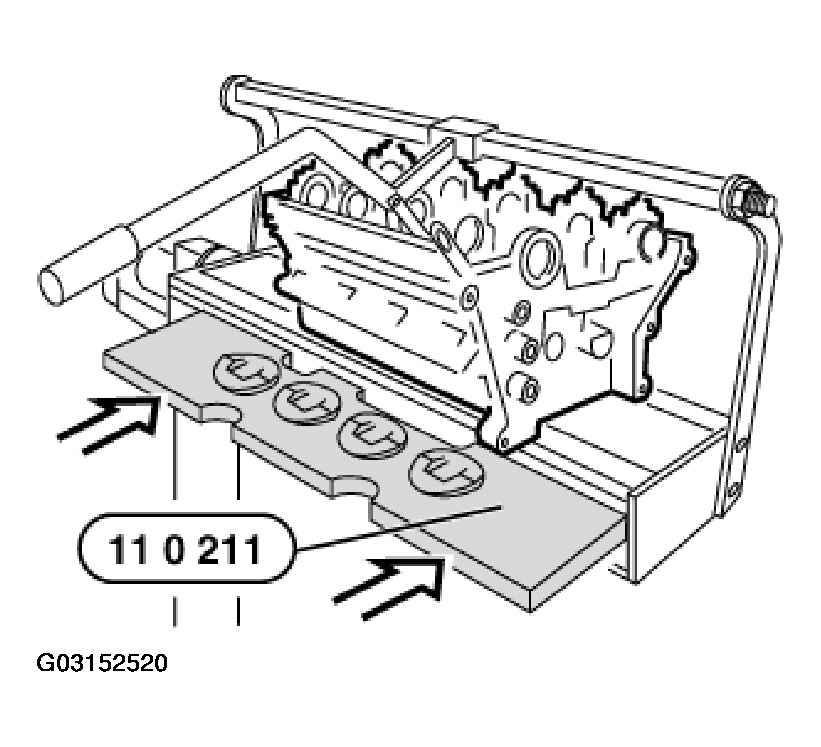

Fit special tool 11 0 211 from below in special tool 11 1 065 and secure with special tool 11 1 045.

Fig 3: Fitting Special Tool 11 0 211

Courtesy of BMW OF NORTH AMERICA, INC.

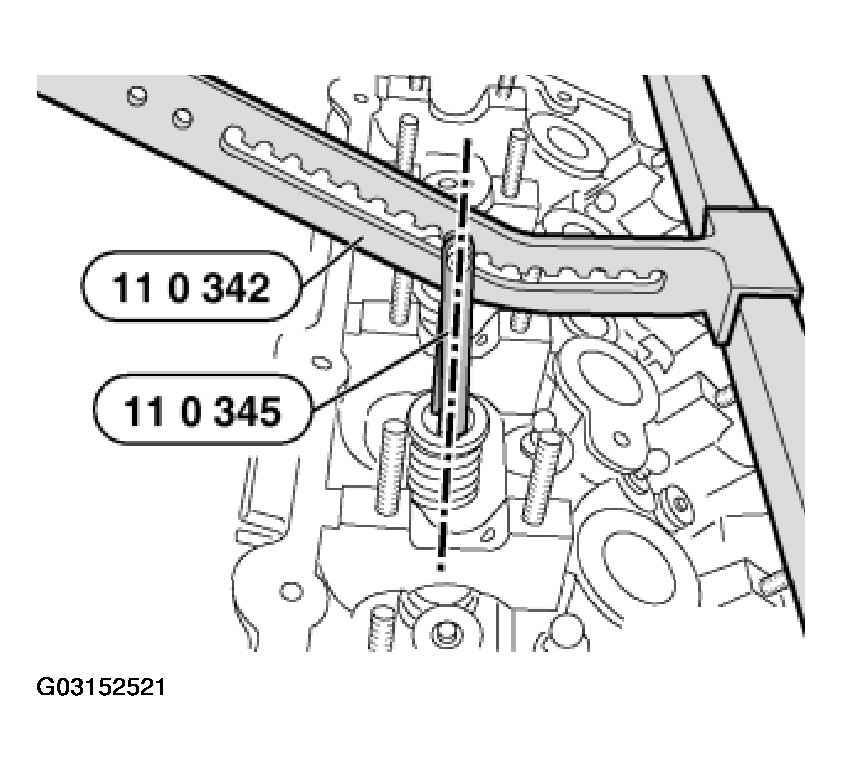

Align special tool 11 0 345 in direction of valve shaft and select appropriate groove in special tool 11 0 342.

Fig 4: Selecting Appropriate Groove In Special Tool 11 0 342

Courtesy of BMW OF NORTH AMERICA, INC.

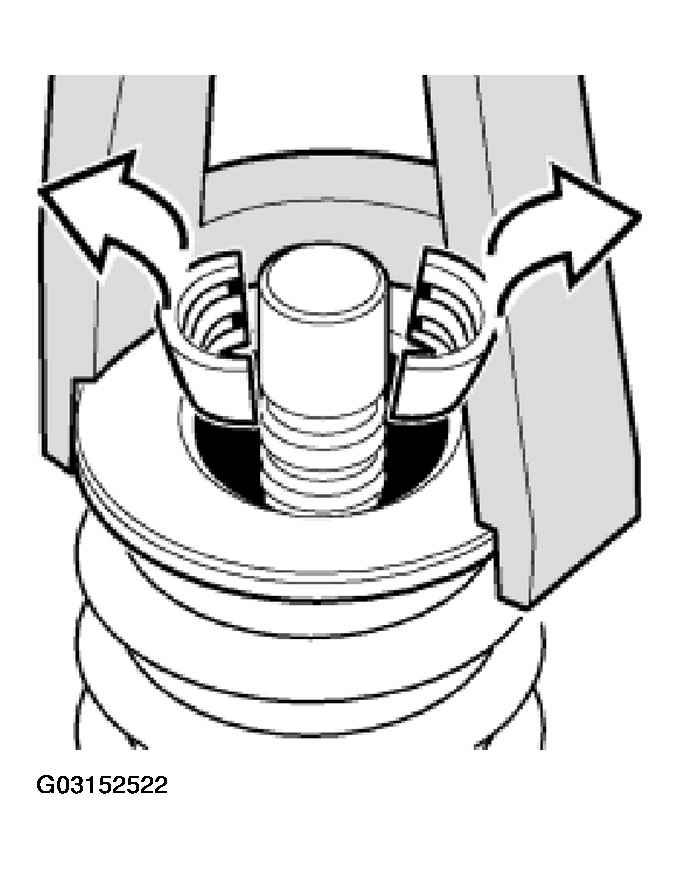

Press down valve spring on spring cap, top, and remove valve keys.

Remove valve spring and plate spring.

Fig 5: Removing Valve Spring And Plate Spring

Courtesy of BMW OF NORTH AMERICA, INC.

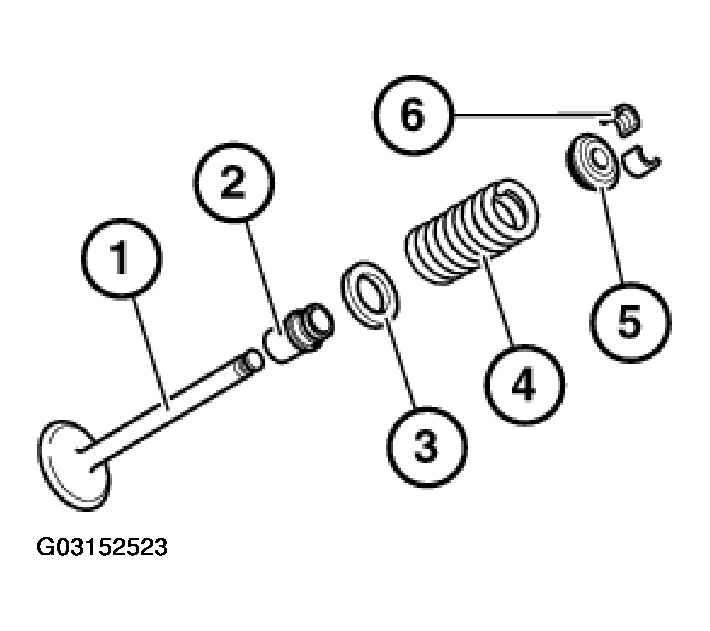

Arrangement:

1. Valve
2. Valve-stem seal
3. Lower plate spring
4. Valve spring
5. Upper plate spring
6. Valve tapers

Fig 6: Identifying Component Of Valve

Courtesy of BMW OF NORTH AMERICA, INC.
