11 00 050 Removing and installing engine (COOPER S)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 0 001
11 0 002
11 0 003
11 0 009
11 8 260
11 8 351
11 8 401
11 8 402
13 5 280
23 4 010

Turn off ignition.

Fit intercooler protector.

Remove intake air filter housing. Refer to 13 71 000 REMOVING AND INSTALLING INTAKE FILTER HOUSING (COOPER S) .

Remove auxiliary drive belt. Refer to 11 28 020 Replacing alternator drive belt tensioner (COOPER S) .

Drain gearbox. Refer to 00 11 229 OIL CHANGE IN MANUAL TRANSMISSION .

Remove lower stabilizer bracket bolts (1) and remove bracket (2).

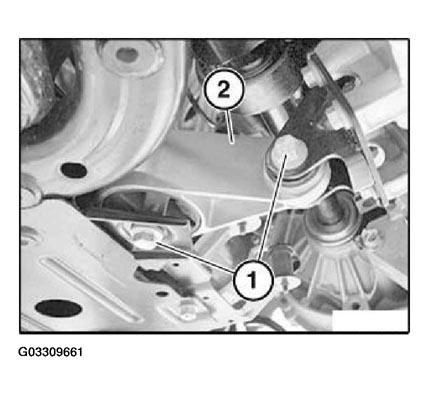

Fig 1: Removing Lower Stabilizer Bracket Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 12 16AZ. Refer to ENGINE - TIGHTENING TORQUES .

Disconnect steering pump motor connectors (1).

Fig 2: Disconnecting Steering Pump Motor Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Remove crush tubes. Refer to 31 11 020 Removing and installing/replacing bumper bracket .

Slacken modular front end and fit special tools 11 8 401 and 11 8 402.

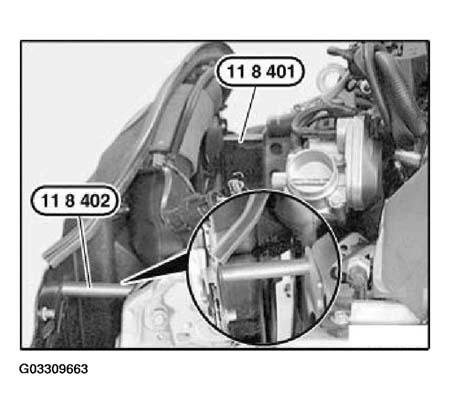

Fig 3: Fitting Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Remove subframe. Refer to 31 11 001 Replacing front axle support .

Remove driveshafts. Refer to DRIVE AXLE SHAFT (LEFT) .

Remove exhaust manifold. Refer to 11 62 000 Removing and installing, sealing/replacing exhaust manifold .

Remove starter motor heat shield retaining bolt (1).

Fig 4: Removing Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Remove heat shield (2).

Tightening torque 12 41 1AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

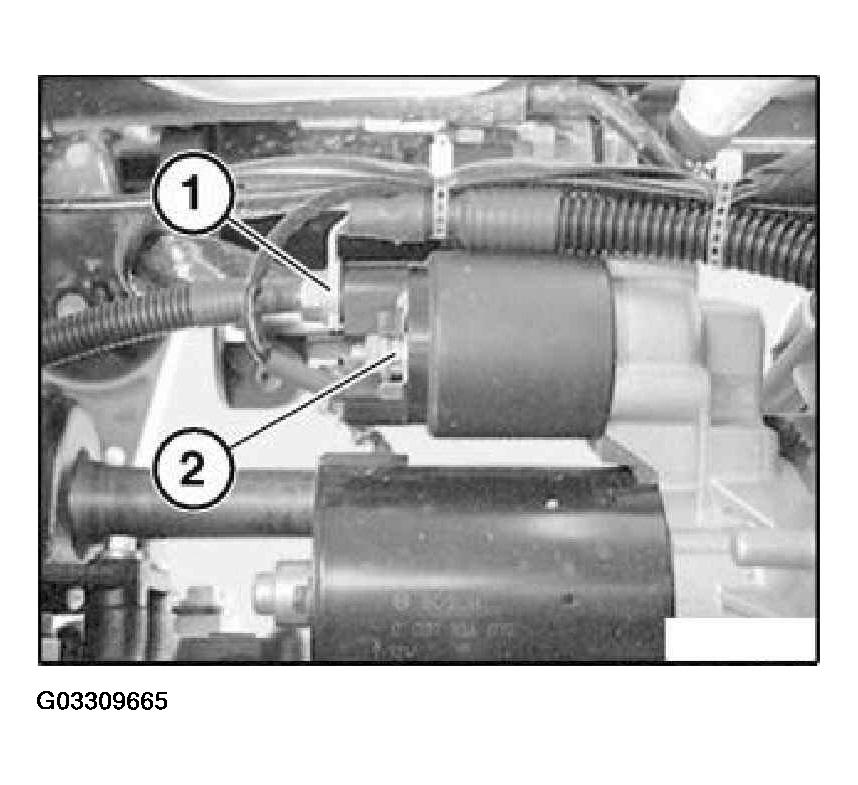

Remove starter motor connections (1) and (2).

Fig 5: Removing Starter Motor Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 12 41 2AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Tightening torque 12 41 3AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Remove oil pressure connector.

NOTE: Harness routing.

Remove harness brackets from starter motor and cooling pipe.

Move harness to one side.

Remove reverse lamp connector from gearbox.

Remove intercooler. Refer to 17 51 000 Removing and installing/replacing intercooler .

Remove throttle valve. Refer to 13 54 030 REMOVING AND INSTALLING/SEALING THROTTLE ASSEMBLY (COOPER S) .

Remove tank venting valve lower pipe from stabilizer bracket.

Fig 6: Removing Tank Venting Valve

Courtesy of BMW OF NORTH AMERICA, INC.

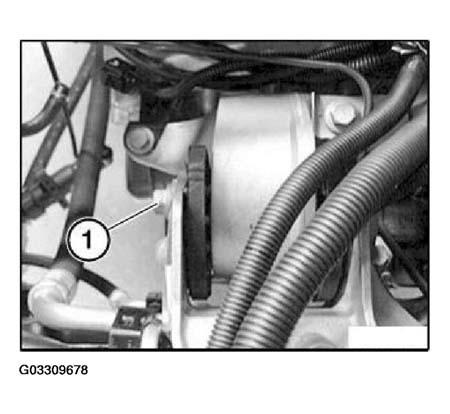

Remove earth lead from right engine mounting bracket.

Release fuel pressure from fuel line.

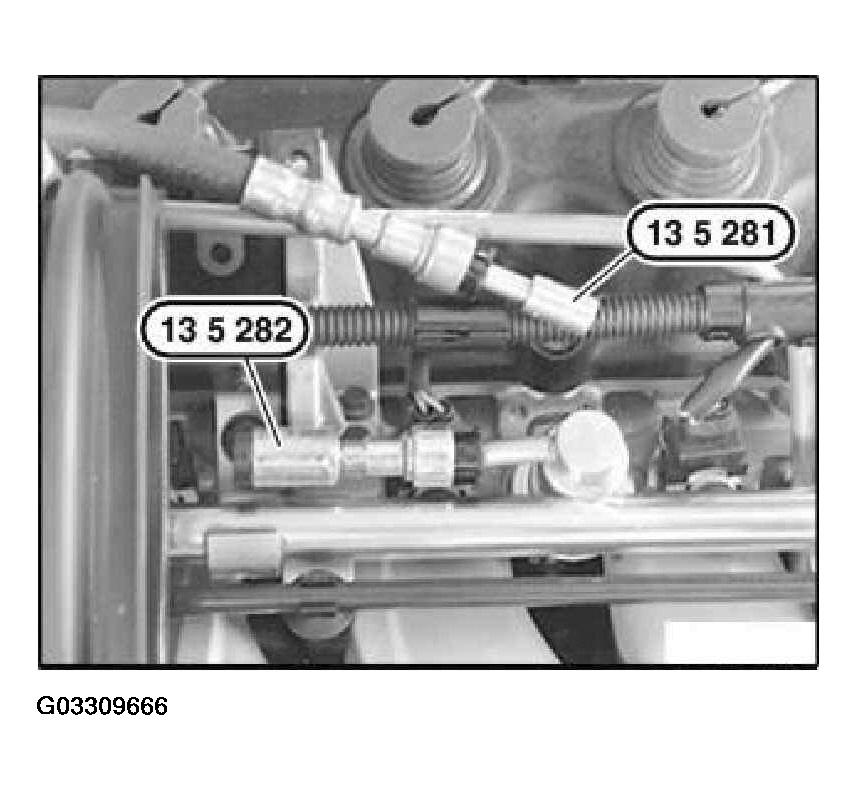

Disconnect fuel line from fuel rail via quick fit connector and fit special tool 13 5 280.

Remove fusebox cover.

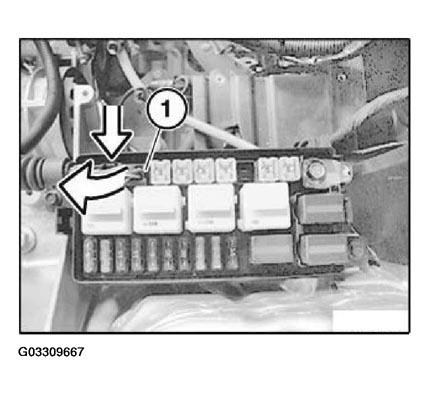

Disconnect connector (1) from fusebox.

Fig 7: Disconnecting Connector From Fusebox

Courtesy of BMW OF NORTH AMERICA, INC.

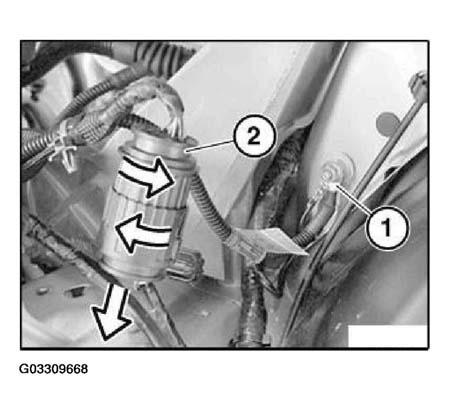

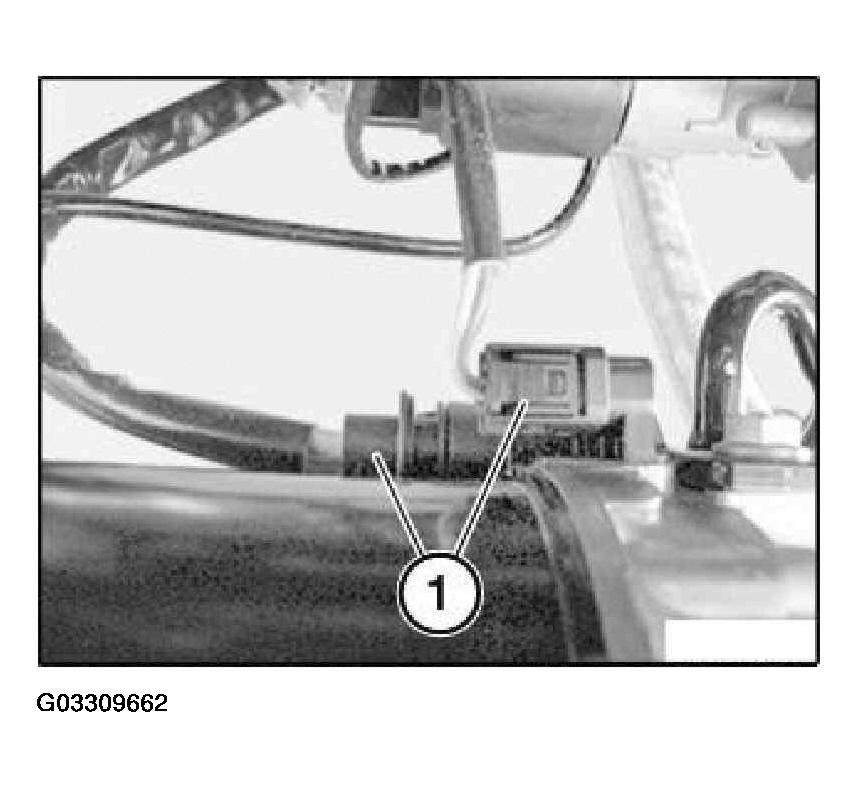

Disconnect earth lead (1) from left strut.

Fig 8: Disconnecting Earth Lead From Left Strut

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 61 13 2AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Disconnect connector (2).

Drain coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT (COOPER S) .

Disconnect both heater pipe connections (1) from heater matrix.

Fig 9: Disconnecting Pipes

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect both expansion tank pipes (2) at heater pipe junction.

Remove top hose from radiator.

Remove top stabilizer bracket. Refer to 22 11 040 REPLACING UPPER ENGINE CARRIER BRACKET .

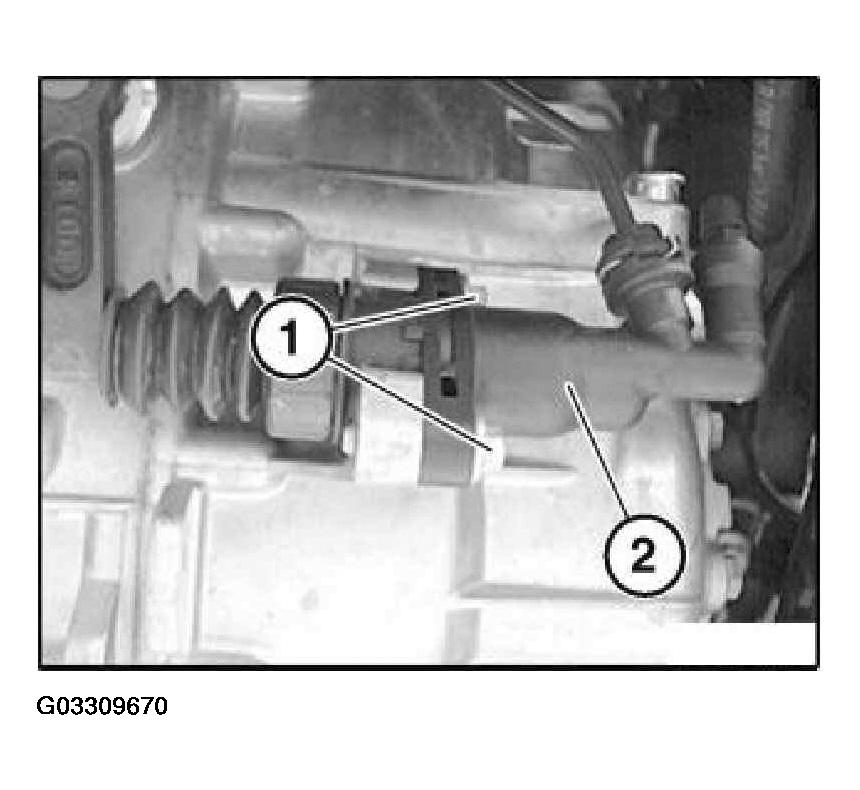

Remove slave cylinder retaining bolts (1) and remove slave cylinder (2).

Fig 10: Removing Slave Cylinder

Courtesy of BMW OF NORTH AMERICA, INC.

Release gearshift cables (1) from ball joints with special tool 23 4 010.

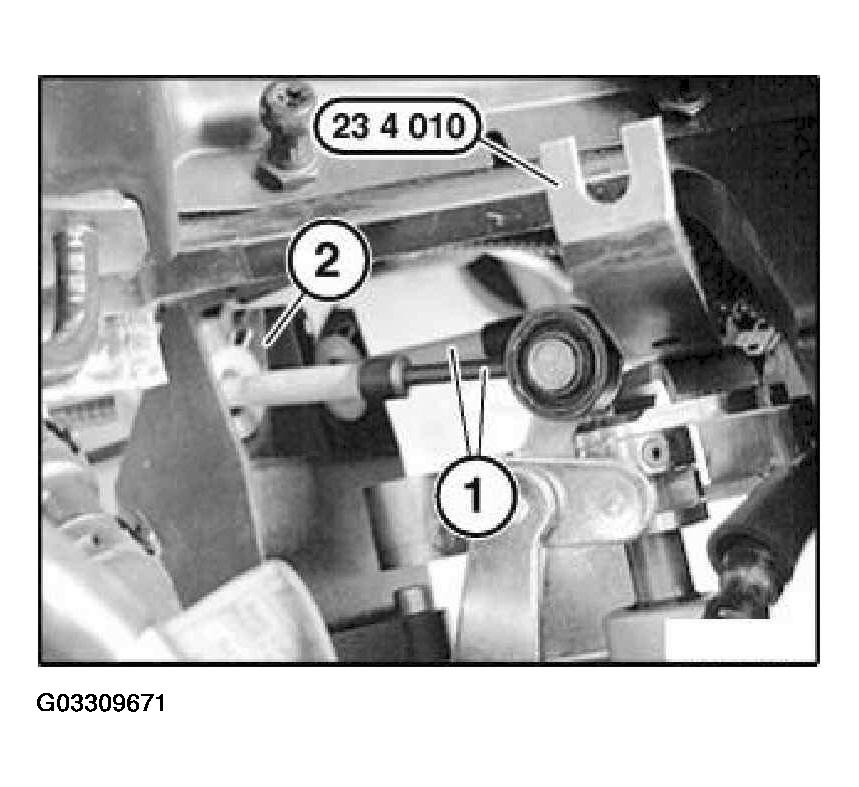

Fig 11: Releasing Gearshift Cables

Courtesy of BMW OF NORTH AMERICA, INC.

Release and remove gearshift cables from abutment bracket (2).

Disconnect connector from A/C compressor (1).

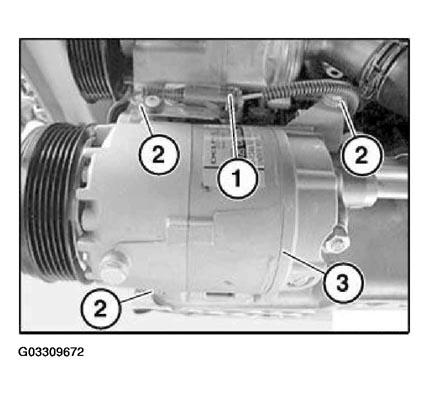

Fig 12: Removing A/C Compressor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove A/C compressor retaining bolts (2) and lower compressor (3). Secure compressor to modular front end.

Tightening torque 64 52 1AZ. Refer to HEATING AND AIR CONDITIONING - TIGHTENING TORQUES .

Remove coolant pipe bolt (1) and disconnect map sensor connector (2).

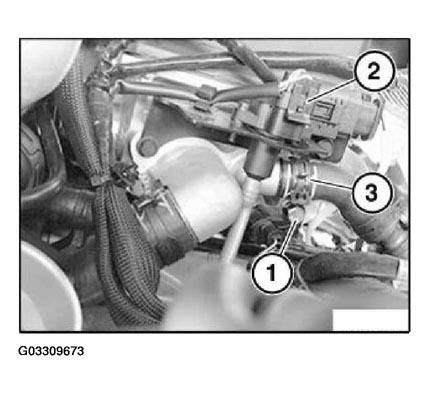

Fig 13: Removing Coolant Pipe Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect coolant pipe (3).

Tightening torque 11 78 2AZ. Refer to ENGINE - TIGHTENING TORQUES .

Tightening torque 11 53 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

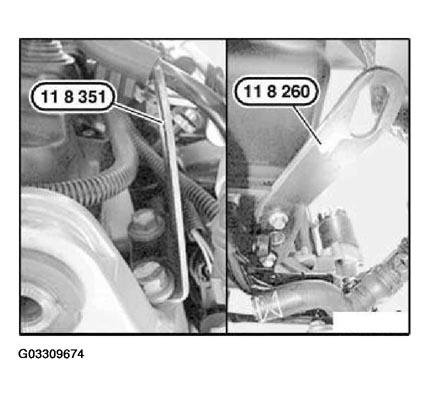

Fit engine brackets, special tool 11 8 351 and special tool 11 8 260.

Fig 14: Installing Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 12 9AZ. Refer to ENGINE - TIGHTENING TORQUES .

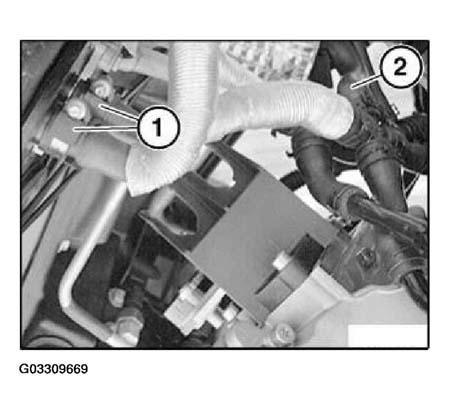

Remove supercharger inlet retaining bolt (1) and release hose clip (2).

Fig 15: Removing Supercharger Inlet Pipes

Courtesy of BMW OF NORTH AMERICA, INC.

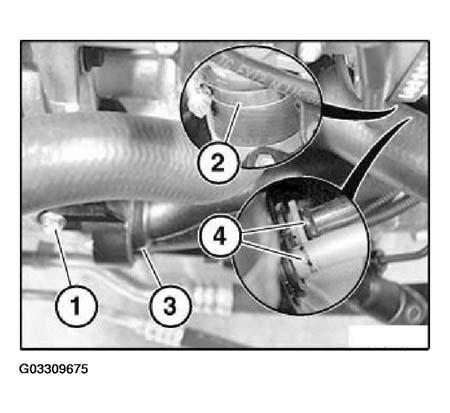

Remove supercharger inlet pipe (3) to access pipes (4).

NOTE: Disconnect pipes via quick fit connector.

Remove brake booster pipe from engine.

Release slave cylinder pipe from gearbox and move to one side.

Fit engine lifting tools 11 0 001, 11 0 002, 11 0 003 and 11 0 009.

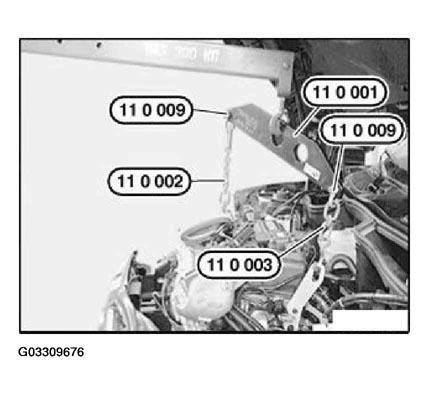

Fig 16: Attaching Engine Lifting Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Attach engine lifting bracket and chains to engine and support power unit with hoist.

NOTE: It is recommended to use the longer link chain on the right engine bracket.

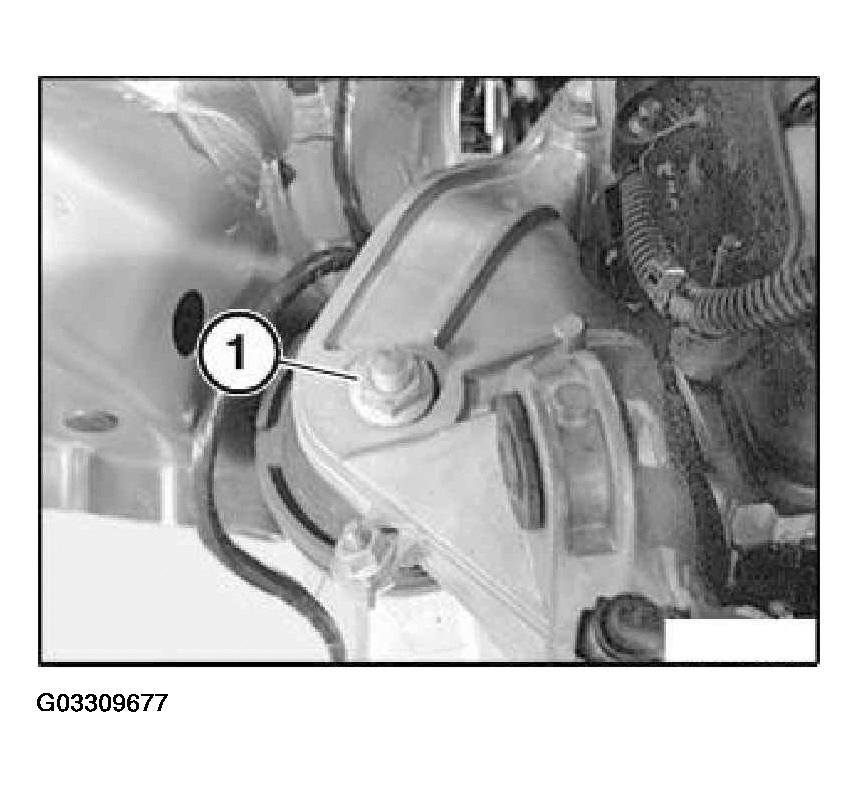

Remove engine mount retaining nut (1).

Fig 17: Removing Engine Mount Retaining Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 12 13AZ. Refer to ENGINE - TIGHTENING TORQUES .

Remove gearbox to upper mount retaining bolt (1).

Fig 18: Removing Gearbox Upper Mount Retaining Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 23 71 2AZ. Refer to TORQUE SPECIFICATIONS .

Lower engine and remove.
