22 11 040 Replacing upper engine carrier bracket

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Petrol/gasoline engine only!

Unclip lines (3) and (4) from holder.

Release screws (1).

Tightening torque, refer to 22 11 4AZ / 5AZ in ENGINE AND GEARBOX SUSPENSION .

Fig 1: View Of Lines In Holder

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Diesel only!

Release bolts (1) and remove engine carrier bracket (2).

Tightening torque 22 11 4AZ/ 5AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .

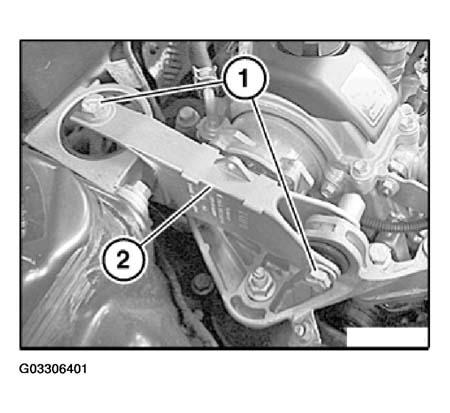

Fig 2: Identifying Engine Carrier Bracket Retaining Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
