11 31 001 Replacing camshaft

Special tools required:

• 11 8 250
• 11 8 370

Necessary preliminary tasks:

• Remove spark plugs. Refer to 12 12 011 REPLACING ALL SPARK PLUGS .
• Remove wheel arch liner. Refer to 51 71 040 REMOVING AND INSTALLING/REPLACING FRONT LEFT OR RIGHT WHEEL ARCH LINER .
• Remove cylinder head cover. Refer to 11 12 000 Removing and installing, sealing cylinder head cover (COOPER S)  .
• Remove left engine mounting. Refer to 22 11 001 REPLACING RIGHT ENGINE MOUNT .
• Remove hydraulic chain tensioner. Refer to 11 31 091 Removing and installing/replacing hydraulic chain tensioner (COOPER S)  .
• Remove rocker arm shafts. Refer to 11 33 020 Removing and installing or replacing rocker arm shaft  .

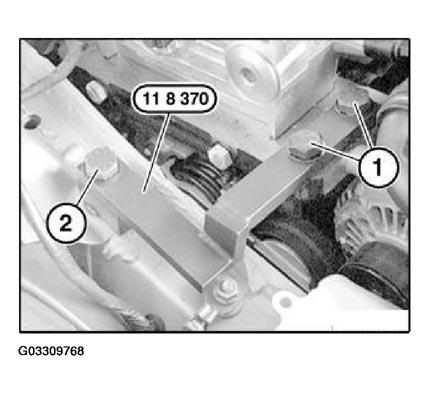

Fit special tool 11 8 370 on cylinder block (1) and fixture of engine mounting (2).

Fig 1: Fitting Special Tool On Cylinder Block

Courtesy of BMW OF NORTH AMERICA, INC.

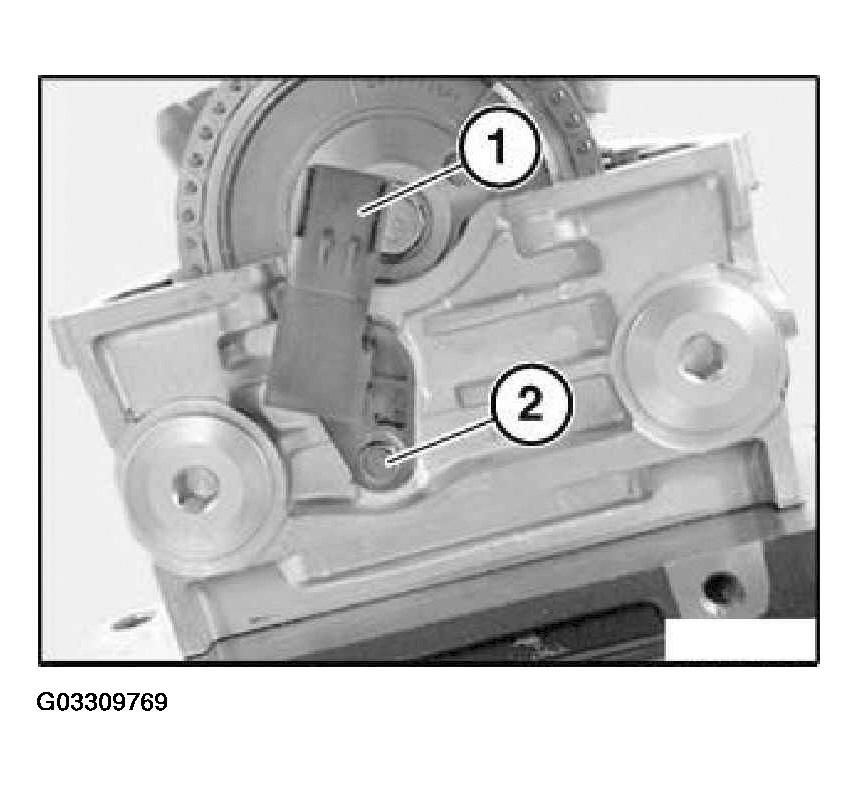

Disconnect plug connector of camshaft sensor. Remove retaining screw (1) and camshaft sensor (2).

Fig 2: Removing Camshaft Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Apply a thin coating of clean engine oil to seal.

Tightening torque 13 62 1AZ. Refer to FUEL SYSTEM - TIGHTENING TORQUES .

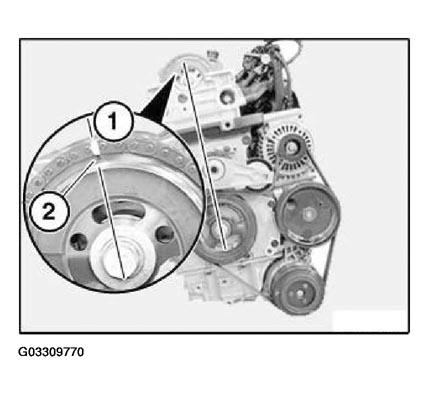

Rotate crankshaft until triangular adjustment mark (2) on camshaft gear is at 12 o'clock.

Fig 3: Identifying Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Mark vibration damper and timing case cover with paint.

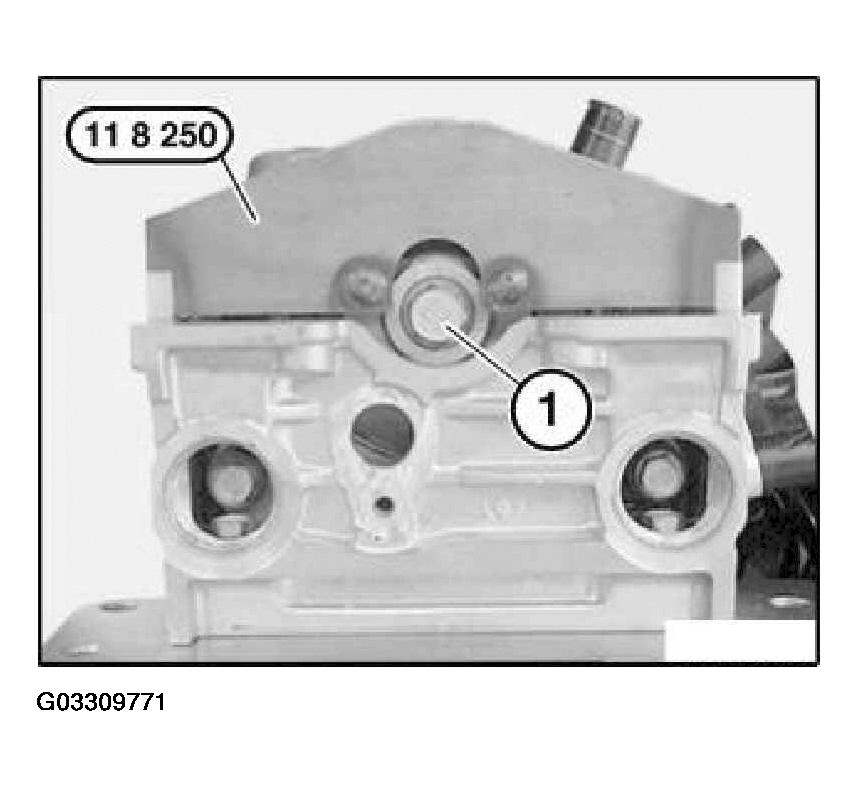

Secure special tool 11 8 250 to camshaft gear.

Fig 4: Securing Special Tool To Camshaft Gear

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken central bolt (1).

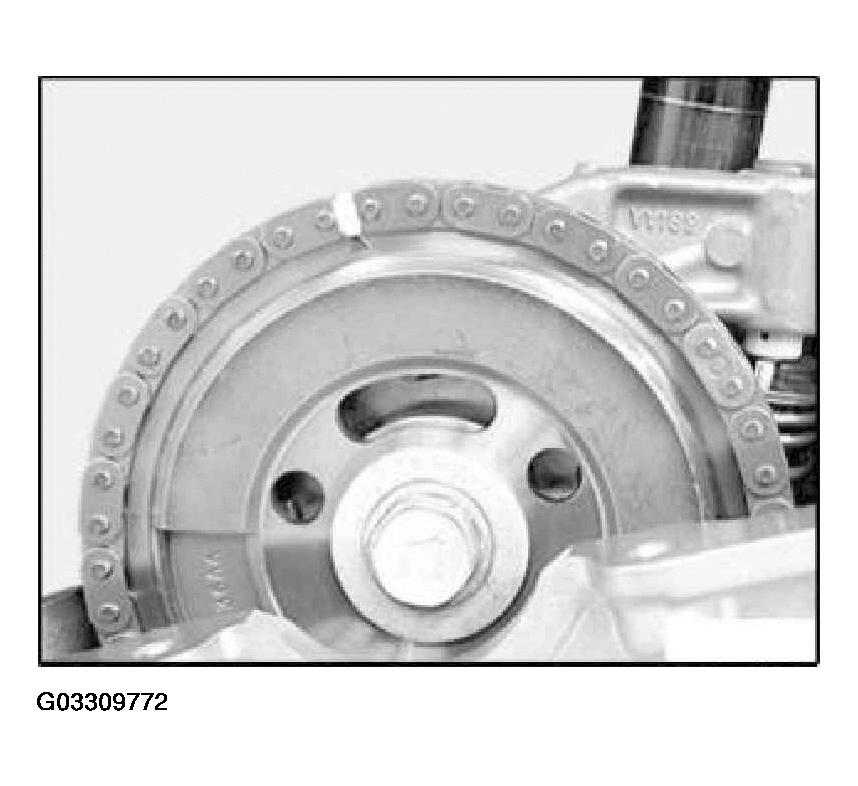

Make sure that the marking on the camshaft gear and the color marking are aligned.

Fig 5: Aligning Color Markings

Courtesy of BMW OF NORTH AMERICA, INC.

Remove central bolt.

Tightening torque 11 12 5AZ. Refer to ENGINE - TIGHTENING TORQUES .

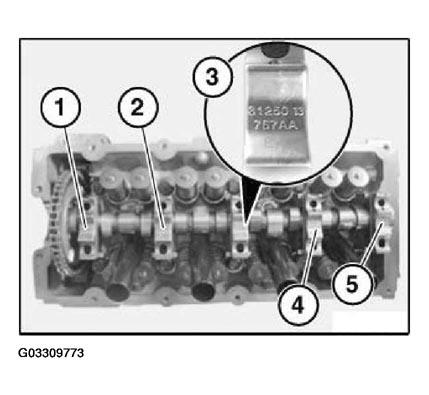

Remove all camshaft bearing caps and camshaft.

Fig 6: Removing Camshaft Bearing Caps And Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

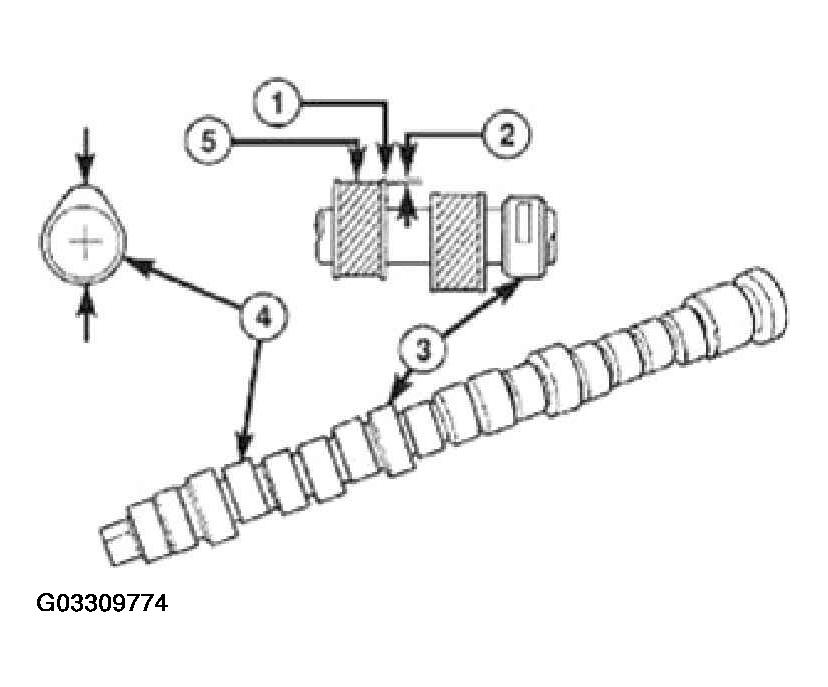

Measure cam wear (measurement of non -worn area minus measurement of worn area) and replace camshaft if the result is outside the permitted values.

Cam wear: refer to ENGINE - TECHNICAL DATA .

1. Non-worn area.
2. Wear.
3. Bearing journal.
4. Cam.
5. Wear zone.

Fig 7: Identifying Cam Wear

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

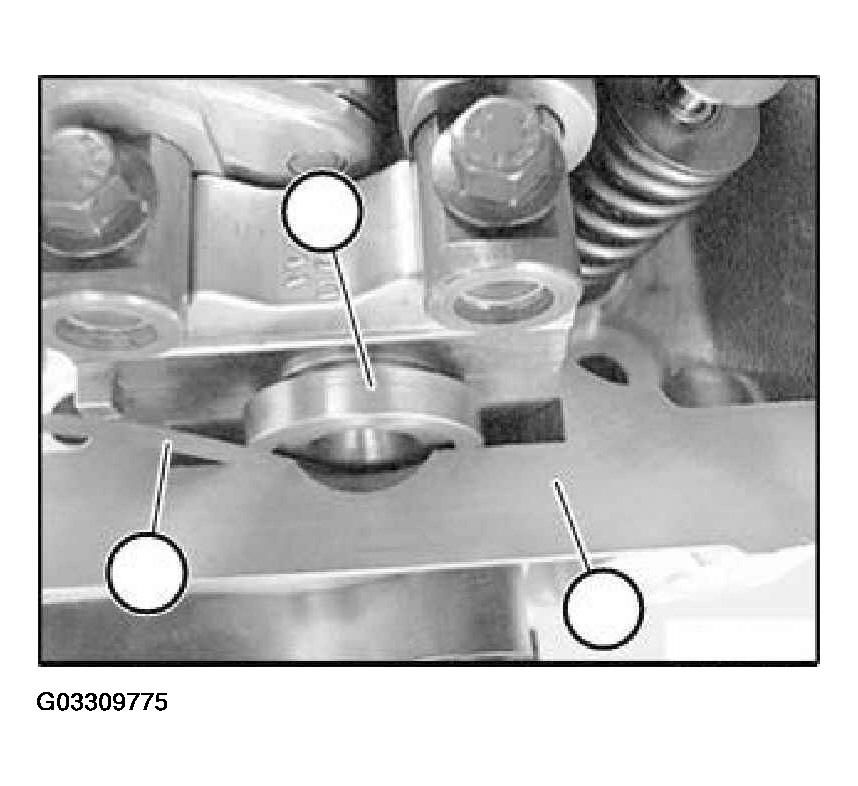

Using a feeler gauge (1), measure the camshaft axial play between camshaft stub (2) and cylinder head (3).

Fig 8: Measuring Camshaft Axial Play

Courtesy of BMW OF NORTH AMERICA, INC.

Refer to ENGINE - TECHNICAL DATA .

Installation note:

1. Lubricate camshaft bearing journals with clean engine oil.
2. Install camshaft bearing caps in correct installation sequence.
3. Lubricate rocker arm rolling area with clean engine oil.

Assemble engine.
