11 12 000 Removing and installing, sealing cylinder head cover (COOPER S)

Turn ignition off.

Remove intercooler. Refer to 17 51 000 Removing and installing/replacing intercooler .

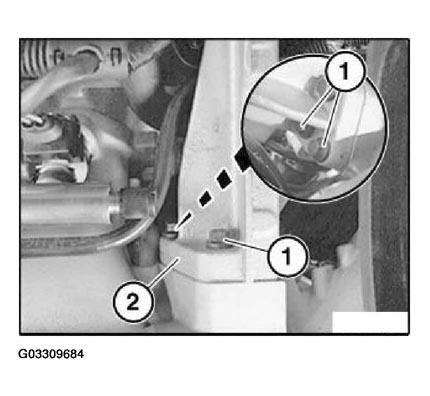

Remove bolts (1) securing left hand bracket and remove bracket (2).

Fig 1: Removing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 12 20AZ. Refer to ENGINE - TIGHTENING TORQUES .

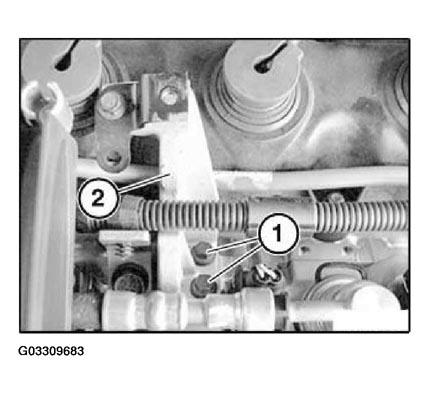

Remove bolts (1) securing right hand bracket and remove bracket (2).

Fig 2: Securing Right Hand Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 12 21AZ. Refer to ENGINE - TIGHTENING TORQUES .

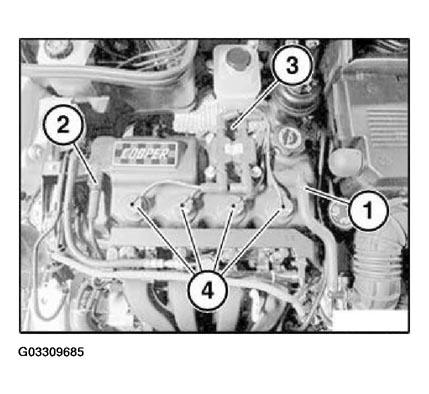

Disconnect hose (1).

Fig 3: Removing Components

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect PCV valve (2).

Disconnect connector to coil pack (3).

Remove plug caps (twist and pull) (4).

Remove harness clips from inspection cover bolts.

Remove coil pack. Refer to 12 13 513 REPLACING IGNITION COIL .

Remove 12 cylinder head cover bolts.

Fig 4: Removing Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Remove cylinder head cover.

Install hint:

Replace cylinder head cover gasket if necessary.

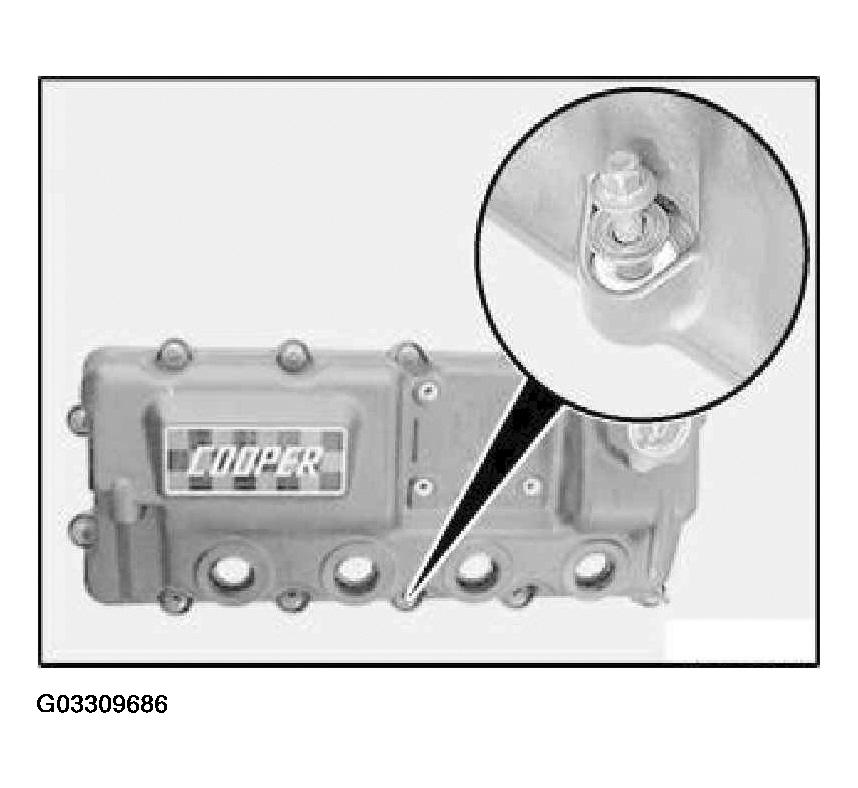

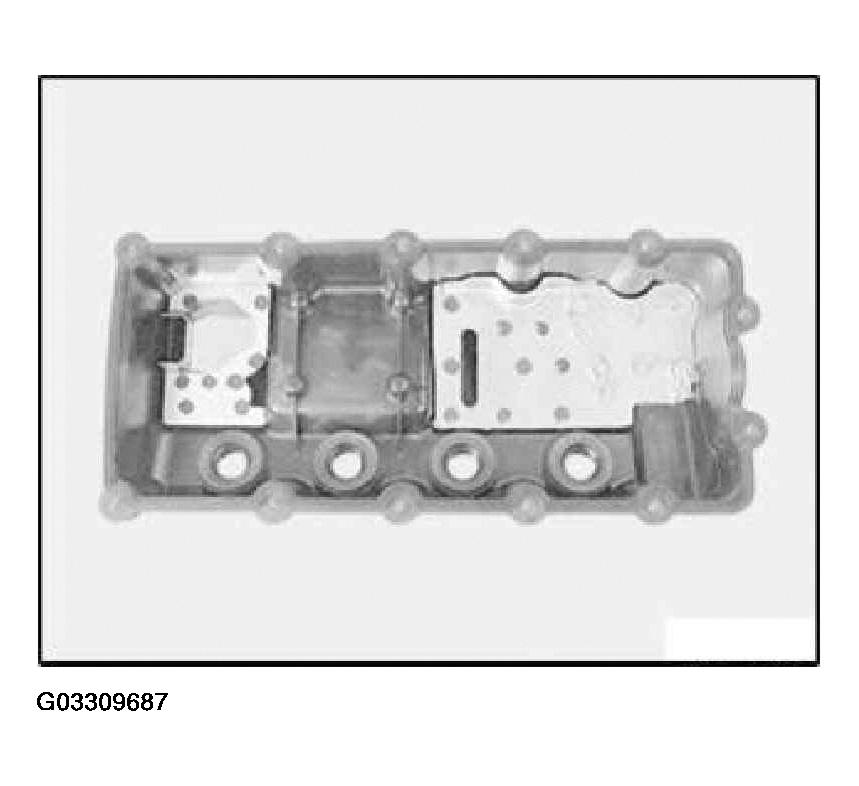

Fig 5: View Of Cylinder Head Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Clean mating faces with a suitable material.

Replace retaining screws and insulators if damaged.

Install hint:

Install cylinder head cover and tighten screws to sequence.

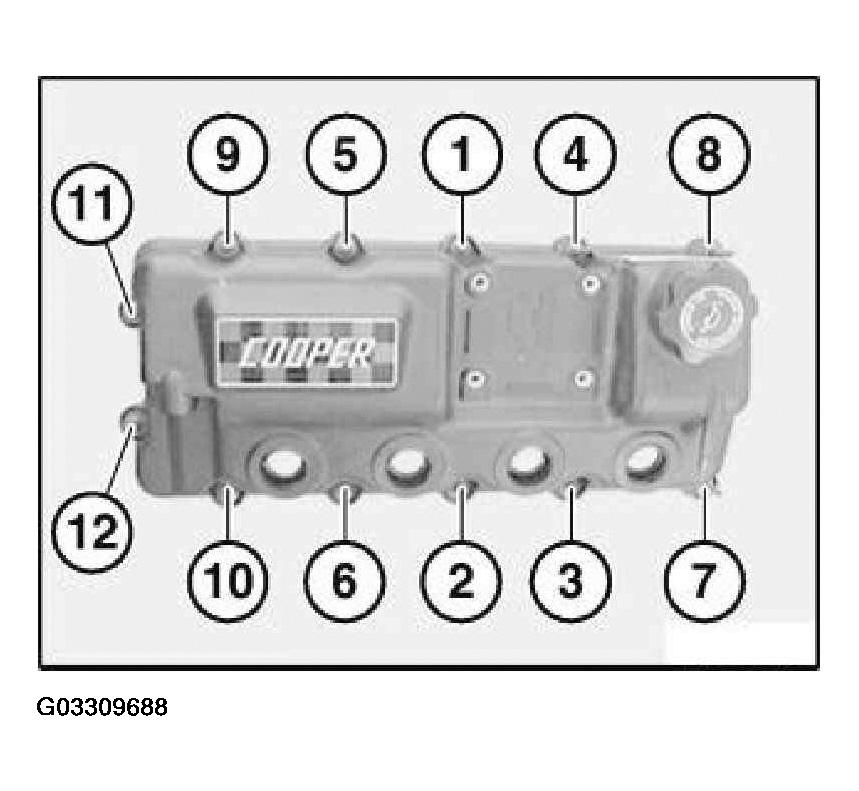

Fig 6: Identifying Cylinder Head Cover Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 11 12 1AZ. Refer to ENGINE - TIGHTENING TORQUES .
