22 11 001 Replacing right engine mount
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2008 MINI Cooper, 2007 MINI Cooper, 2006 MINI Cooper, 2005 MINI Cooper, and 2004 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For Special Tool identification, see ENGINE- SPECIAL TOOLS .
Special Tools Required:
- 11 8 380
NOTE:
Application after 03.2002.

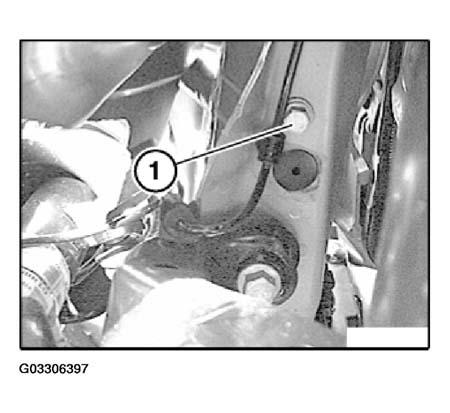

Release bolt (1) on engine mount.
Tightening torque, refer to 22 11 6AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
Installation:
Replace screw.
IMPORTANT:
Support engine with trolley jack on oil sump. Risk of damage: Place suitable material on trolley jack to protect oil sump against damage.
- Remove right engine support bracket. Refer to 22 11 100 REPLACING RIGHT ENGINE MOUNTING BRACKET (FROM 12.03) and 22 11 100 REPLACING RIGHT ENGINE MOUNTING BRACKET (UP TO 12.03) .
NOTE:
From 12.2003:

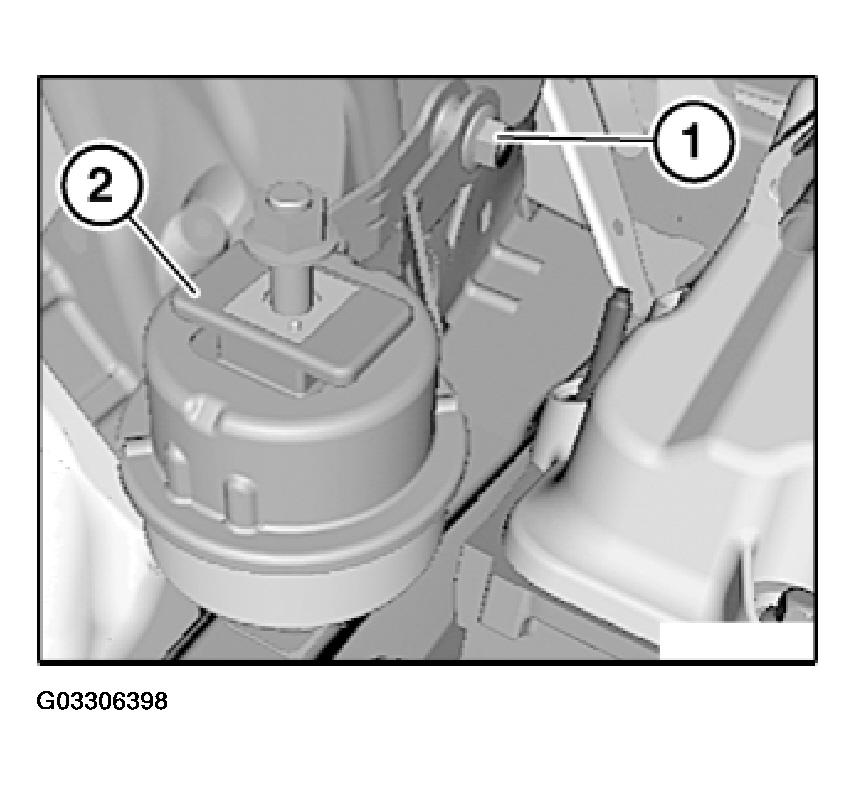

Release bolt (1) and remove engine mount (2).
Tightening torque, refer to 22 11 6AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
NOTE:
Application before 03.2002.

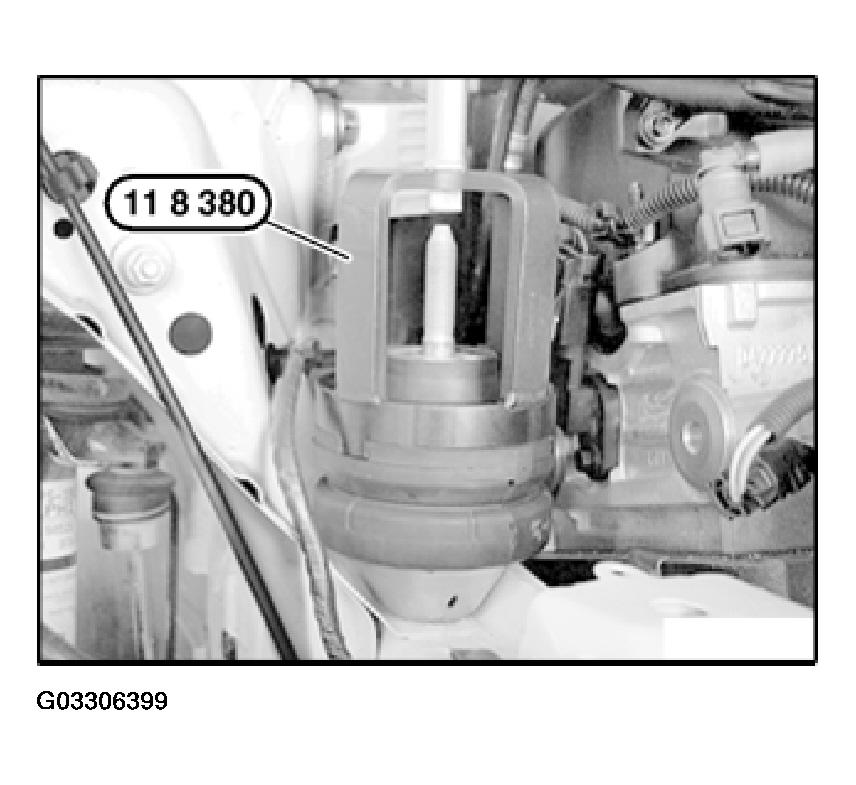

Remove engine mount with special tool 11 8 380.
Installation:
- Replace screw on engine mount.
Tightening torque, 22 11 6AZ in ENGINE AND GEARBOX SUSPENSION - TIGHTENING TORQUES .
- On bodies with M12 threads in the bushing for the engine mount, drill out the top hole to 14 mm diameter and 20 mm deep and surface-grind the contact surface for the bolt head at the bottom. Then paint the bare surfaces with primer.
