65 11 055 Removing and installing/replacing radio receiver (with board monitor)

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove CD-changer,

refer to 65 11 070 REMOVING AND INSTALLING/REPLACING CD-CHANGER

If necessary, remove GPS receiver module,

refer to 65 90 520 REMOVING AND INSTALLING/REPLACING RECEIVER MODULE FOR GLOBAL POSITIONING SYSTEM (GPS) (SALOON)

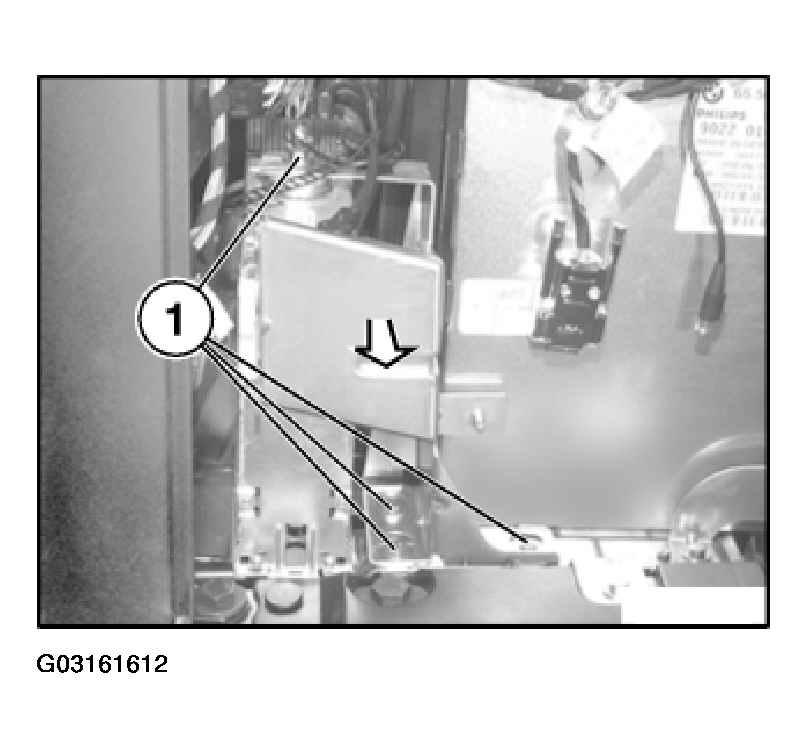

Unfasten screws (1), pull bracket slightly forwards and lift upwards to remove.

Fig 1: Unfastening Radio Receiver (With Board Monitor) Screws

Courtesy of BMW OF NORTH AMERICA, INC.

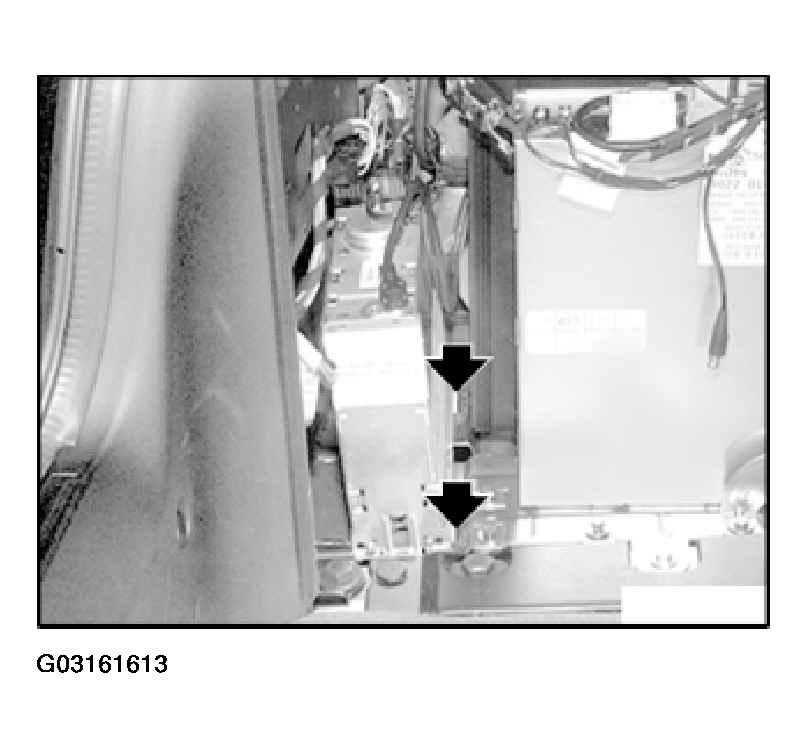

Pull receiver out of centring bores and remove connector.

Fig 2: Removing Radio Receiver

Courtesy of BMW OF NORTH AMERICA, INC.
