65 11 070 Removing and installing/replacing CD-changer

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Open flap in rear left side panel. Unfasten screws, raise CD-changer slightly and tilt outwards to remove.

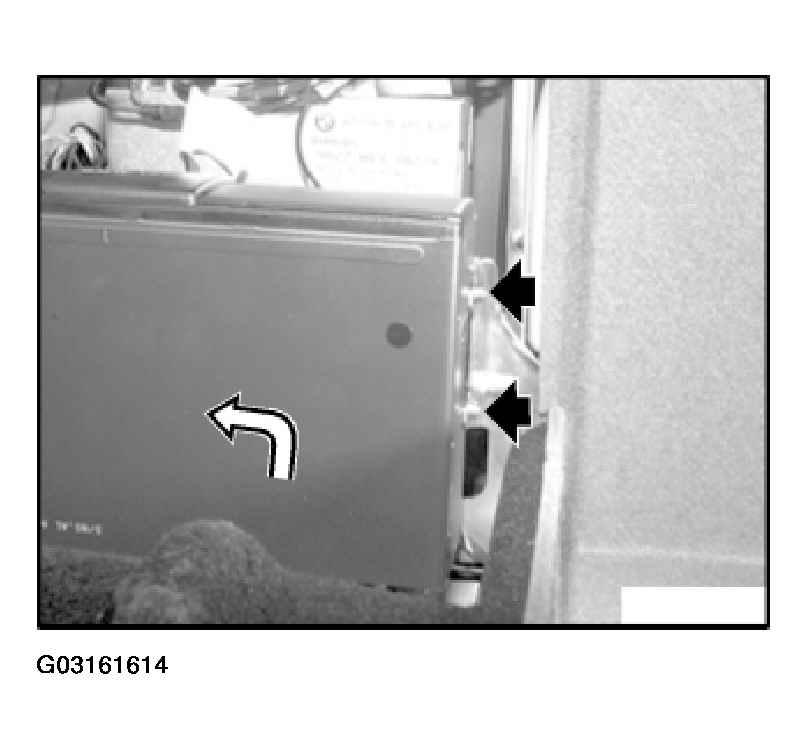

Fig 1: Removing CD-Changer

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off connectors.

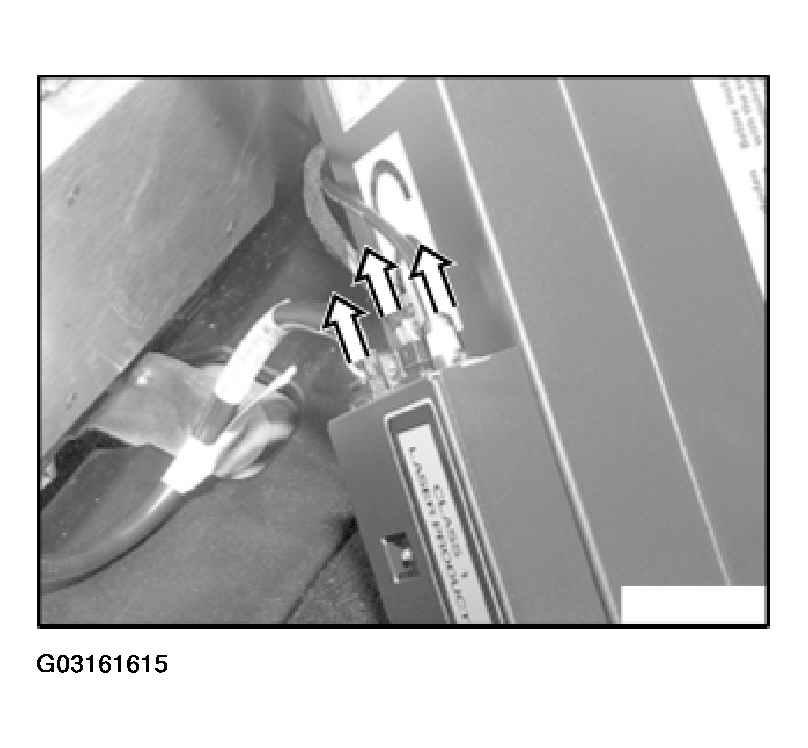

Fig 2: Disconnecting CD-Changer Connectors

Courtesy of BMW OF NORTH AMERICA, INC.
