65 90 520 Removing and installing/replacing receiver module for Global Positioning System (GPS) (saloon)
WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.
If necessary, remove CD-changer,
refer to 65 11 070 REMOVING AND INSTALLING/REPLACING CD-CHANGER
Open flap in rear left side panel.

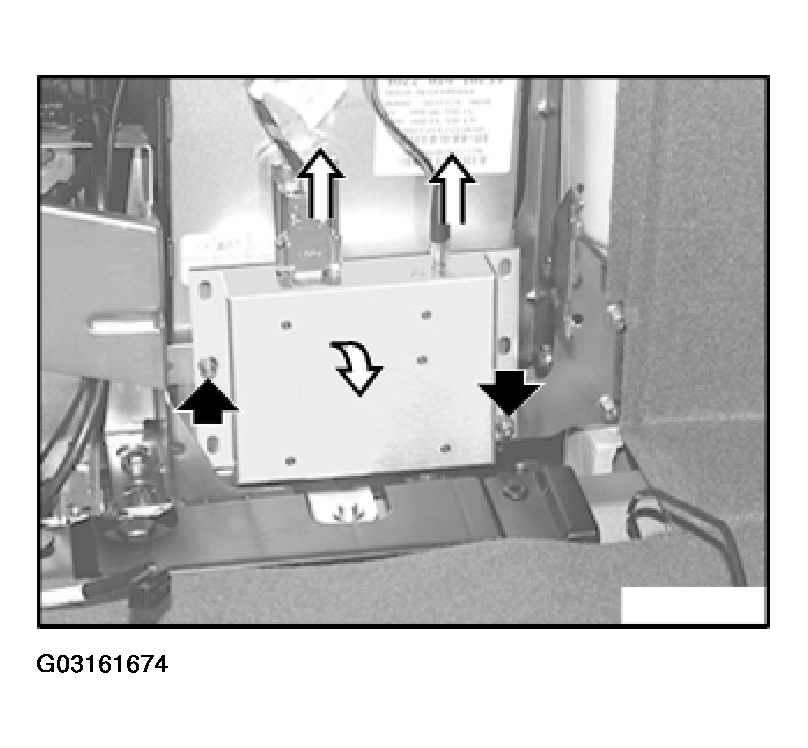

Disconnect connector, unfasten nuts and remove receiver module.
