64 11 222 Replacing limit switch for fan of heater/air conditioner

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

Remove panel on center console on right. See 51 16 200 REMOVING AND INSTALLING ODDMENTS TRAY

Remove cover from underside of glovebox. See 51 16 360 REMOVING AND INSTALLING RIGHT GLOVE BOX

Unfasten plug connection and disconnect.

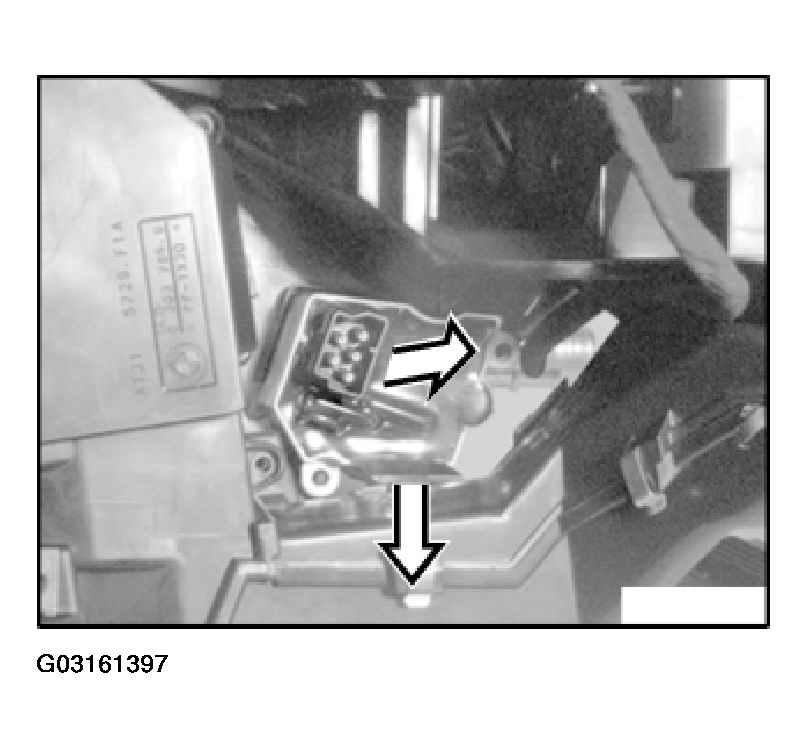

Fig 1: Disconnecting Limit Switch Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock limit switch for fan and pull out in direction of arrow.

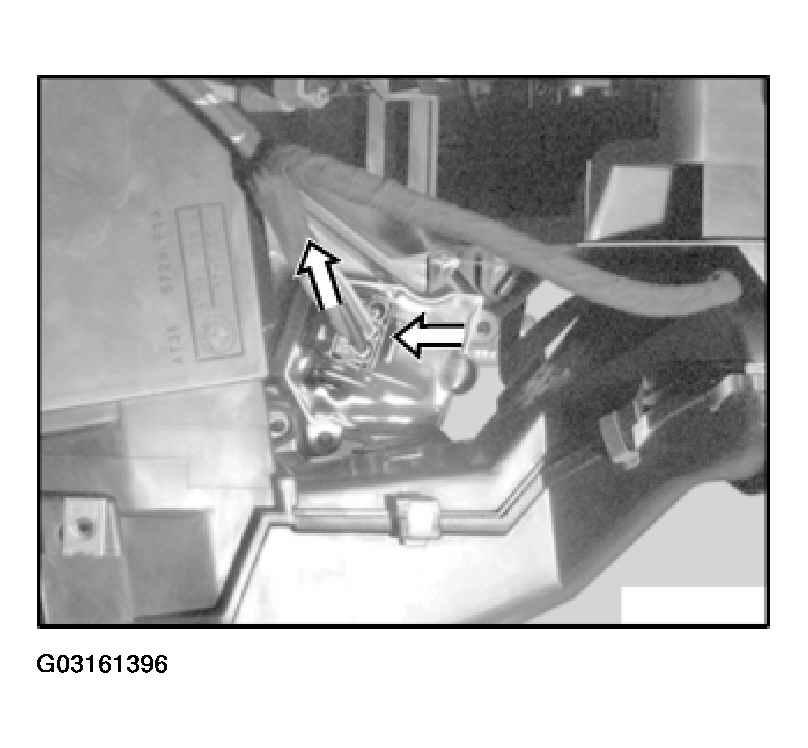

Fig 2: Removing Limit Switch

Courtesy of BMW OF NORTH AMERICA, INC.
