51 16 360 Removing and installing right glove box

WARNING: This page is about a different car, the 2003 BMW 530i, 2002 BMW 530i, and 2001 BMW 530i. However, it is still accessible from the selected car via links, so may be relevant.

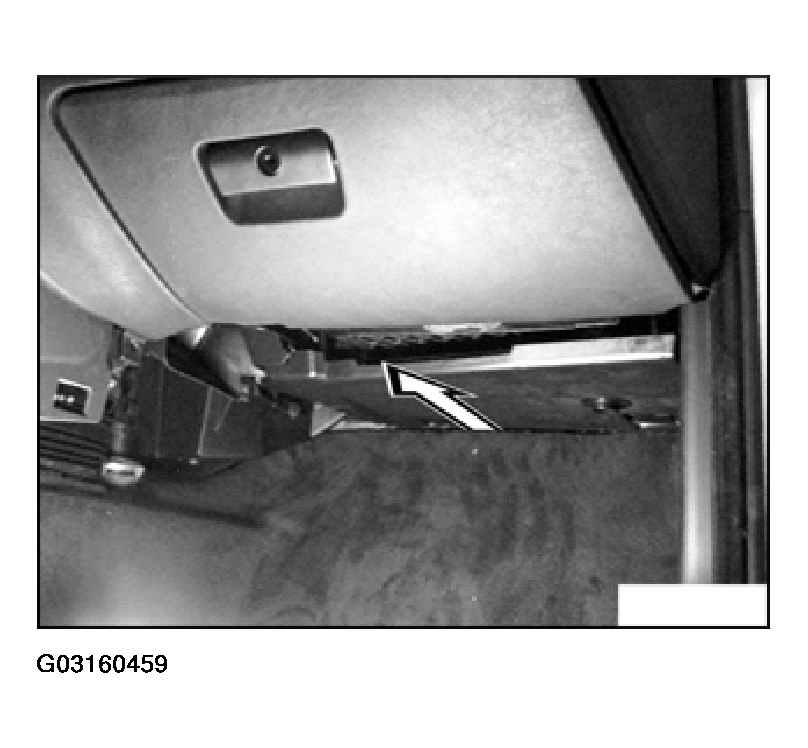

Pull trim panelling backwards to remove.

Fig 1: Removing Trim Panelling

Courtesy of BMW OF NORTH AMERICA, INC.

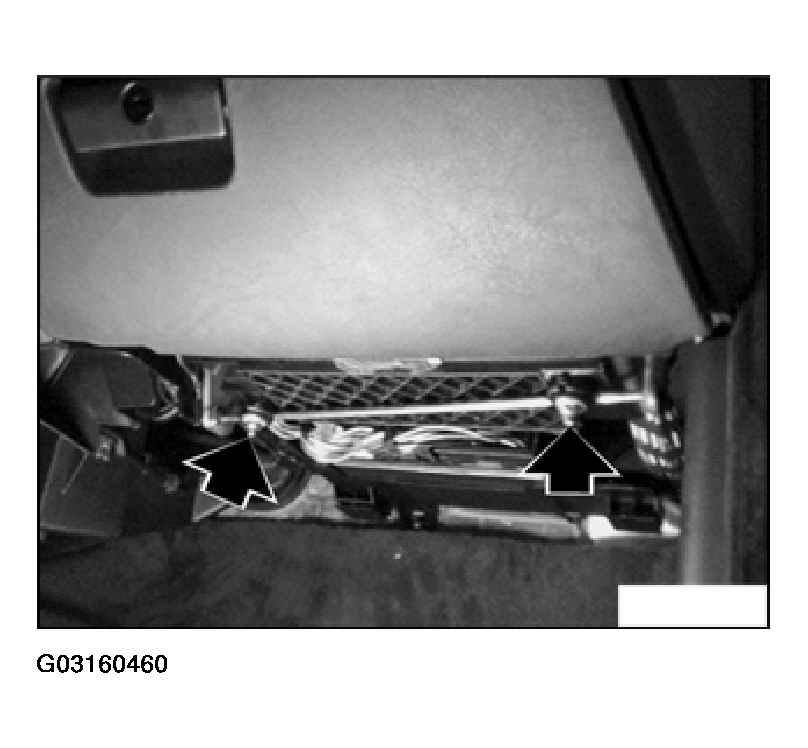

Loosen bolts.

Fig 2: Loosening Bolts At Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

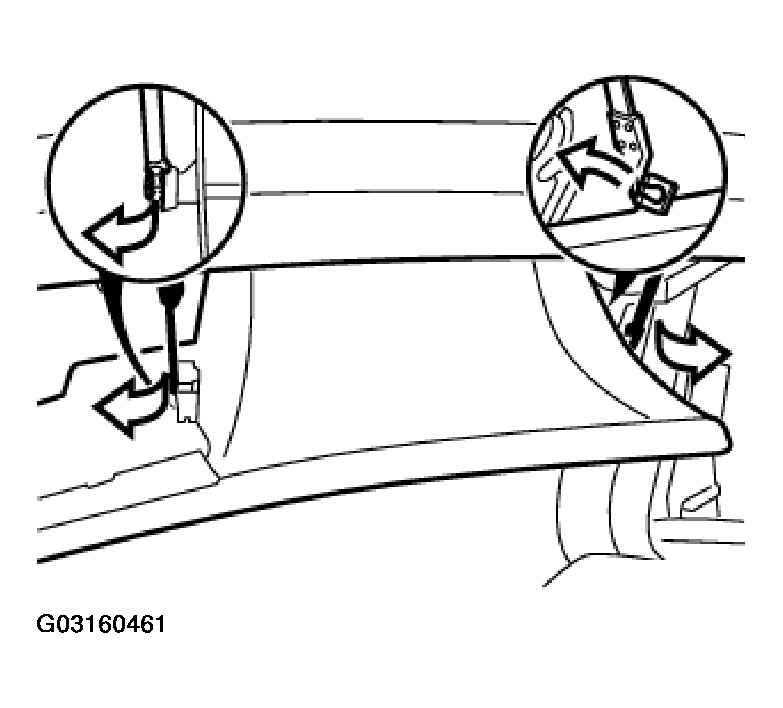

Unclip shock absorber and catch band. Pull glovebox backwards to remove.

Fig 3: Uncliping Shock Absorber And Catch Band

Courtesy of BMW OF NORTH AMERICA, INC.

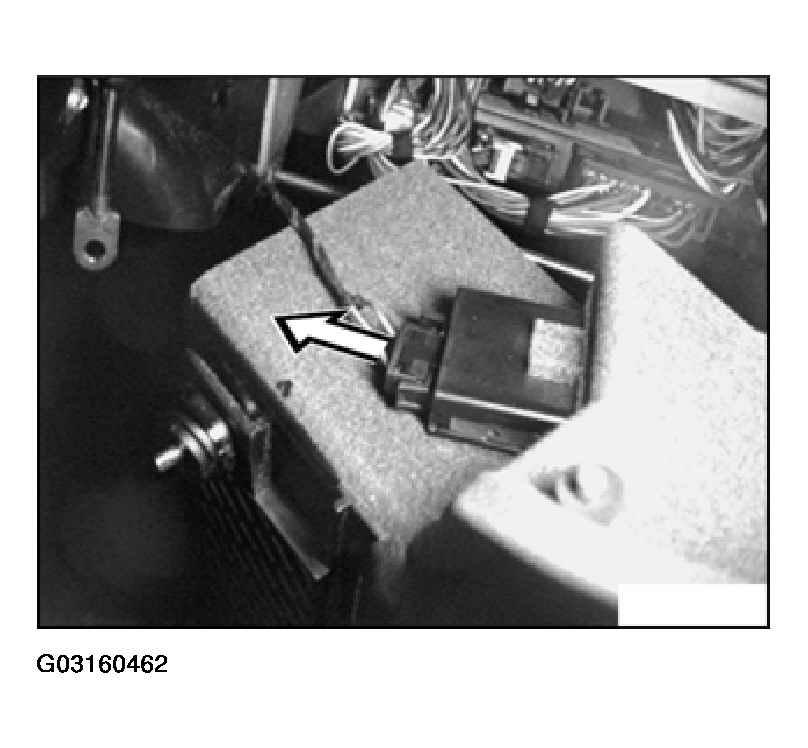

Twist glovebox, remove connector from accumulator light and remove glovebox.

Fig 4: Removing Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.
